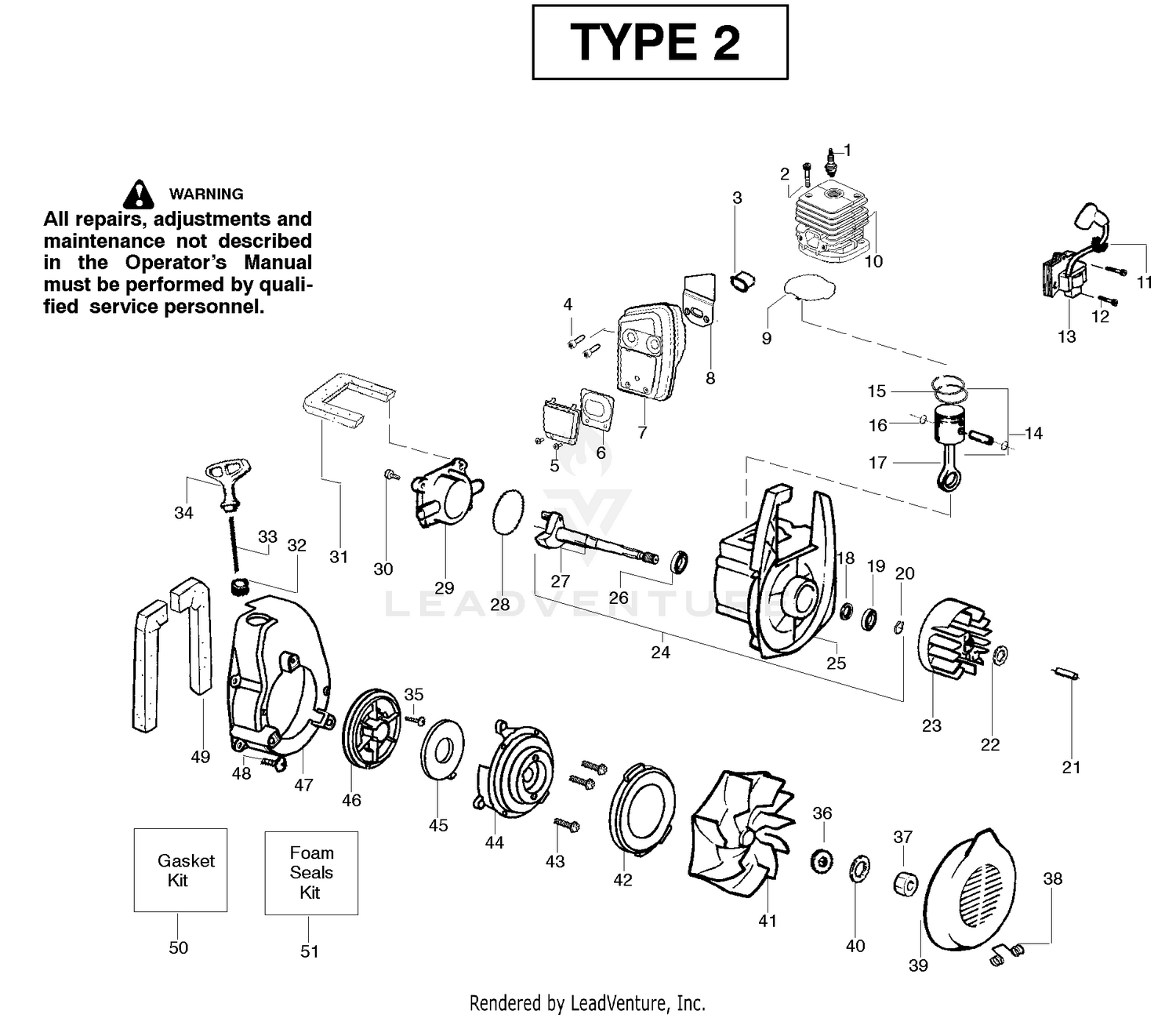

| Ref | Part Number | Description |
|---|
| 1 |
3-9034 |
DISCONTINUED Price: Call Us |
| 1 |
952030249 |
Spark Plug (RCJ-6Y) Price: $3.99 |
| 2 |
322-9 |
SCREW-HH Price: $3.09 |
| 2 |
530015953 |
Screw Price: $1.99 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
530055191 |
Insulator-Heat Price: $1.99 |
| 4 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 4 |
530016387 |
Screw-Muffler-Internal Price: $1.99 |
| 5 |
5-2907 |
DISCONTINUED Price: Call Us |
| 5 |
530015241 |
Screw Price: $1.99 |
| 6 |
5-2916 |
DISCONTINUED Price: Call Us |
| 7 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 8 |
3272-13 |
PIN-COTTER This part replaces 3272-14. Price: $0.25 |
| 8 |
530071458 |
Gasket-Baffle (kit) Price: $5.99 |
| 9 |
3256-39 |
WASHER-FLAT Price: $1.29 |
| 9 |
530071458 |
Gasket-Cylinder (kit) Price: $5.99 |
| 10 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 10 |
530071457 |
Kit-Cylinder Price: $11.99 |
| 11 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 11 |
530019182 |
Grommet-Ign. Module Price: $1.99 |
| 12 |
5-3910 |
DISCONTINUED Price: Call Us |
| 12 |
530016357 |
Screw-Ignition Module Price: $1.99 |
| 13 |
5-3913 |
DISCONTINUED Price: Call Us |
| 13 |
530035505 |
Ignition Module Price: $29.99 |
| 14 |
5-2913 |
DISCONTINUED Price: Call Us |
| 15 |
3220-2 |
NUT-JAM Price: $0.50 |
| 15 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 16 |
5-2908 |
DISCONTINUED Price: Call Us |
| 16 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 17 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 17 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 18 |
282-2 |
YOKE Price: $30.04 |
| 18 |
530071615 |
Kit-Crankcase Seal Price: $4.99 |
| 19 |
530055728 |
Bearing-Outer Price: $6.99 |
| 19 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
530015941 |
Retainer Ring-C'shaft Price: $1.99 |
| 21 |
322-3 |
SCREW-HH Price: $0.79 |
| 21 |
530016190 |
Spacer-Flywheel Price: $2.99 |
| 22 |
3217-26 |
NUT-HEX Price: $0.25 |
| 22 |
530015149 |
Washer Price: $1.99 |
| 23 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 23 |
530047534 |
FLYWHEEL ASSY This part replaces 530039209. Price: $22.99 |
| 24 |
3274-33 |
DISCONTINUED Price: Call Us |
| 25 |
5-3323 |
DISCONTINUED Price: Call Us |
| 26 |
530032125 |
Bearing-Inner Price: $11.99 |
| 27 |
323-39 |
SCREW-HH This part replaces 323-21. Price: $1.60 |
| 27 |
530012452 |
Assy-Crankshaft Price: $24.99 |
| 28 |
323-23 |
SCREW-HH Price: $2.07 |
| 28 |
530071458 |
O-ring-C/case (kit) Price: $5.99 |
| 29 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 29 |
530012443 |
Cover-Crankcase Price: $5.99 |
| 30 |
12-0530 |
Main Frame (Incl. Ref. 49) Price: Call Us |
| 30 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 31 |
5-1531 |
DISCONTINUED Price: Call Us |
| 31 |
530071459 |
Foam-219mm (kit) Price: $4.99 |
| 32 |
3290-212 |
WASHER-SPRING Price: $1.56 |
| 32 |
530029182 |
Eyelet-Flange Price: $1.99 |
| 33 |
256-159 |
BUSHING Price: $24.63 |
| 34 |
3-8775 |
DISCONTINUED Price: Call Us |
| 34 |
530054834 |
Handle-Starter Price: $1.99 |
| 35 |
3-8778 |
DISCONTINUED Price: Call Us |
| 35 |
530016326 |
Screw-Rope Price: $1.99 |
| 36 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 36 |
530016240 |
Washer-Belleville Price: $1.99 |
| 37 |
322-6 |
SCREW-HH Price: $0.45 |
| 37 |
530626605 |
Nut Price: $1.99 |
| 38 |
5-4403 |
DISCONTINUED Price: Call Us |
| 38 |
530402043 |
Spring-Return Cover Price: $2.99 |
| 39 |
3-9035 |
DISCONTINUED Price: Call Us |
| 39 |
530049313 |
Inlet Door Price: $4.99 |
| 40 |
5-4401 |
DISCONTINUED Price: Call Us |
| 40 |
530016279 |
Washer-Flat Price: $1.99 |
| 41 |
217-34 |
BOLT WHEEL RETAINER Price: $13.47 |
| 41 |
530069817 |
Assy-Impeller Price: $12.99 |
| 42 |
3212-2 |
SCREW-HH Price: $3.60 |
| 42 |
530056625 |
Seal-Ring Price: $3.99 |
| 43 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 43 |
530016349 |
Screw Price: $1.99 |
| 44 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 44 |
530055101 |
Housing-Pulley Price: $6.99 |
| 45 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 45 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 46 |
3273-32 |
DISCONTINUED Price: Call Us |
| 46 |
545150201 |
PULLEY STARTER This part replaces 530071466. Price: $8.99 |
| 47 |
3-9274 |
SPACER Price: $6.33 |
| 47 |
530055102 |
Fan Housing Price: $14.99 |
| 48 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 48 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 49 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
| 49 |
530071459 |
Foam-182mm (kit) Price: $4.99 |
| 50 |
5-1183 |
DISCONTINUED Price: Call Us |
| 51 |
3-8826 |
DISCONTINUED Price: Call Us |
| 52 |
3-8844 |
DISCONTINUED Price: Call Us |
| 53 |
3-8845 |
DISCONTINUED Price: Call Us |
| 54 |
3218-5 |
NUT-JAM Price: $0.27 |
| 55 |
5-4002 |
DISCONTINUED Price: Call Us |
| 56 |
5-2568 |
DISCONTINUED Price: Call Us |
| 57 |
325-13 |
SCREW-HH Price: $3.57 |
| 58 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 59 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 60 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 61 |
3273-30 |
DISCONTINUED Price: Call Us |
| 62 |
23-4680 |
BRAKE BAND ASM Price: $229.48 |
| 63 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 64 |
5-4693 |
CHAIN Price: $30.29 |
| 65 |
323-11 |
SCREW-HH Price: $1.08 |
| 66 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 67 |
5-2567 |
DISCONTINUED Price: Call Us |
| 68 |
3-8936 |
DISCONTINUED Price: Call Us |
| 69 |
3-9033 |
DISCONTINUED Price: Call Us |
