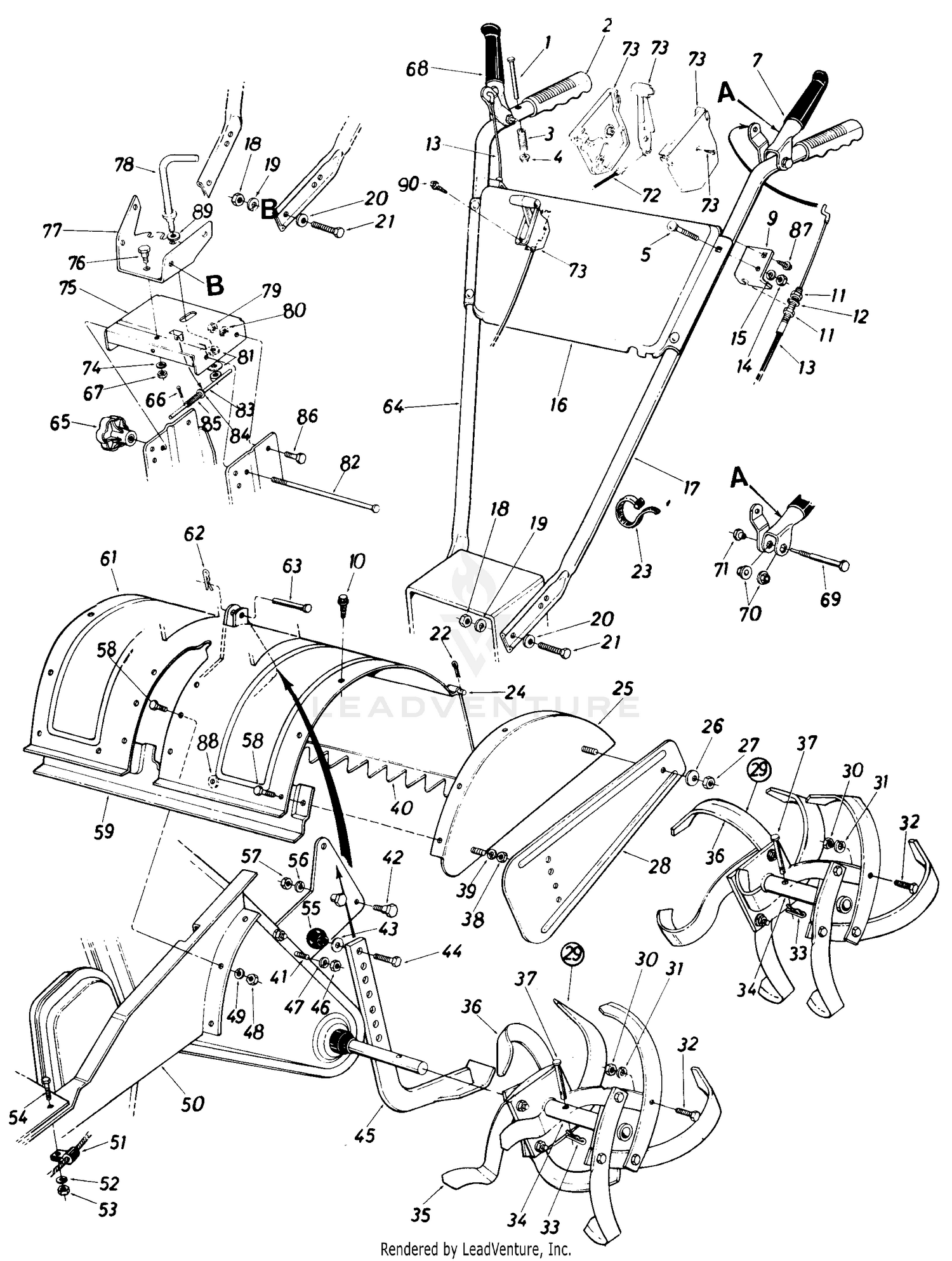

| Ref | Part Number | Description |
|---|
| 1 |
711-0750 |
Clevis Pin 1/4" Dia. x 2.25" Price: Call Us |
| 2 |
720-04083 |
Grip This part replaces 720-0180. Price: $12.95 |
| 3 |
732-0442 |
COMPRESSION SPRING Not Available Price: |
| 4 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 5 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 9 |
15093 |
BRACKET-CL Not Available Price: |
| 10 |
710-0607 |
Hex Wash. S-Tap Scr. 5/16-18 x.62" Lg. Price: $6.06 |
| 11 |
712-0256 |
HEX JAM NUT 5/16-24 Not Available Price: |
| 12 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 13 |
946-0484 |
Tine Clutch Control Cable This part replaces 746-0484. Price: $58.36 |
| 14 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 15 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 16 |
784-0036 |
PANEL Not Available Price: |
| 18 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 19 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 20 |
736-0105 |
Bell-Wash. 3/8" I.D. Price: $3.96 |
| 21 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 22 |
714-0507 |
Cotter Pin 3132" Dia. x 314" Price: $3.93 |
| 23 |
725-0157 |
Cable Tie Price: $3.46 |
| 25 |
14989 |
End Cover Ass'y.-L.H. Price: Call Us |
| 26 |
736-0242 |
Bell-Wash. 5/16" I.D. Price: $3.75 |
| 27 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 30 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 31 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 32 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 33 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 35 |
1916946001 |
Tine 12" R.H. Not Available This part replaces 742-0106. Price: |
| 36 |
742-0105 |
TINE 12 L.H. Not Available Price: |
| 37 |
711-0415 |
Clevis Pin 3/8" Dia. Price: $4.04 |
| 38 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 39 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 41 |
710-0736 |
BOLT-HEX 5/16-18X1 Not Available Price: |
| 42 |
738-0507B |
Shoulder Bolt .50" Dia. This part replaces 738-0507. Price: $3.86 |
| 43 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 44 |
710-0216 |
Hex Bolt 3/8-16 x 314" Lg.* Price: $3.93 |
| 45 |
786-0120-0637 |
Depth Bar This part replaces 14992. Price: $58.29 |
| 46 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 47 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 48 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 49 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 51 |
726-0175 |
CLAMP Not Available Price: |
| 52 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 53 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 54 |
710-0118 |
Hex Bolt 5/16-18 x 314" Lg. Price: $3.76 |
| 55 |
920-0232 |
Knob This part replaces 720-0165. Price: $9.11 |
| 56 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 57 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 58 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 62 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 63 |
711-0415 |
Clevis Pin 3/8" Dia. Price: $4.04 |
| 69 |
938-0560 |
Shoulder Bolt .374 Dia. x 1.53" Lg. This part replaces 738-0560. Price: $9.09 |
| 70 |
741-0402 |
BEARING-FL Not Available Price: |
| 71 |
938-0561 |
SHOULDER NUT Not Available This part replaces 738-0561. Price: |
| 73 |
831-0796A |
Throttle Control Box Ass'y. This part replaces 831-0692. Price: $20.36 |
| 87 |
710-0599 |
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. Price: $3.86 |
| 88 |
736-0242 |
Bell-Wash. 5/16" I.D. Price: $3.75 |
