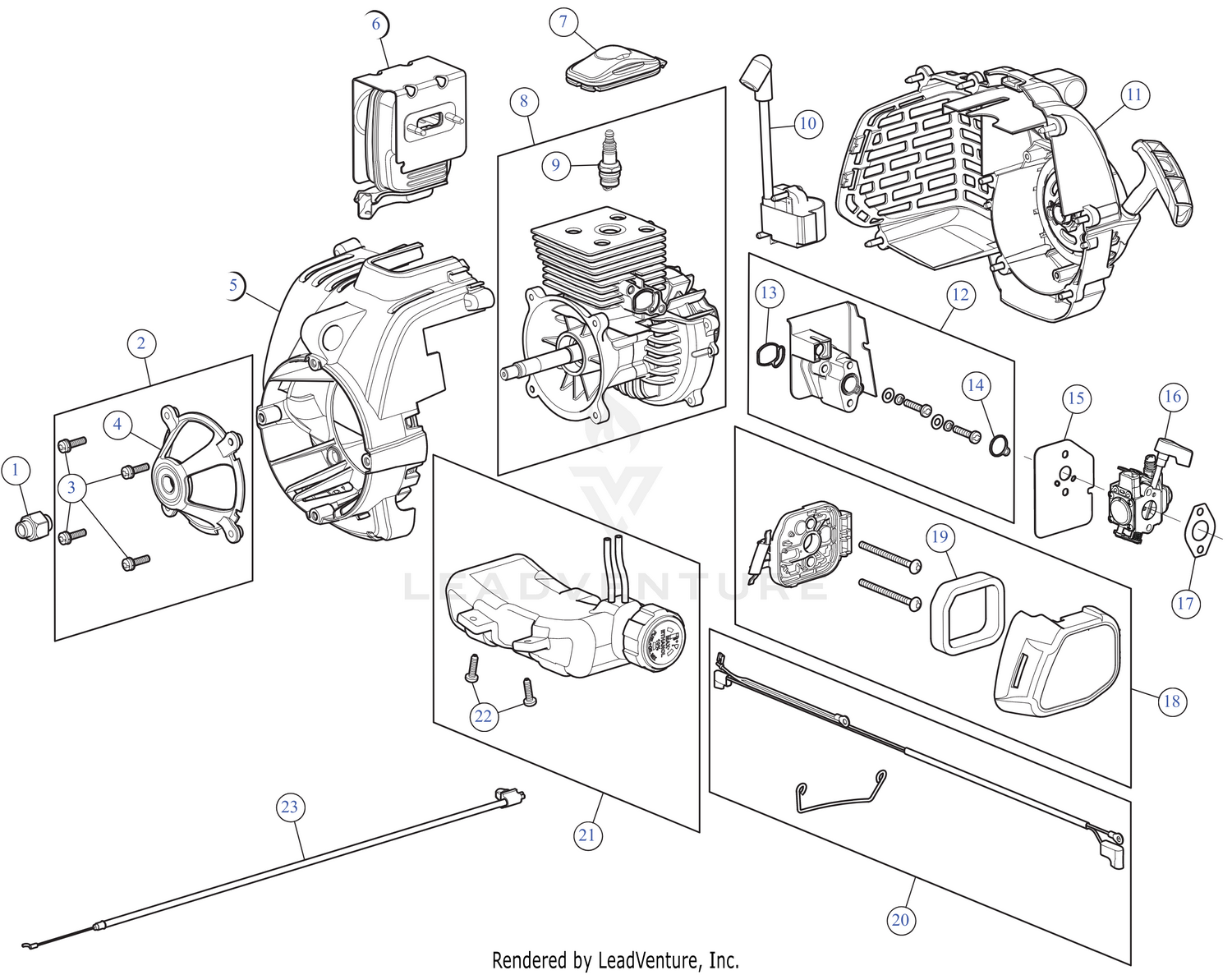

Engine Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 753-05705 | FLYWHEEL ADPT Price: $8.05 |
| 3 | 710-04742A | SCREW M5X0.8-20 Price: $2.98 |
| 4 | 753-08281 | BEARING HOLDER Not Available Price: |
| 5 | 753-08282 | ENGINE COVER FRT Price: $13.57 |
| 6 | 751-14556 | MUFFLER ASSEMBLY Price: $22.61 |
| 7 | 753-06362 | SPARK PLUG COVER Price: $2.88 |
| 9 | 753-06847 | SPARK PLUG Price: $6.35 |
| 10 | 753-08284 | MODULE BLOWER Not Available Price: |
| 11 | 753-08286 | COVER ASSEMBLY EGINE RR Not Available Price: |
| 13 | 753-06184 | O-RING Price: $2.93 |
| 14 | 753-06185 | O-RING Price: $2.93 |
| 15 | 721-04882 | CARBURETOR GASKET Price: $2.59 |
| 16 | 753-06288 | CARBURETOR Price: $32.65 |
| 17 | 753-06253 | GASKET CARB Price: $2.98 |
| 18 | 753-06500 | AIRCLEANER COVER ASSEMBLY Price: $5.53 |
| 19 | 753-06417 | AIR FLITER Price: $2.30 |
| 20 | 753-08289 | WIRE LEAD BLOWER Price: $8.31 |
| 22 | 791-181930 | SCREW:10-6 x .75 Price: $5.95 |
