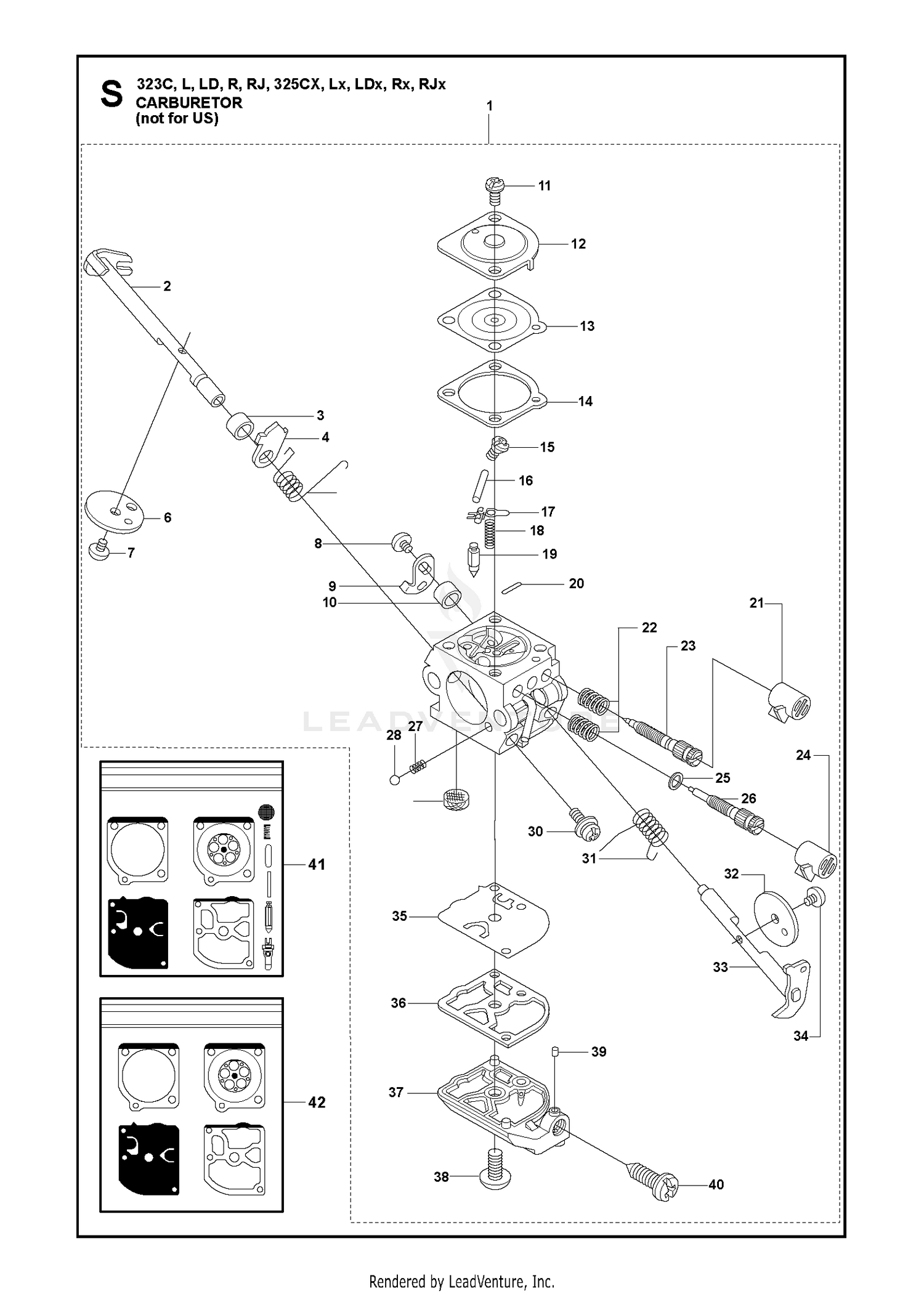

CARBURETOR, NOT FOR US
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 588171156 | KIT CARB This part replaces 503283401. Price: $39.99 |
| 2 | 537370301 | CHOKE CAP Price: $6.99 |
| 3 | 503481901 | BUSHING Price: $5.99 |
| 4 | 537049001 | LEVER Price: $2.99 |
| 5 | 537021001 | SPRING Price: $2.99 |
| 6 | 537370301 | CHOKE CAP Price: $6.99 |
| 7 | 503481801 | SCREW Price: $2.99 |
| 8 | 503479001 | SCREW Price: $2.99 |
| 9 | 537019801 | LEVER Price: $3.99 |
| 10 | 503478901 | SPACER Price: $3.99 |
| 11 | 503480501 | SCREW Price: $2.99 |
| 12 | 503974301 | COVER Price: $5.99 |
| 13 | 537048901 | DIAPHRAGM Price: $11.99 |
| 14 | 537020401 | GASKET Price: $3.99 |
| 15 | 503480101 | SCREW Price: $2.99 |
| 16 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 17 | 503665901 | LEVER Price: $3.99 |
| 18 | 537273401 | SPRING This part replaces 537020301. Price: $4.99 |
| 19 | 503479701 | INLET NEEDLE Price: $8.99 |
| 20 | 537020801 | PIN Price: $2.99 |
| 21 | 537021601 | CAP Price: $2.99 |
| 22 | 503994301 | SPRING This part replaces 503480801. Price: $2.99 |
| 23 | 537127801 | LOW SPEED NEEDLE Price: $14.99 |
| 24 | 537021601 | CAP Price: $2.99 |
| 25 | 503974001 | WASHER Price: $2.99 |
| 26 | 537020601 | NEEDLE HIGH SPEED Price: $3.99 |
| 27 | 537012601 | SPRING Price: $2.99 |
| 28 | 537012501 | BALL Price: $2.99 |
| 29 | 503535701 | STRAINER Price: $3.99 |
| 30 | 503755301 | SCREW * Price: $2.99 |
| 31 | 537019701 | SPRING THROTTLE Price: $2.99 |
| 32 | 537019901 | THROTTLE FLAP Price: $3.99 |
| 33 | 537019601 | SHAFT Price: $6.99 |
| 34 | 503479201 | SCREW Price: $2.99 |
| 36 | 537020101 | GASKET Price: $3.99 |
| 37 | 537020201 | COVER Price: $19.99 |
| 38 | 503479601 | SCREW Price: $2.99 |
| 39 | 503481101 | PLUG Price: $3.99 |
| 40 | 537020701 | SCREW Price: $6.99 |
| 41 | 531004553 | CARBURETOR KIT (ZAMA RB69) Price: $17.99 |
| 42 | 531004552 | GASKET KIT (ZAMA GND39) Price: $9.99 |
