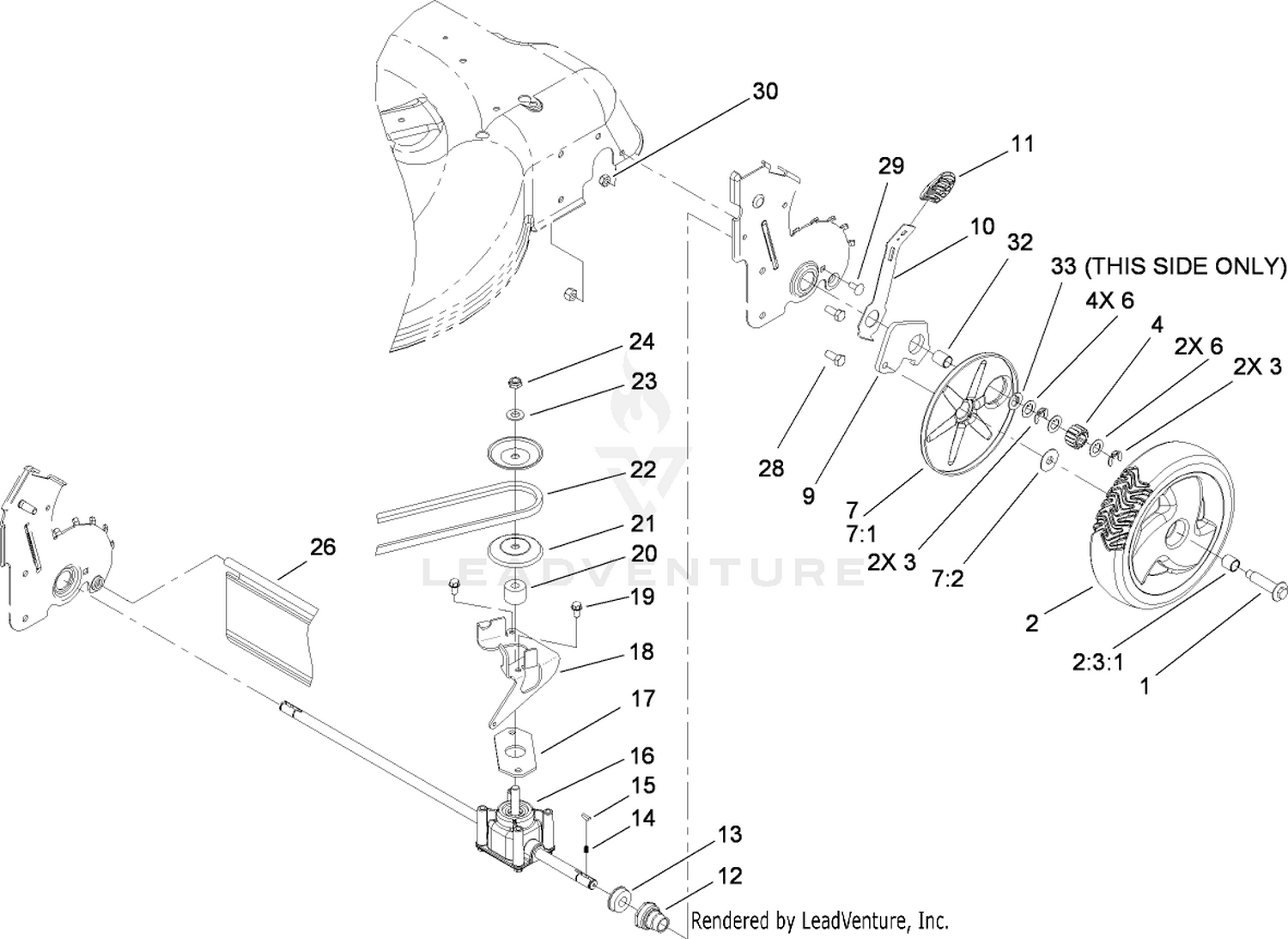

| Ref | Part Number | Description |
|---|
| 1 |
614650 |
BOLT-SHOULDER Price: $3.28 |
| 2 |
105-3036 |
WHEEL GEAR ASM Price: $40.48 |
| 3 |
65-2720 |
RING-RETAINING,CLIP Price: $0.99 |
| 4 |
105-3040 |
GEAR-PINION, 15T Price: $3.28 |
| 6 |
105-6840 |
WASHER-THRUST Price: $1.29 |
| 7 |
127-6840 |
WHEEL COVER ASM This part replaces 110-1792. Price: $4.37 |
| 9 |
108-9781 |
ARM-PIVOT, REAR Price: $6.55 |
| 10 |
108-9780 |
ARM-SPRING Price: $6.67 |
| 11 |
105-3042 |
KNOB-LEVER, HOC Price: $3.28 |
| 12 |
108-9779 |
RETAINER-BUSHING, HOC Price: $9.09 |
| 13 |
104-8699 |
BEARING-BALL Price: $3.28 |
| 14 |
39-9650 |
SPRING-COMPRESSION Price: $2.01 |
| 15 |
612066 |
KEY Price: $1.74 |
| 16 |
106-3956 |
TRANSMISSION ASM Price: $73.32 |
| 17 |
108-9756 |
GASKET-GEARBOX Price: $0.77 |
| 18 |
106-6809-03 |
BRACKET-PIVOT Price: $7.52 |
| 19 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 20 |
92-5791 |
SPACER Price: $9.99 |
| 21 |
100-1176 |
PULLEY-HALF Price: $5.58 |
| 22 |
91-2258 |
BELT-V Price: $17.50 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
3296-5 |
NUT-HEX Price: $3.09 |
| 26 |
114-1585 |
SHIELD-TRAILING Price: $15.31 |
| 28 |
322-4 |
SCREW-HH Price: $0.35 |
| 29 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 30 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 32 |
108-9782 |
BUSHING-SLEEVE Price: $2.32 |
