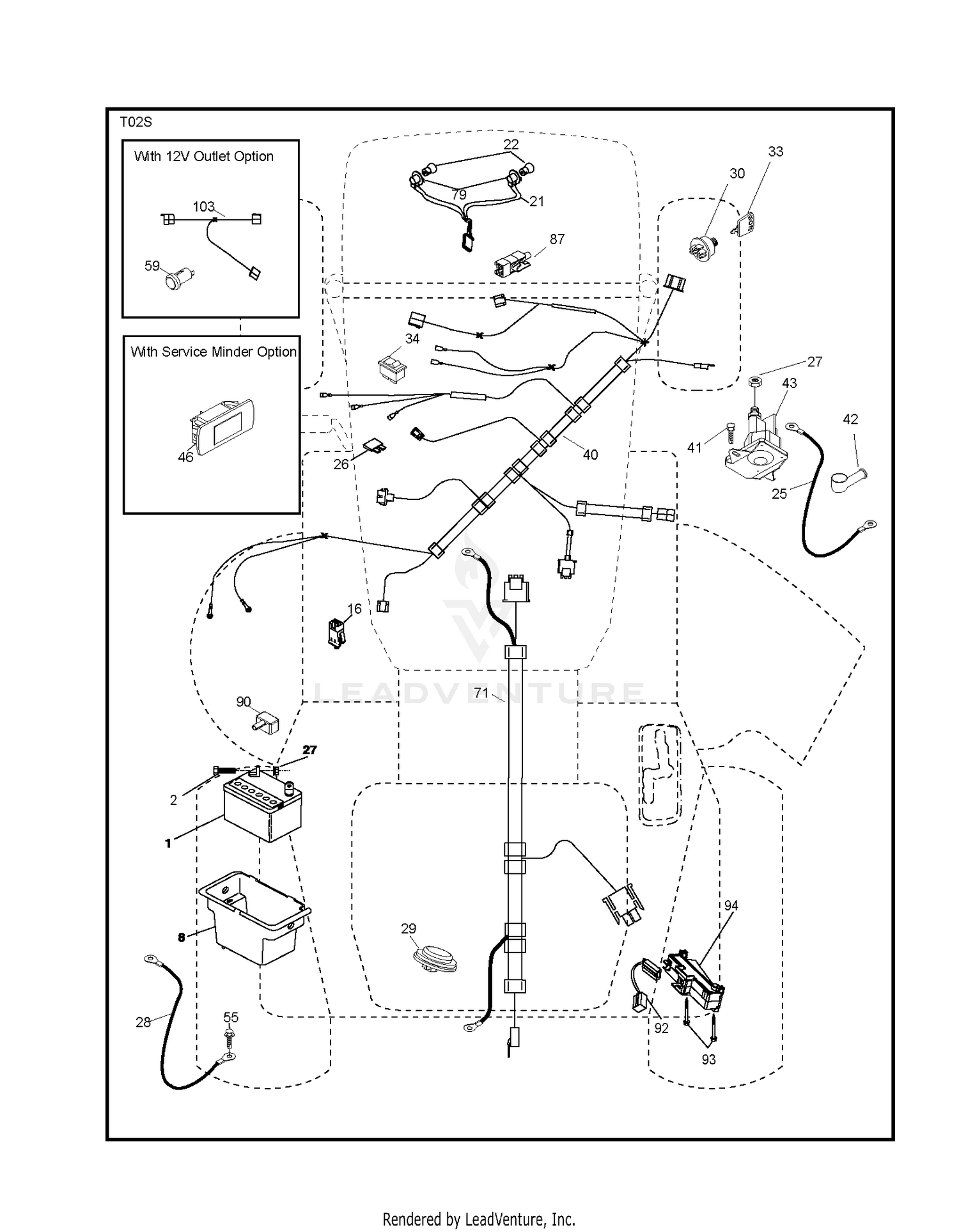

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $139.99 |
| 1 |
631776A |
SHAFT & LEV This part replaces 631776. Price: $12.00 |
| 2 |
631970 |
RET SPRING Price: $3.00 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
94-2703 |
PLUG Price: $1.86 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 3 |
631778 |
SHUTTER Price: $1.20 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
630766 |
SPRING Price: $1.25 |
| 5A |
630738 |
SPRING Price: $1.25 |
| 6 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 6 |
99-2097 |
DETENT Price: $12.71 |
| 7 |
114-9396 |
CAPSCREW-HH Price: $2.22 |
| 7 |
631779 |
SHAFT & LEV Price: $5.16 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $11.99 |
| 8 |
631780B |
RET SPRING This part replaces 631780A. Price: $1.25 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
631753 |
SHUTTER Price: $1.25 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
630748 |
WELCH PLUG Price: $1.17 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
631027 |
WELCH PLUG Price: $1.17 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
631022 |
CLIP Price: $1.25 |
| 14 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 15 |
112-8908-01 |
BEDBAR Price: $402.52 |
| 15 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 16 |
631867 |
FLOAT BOWL Price: $2.34 |
| 17 |
147-1249 |
BEDKNIFE-RM 27IN STD This part replaces 114-9388. Price: $84.10 |
| 21 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $29.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 22 |
631583 |
POWER SCREW Price: $10.18 |
| 23 |
630740 |
O RING Price: $1.49 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 24 |
630898 |
ADJ SCREW Price: $1.69 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 25 |
532412894 |
CABLE.STARTER.6GA.BL/RED.14. Price: $11.99 |
| 25 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 27 |
119-0614-01 |
WEIGHT-END Price: $98.48 |
| 27 |
631184 |
WASHER Price: $1.25 |
| 27 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $19.99 |
| 28 |
631972 |
WASHER Price: $1.25 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $24.99 |
| 29 |
631183 |
WASHER This part replaces 631971. Price: $1.25 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 30 |
630739 |
WASHER Price: $1.25 |
| 31 |
632527 |
FUEL FITTING This part replaces 631775. Price: $6.03 |
| 32 |
137-8460 |
REEL+,FWY(27)8 BLD This part replaces 115-8275. Price: $843.92 |
| 33 |
532411933 |
KEY.CHAIN.BLISTER.PACK.GEN.USA Price: $6.99 |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 36 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 40 |
532401098 |
HARNESS IGN. DASH Price: $74.99 |
| 41 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042801 |
SOLENOID.STARTER.BRASS.PLUNGER This part replaces 532192507. Price: $7.99 |
| 55 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
532400449 |
HARNESS.IGN.CHASS.TEX.REAR.BAT Price: $24.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $11.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
532192540 |
SCREW.PLASTITE Price: $2.99 |
