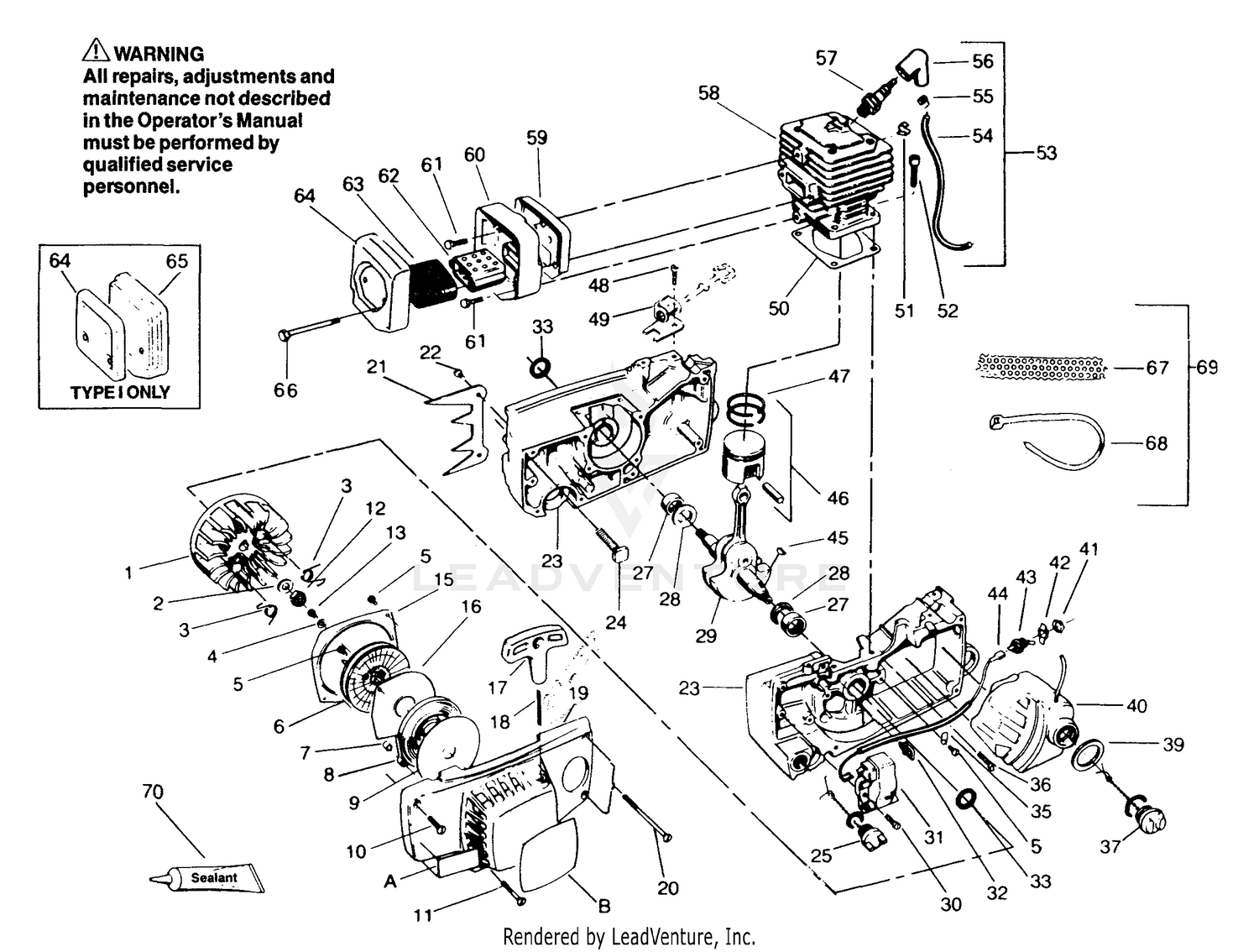

| Ref | Part Number | Description |
|---|
| 1 |
242-72 |
DUST CAP(DICO 6296) This part replaces 217-51. Price: $15.29 |
| 2 |
1626 |
Washer-Flywheel Price: Call Us |
| 2 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 3 |
23817 |
Spring- Starter Dog Price: Call Us |
| 3 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 4 |
15123 |
Washer- Starter Pulley Price: Call Us |
| 4 |
217-50 |
DISCONTINUED Price: Call Us |
| 5 |
1726 |
Screw - 32 x 5/16 - Hex Hd. - Disc. Mounting (also Air Baffle & Clamp Lead) Price: Call Us |
| 5 |
302-41 |
DISCONTINUED Price: Call Us |
| 6 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 6 |
26371 |
Pulley Starter Price: Call Us |
| 7 |
24329 |
Bushing Recoil Spring Price: Call Us |
| 7 |
254-78 |
BEARING-CONE Price: $12.22 |
| 8 |
253-111 |
SEAL-OIL Price: $6.87 |
| 8 |
42051 |
Spring- Starter Recoil Price: Call Us |
| 9 |
3-5557 |
DISCONTINUED Price: Call Us |
| 9 |
42053 |
Disc. Recoil Spring-Outer Price: Call Us |
| 10 |
15364 |
Screw -10-24 x 1 - Oval Hd. Fan Housing-(Top Front) Price: Call Us |
| 10 |
214-230 |
DISCONTINUED Price: Call Us |
| 11 |
15365 |
Screw-10-24x1-3/8-Fan Housing (Lower Front) Price: Call Us |
| 11 |
3-4676 |
DISCONTINUED Price: Call Us |
| 12 |
1722 |
Flywheel Nut 3/8-24 Price: Call Us |
| 12 |
3219-2 |
NUT-HEX Price: $0.37 |
| 13 |
15036 |
Screw-10-24 x 1/2 Starter Pulley Price: Call Us |
| 13 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 14 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 15 |
24232 |
Air Baffle Price: Call Us |
| 15 |
5-1800 |
DISCONTINUED Price: Call Us |
| 16 |
3229-4 |
SCREW-CARR Price: $0.34 |
| 16 |
42054 |
Disc. Recoil Spring - Inner Price: Call Us |
| 17 |
3210-9 |
SCREW-HH Price: $0.61 |
| 17 |
42056 |
Handle Starter Rope Price: Call Us |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 18 |
69233 |
Rope Kit Price: Call Us |
| 19 |
12034 |
Fan Housing Assembly Price: Call Us |
| 19 |
3219-3 |
NUT-HEX Price: $0.34 |
| 20 |
15366 |
Screw-10-24 x 1/8 Fan Housing (Rear) Price: Call Us |
| 20 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 21 |
241-69 |
Wheel Disc Less Valve Hole Price: Call Us |
| 21 |
24476 |
Spur Price: Call Us |
| 22 |
15434 |
Screw-10-24 x 9/16 Hex Hd. - Spur Price: Call Us |
| 22 |
232-8 |
DISCONTINUED Price: Call Us |
| 23 |
231-17 |
DISCONTINUED Price: Call Us |
| 24 |
30039 |
Kit- Bar Stud Replacement (5/16") Price: Call Us |
| 24 |
3211-2 |
SCREW-HH Price: $2.17 |
| 25 |
241-70 |
DISCONTINUED Price: Call Us |
| 27 |
32051 |
Bearings-Crankshaft Price: Call Us |
| 28 |
15354 |
Thrust Washers-Crankshaft Price: Call Us |
| 30 |
15425 |
Screw-10-24 x 7/8-Module Mnt. Price: Call Us |
| 32 |
24334 |
Clamp - High Tension Lead Crankcase Price: Call Us |
| 35 |
23661 |
Clamp-Lead Price: Call Us |
| 36 |
15238 |
Screw -10-24-Fil. Hd. - Crankcase Price: Call Us |
| 41 |
23575 |
Nut - Switch Mounting Price: Call Us |
| 42 |
24858 |
Plate - Ignition Switch Price: Call Us |
| 43 |
23732 |
Switch-Toggle Price: Call Us |
| 44 |
39115 |
Leadwire-Switch Price: Call Us |
| 45 |
2595 |
Key-Flywheel Price: Call Us |
| 47 |
26003 |
Rings-Piston Price: Call Us |
| 48 |
15368 |
Screw-10-24 x 3/8 Fil. Hd. Choke Bracket Price: Call Us |
| 49 |
10347 |
Bracket & Bushing Assembly Price: Call Us |
| 50 |
19129 |
Cylinder Gasket Price: Call Us |
| 51 |
15195 |
Clip- High Tension Lead Cylinder Price: Call Us |
| 54 |
39096 |
High Tension Lead Price: Call Us |
| 55 |
39071 |
Connector- Spark Plug Price: Call Us |
| 56 |
39097 |
Boot- Spark Plug Price: Call Us |
| 57 |
30073 |
Spark Plug Price: Call Us |
| 58 |
12068 |
Cylinder Price: Call Us |
| 59 |
24388 |
Back Plate-Muffler Price: Call Us |
| 60 |
26059 |
Muffler Body Price: Call Us |
| 61 |
15374 |
Screw-1/2-24 - x 1/2 Hex Hd. Muffler Body to Cylinder Price: Call Us |
| 62 |
24384 |
Diffuser-Muffler Price: Call Us |
| 63 |
24385 |
Screen- Spark Arrestor Price: Call Us |
| 64 |
24391 |
Muffler Cover Type I Price: Call Us |
| 64 |
26800 |
Muffler Cover Type II Price: Call Us |
| 65 |
24392 |
Shield Muffler -Type I only Price: Call Us |
| 66 |
15375 |
Screw-1/4-20 x 2 1/2 Hex Cap - Muffler Cover Price: Call Us |
