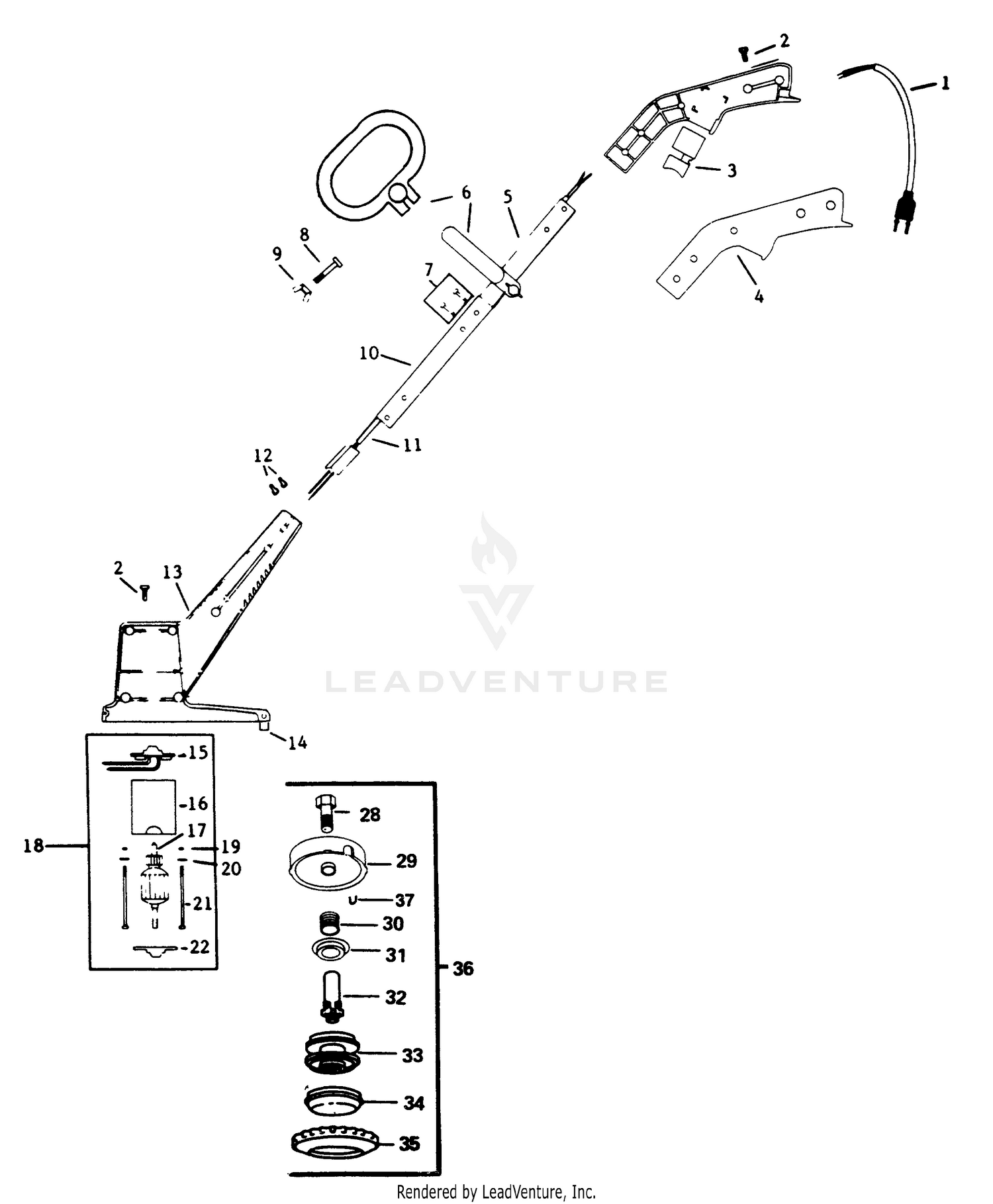

TRIMMER ASSEMBLY — Parts Catalog

Ref	Part Number	Description
1	530090866	POWER CORD PIGTAIL Price: $3.33
2	530090827	SCREW Price: $3.33
3	530090824	SWITCH Price: $3.33
4	530092707	TRIGGER HANDLE (SET ONLY) Price: $3.33
5	530092708	UPPER HANDLE TUBE Price: $3.33
6	530092709	ASSIST HANDLE Price: $3.33
7	530092628	SCREW Price: $3.33
8	530092061	BOLT Price: $3.33
9	530092049	WING NUT Price: $3.33
10	530092711	LOWER HANDLE TUBE Price: $3.33
12	530090876	CONNECTOR Price: $3.33
13	530092713	MOTOR HOUSING (SET ONLY) Price: $3.33
14	530090874	TAIL INTERFERENCE BLADE Price: $1.99
15	38-6250	DISCONTINUED Price: Call Us
15	530092714	END BELL w/BRUSHES AND SPRINGS Price: $3.33
16	530092715	FIELD ASSEMBLY Price: $32.99
17	530092716	ARMATURE Price: $3.33
18	530092717	MOTOR (COMPLETE) Price: $3.33
19	530091333	NUT Price: $3.33
20	530092718	LOCK WASHER Price: $3.33
21	530092719	SCREW Price: $3.33
22	530092721	ENDBELL, OUTPUT Price: $3.33
24	3-8721	DISCONTINUED Price: Call Us
28	530092726	DRIVE ADAPTOR Price: $3.33
29	530092673	HUB w/LINE SAVER Price: $3.33
30	530340007	Spring This part replaces 530092067. Price: $1.99
31	530328929	Cap Spring This part replaces 530092068. Price: $1.99
32	530092069	DRIVE GEAR Price: $7.99
33	702509	SPOOL, W/LINE Price: Call Us
34	530401183	Tap Button This part replaces 530093387. Price: $2.99
35	530092133	COVER Price: $5.99
36	530092728	TAP-N-GO HEAD ASSEMBLY Price: $3.33
