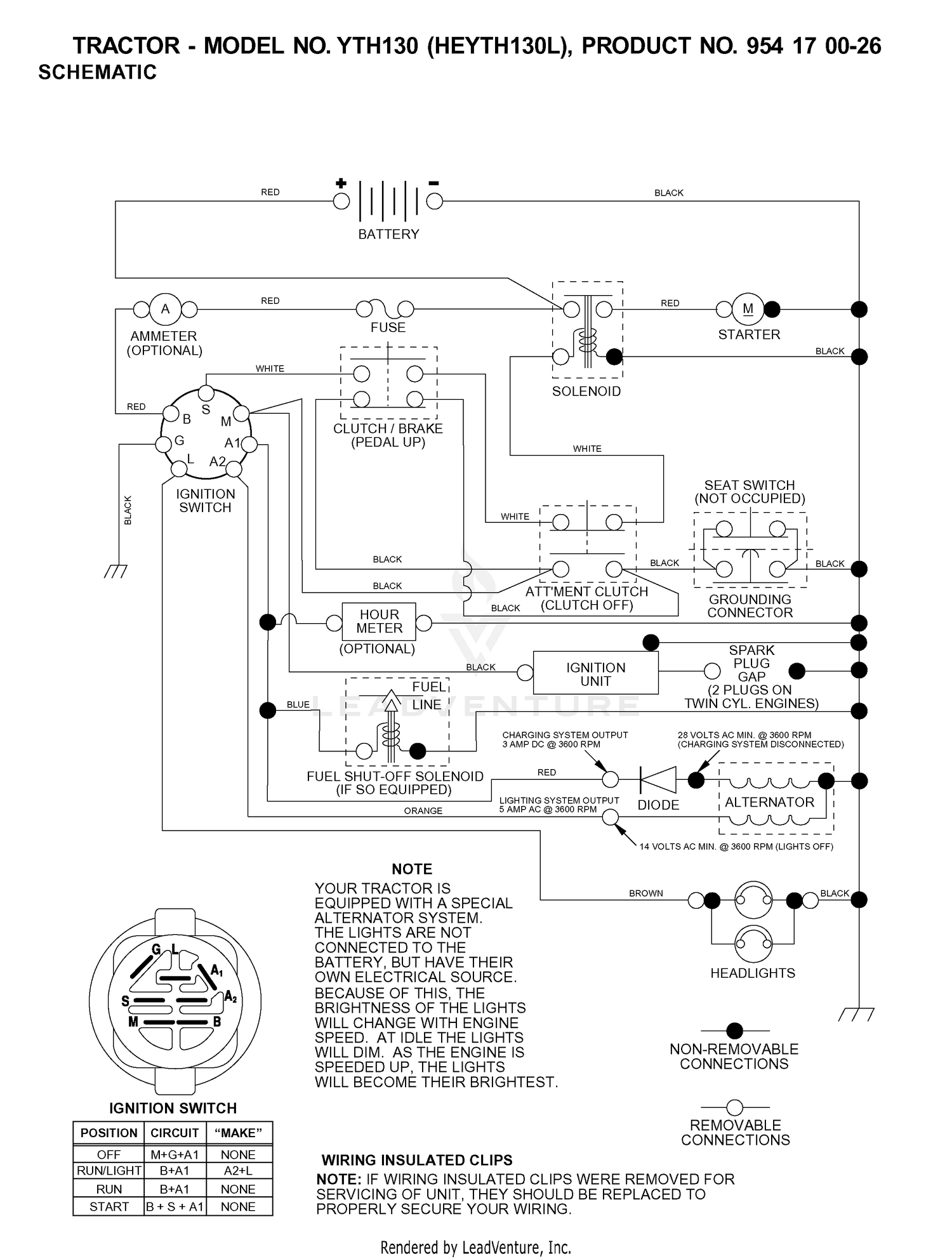

SCHEMATIC

SCHEMATIC

Parts (4)

RefPart NumberDescription
1 122-0230 HARNESS-WIRE Price: $1,810.35
2 115-1930 CABLE-BATTERY, POSITIVE Price: $86.92
3 108-9470 HARNESS-WIRE, FUSIBLE LINK Price: $49.58
4 33003-00 NUT-HF Price: $0.25
