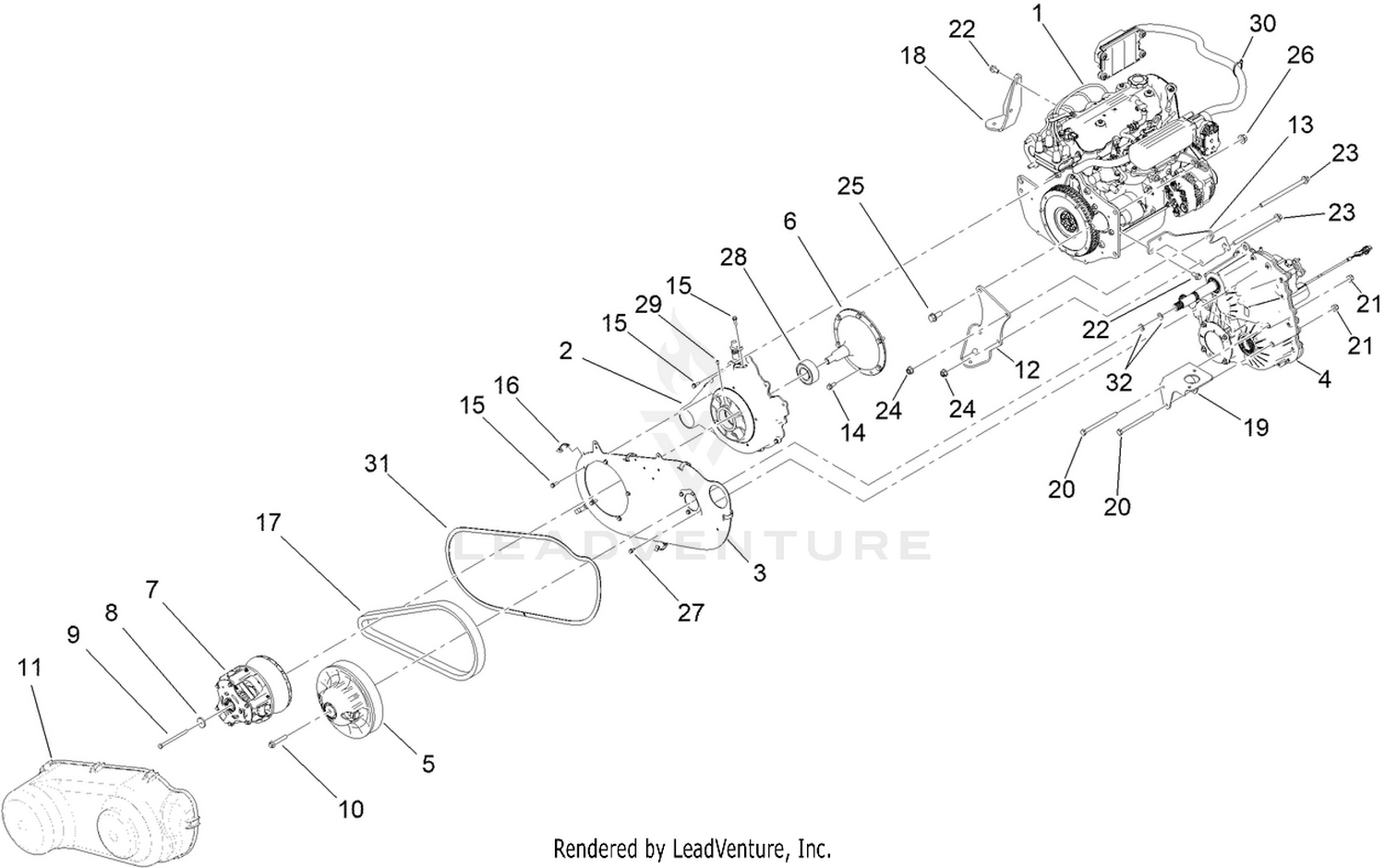

Engine, Transaxle and Clutch Assembly
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 144-2216 | ENGINE (GAS) Price: $10,139.53 |
| 2 | 145-2143 | HOUSING-FLYWHEEL, GAS Price: $152.24 |
| 3 | 161-5254 | PLATE-SPANNER Price: $34.97 |
| 4 | 140-2611 | TRANSAXLE ASM Price: $3,625.78 |
| 5 | 147-8173 | CLUTCH-SECONDARY Price: $481.76 |
| 6 | 145-2145 | ADAPTER-CLUTCH Price: $83.80 |
| 7 | 147-8172 | CLUTCH-PRIMARY Price: $642.34 |
| 8 | 104-6550 | WASHER-CLUTCH Price: $13.83 |
| 9 | 99-7201 | SCREW-HH Price: $2.65 |
| 10 | 140-4777 | SCREW-HHF Price: $2.37 |
| 11 | 140-2603 | ENCLOSURE-CVT Price: $51.80 |
| 12 | 147-8071 | BRACKET-TRANSMISSION, LH Price: $28.20 |
| 13 | 145-7785-03 | BRACKET-TRANS, RH (GAS) Price: $26.81 |
| 14 | 33104-020 | SCREW-HHF Price: $2.07 |
| 15 | 110-3986 | SCREW Price: $1.03 |
| 16 | 140-4669 | CLIP-SPRING Price: $0.68 |
| 17 | 145-7789 | BELT-VARIABLE Price: $79.82 |
| 18 | 147-8093 | PSI FRONT ENGINE MOUNT ASM Price: $36.78 |
| 19 | 140-2624-03 | BRACKET-DRIVETRAIN, REAR Price: Call Us |
| 20 | 33115-140 | SCREW-HH Price: $12.43 |
| 21 | 103-9511 | NUT-LOCK, NI Price: $2.09 |
| 22 | 120-4839 | SCREW-HHF Price: $2.92 |
| 23 | 140-2689 | SCREW-HH Price: $19.81 |
| 24 | 114-8417 | NUT-HF, NI Price: $0.87 |
| 25 | 3234-38 | SCREW-HHF Price: $3.33 |
| 26 | 99-5107 | NUT-LOCK Price: $1.77 |
| 27 | 104-2628 | SCREW-HWH Price: $0.75 |
| 28 | 145-2146 | BEARING-BALL Price: $28.53 |
| 29 | 133-1717 | SCREW-SET Price: $0.41 |
| 30 | 3290-378 | TIE-CABLE Price: $0.79 |
| 31 | 145-7799 | GASKET-COVER, CVT Price: $6.15 |
