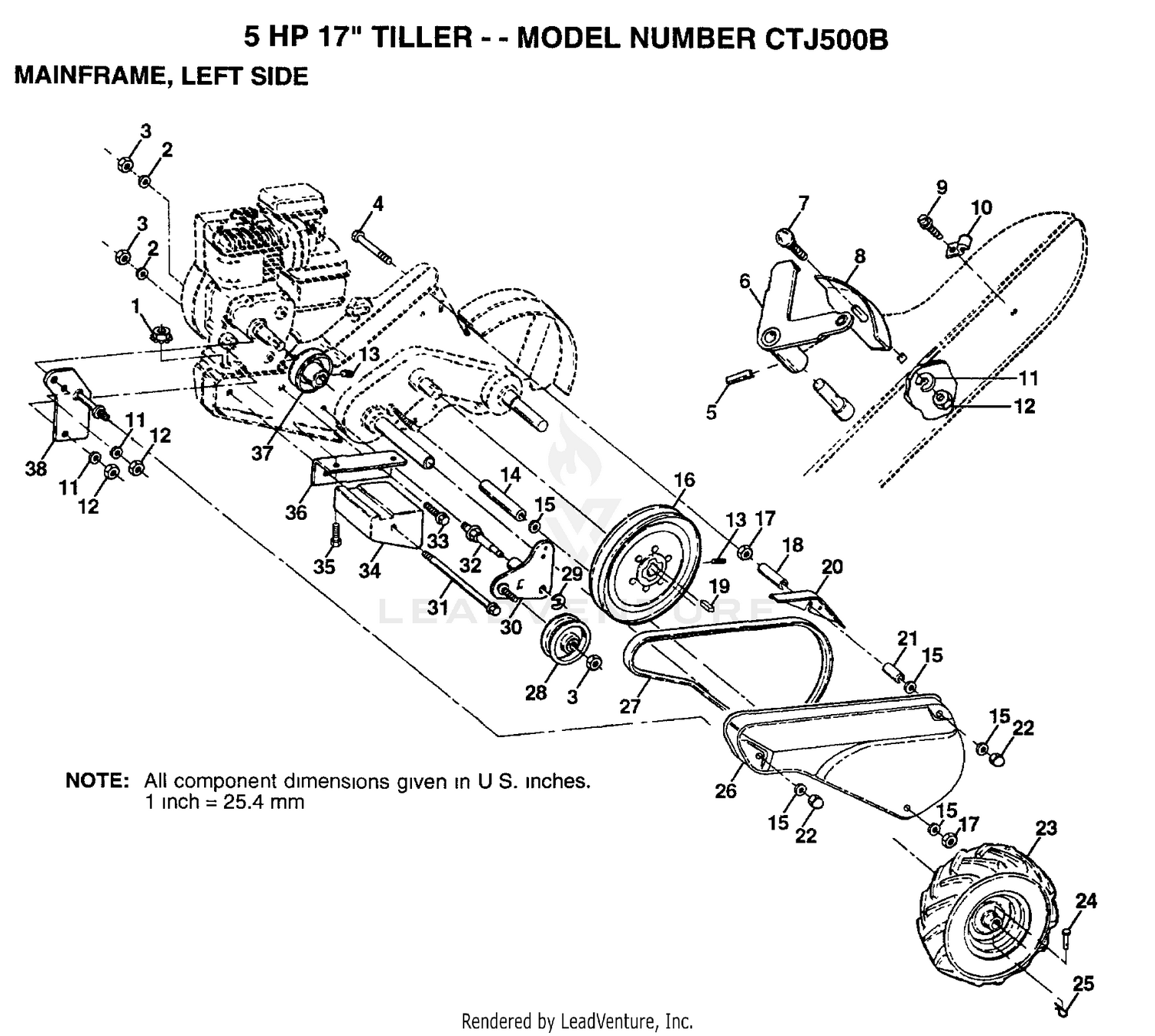

| Ref | Part Number | Description |
|---|
| 1 |
73510500 |
NUT Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 2 |
27-8550-01 |
PARKING BRAKE PEDAL ASM Price: $324.09 |
| 3 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 3 |
73220600 |
NUT.HEX.3/8-16UNC Price: Call Us |
| 4 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 4 |
74930568 |
BOLT TI Price: Call Us |
| 5 |
1572H |
SUB= 2882J Price: Call Us |
| 5 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 6 |
110111X |
LEVER ASM CRT Price: Call Us |
| 6 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 7 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 7 |
72110404 |
BOLT Price: Call Us |
| 8 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM Price: $81.41 |
| 8 |
8700J |
PANEL TI Price: Call Us |
| 9 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 9 |
86777 |
SUB= 750097 Price: Call Us |
| 10 |
105-0065 |
PARKING BRAKE SHAFT ASM Price: $78.53 |
| 10 |
9484R |
CONDIUT CLIP T Price: Call Us |
| 11 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 12 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 12 |
73220400 |
SUB= 50675 Price: Call Us |
| 13 |
105-0064 |
SPACER-SWITCH Price: $10.72 |
| 13 |
23230506 |
SET SCREW Price: Call Us |
| 14 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 14 |
120938X |
SPACER Price: Call Us |
| 15 |
19111116 |
WASHER Price: Call Us |
| 15 |
3290-360 |
SCREW-HH Price: $4.34 |
| 16 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 17 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 17 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 18 |
110651X |
SPACER CRT Price: Call Us |
| 18 |
323-14 |
SCREW-HH Price: $1.34 |
| 19 |
2649M |
KEY T Price: Call Us |
| 19 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 20 |
110653X |
GUARD CRT Price: Call Us |
| 20 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 21 |
131691 |
SPLIT SPACER Price: Call Us |
| 21 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 22 |
104214X |
NUT TI Price: Call Us |
| 22 |
3217-7 |
NUT-HEX Price: $0.28 |
| 23 |
102190X |
TIRE.CHV.13X5.0-6 Price: Call Us |
| 23 |
93-8743 |
FOOTPAD-TURN Price: $27.95 |
| 24 |
126875X |
RIVET.DRILL.1.75 Price: Call Us |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 25 |
4497H |
RETAINER M Price: Call Us |
| 27 |
132672 |
BELT-V Price: Call Us |
| 28 |
104679X |
PULLEY-IDLER TI Price: Call Us |
| 29 |
12000032 |
KLIP RING Price: Call Us |
| 30 |
105611X |
SUB= 918105611X Price: Call Us |
| 31 |
102384X |
BOLT CRT Price: Call Us |
| 32 |
102141X |
SHIFT ARM CRT Price: Call Us |
| 33 |
74760616 |
BOLT Price: Call Us |
| 34 |
102383X |
COUNTERWEIGHT CRT Price: Call Us |
| 35 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 36 |
102331X |
BRACKET LH CRT Price: Call Us |
| 37 |
130816 |
ENGINE SHEAVE Price: Call Us |
| 124258X |
RIM |
Price: Call Us 124258X |
