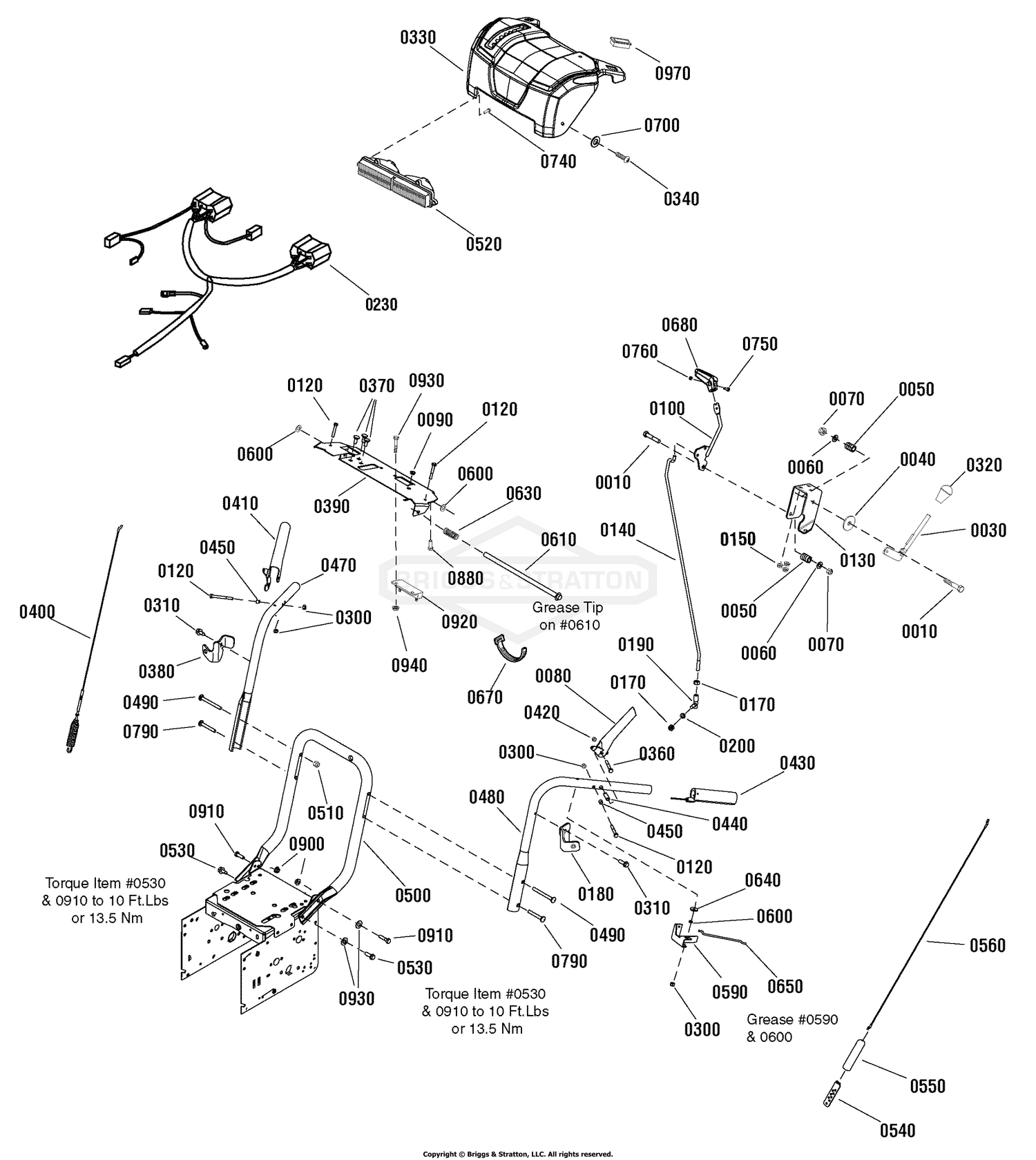

| Ref | Part Number | Description |
|---|
| 0010 |
703589 |
CAPSCREW, 3/8-16X2 This part replaces 1923701SM. Price: $3.94 |
| 0030 |
1736192YP |
LEVER, Deflector Control Price: $11.55 |
| 0040 |
703591 |
WASHER, .406X1.5X.12 This part replaces 1924356SM. Price: $4.70 |
| 0050 |
50786MA |
SPRING,.509 DIA X0.75 Price: $4.75 |
| 0060 |
71072MA |
WASHER, FLAT .406X.81 This part replaces 1918266SM. Price: $3.63 |
| 0070 |
703117 |
NUT This part replaces 1919439SM. Price: $3.17 |
| 0080 |
1737690YP |
LEVER, Clutch, Left Price: $34.58 |
| 0090 |
1667588SM |
BUSHING, 3/5ID Price: $5.32 |
| 0100 |
703047 |
LEVER, SPEED This part replaces 1736836YP. Price: $52.16 |
| 0120 |
703586 |
TIE, SELF LOCKING This part replaces 1921962SM. Price: $4.05 |
| 0130 |
1737684YP |
BRACKET, Controls Price: $15.04 |
| 0140 |
704085 |
ROD, SPEED CONTROL This part replaces 1734354SM. Price: $19.89 |
| 0150 |
703409 |
NUT, 5/16-18, GR5 This part replaces 1931277SM. Price: $4.92 |
| 0170 |
703331 |
NUT, 5/16-24 This part replaces 2820263SM. Price: $3.73 |
| 0180 |
1736174YP |
BRACKET, Mounting, Dash, Left Price: $18.59 |
| 0190 |
50782MA |
BALLJOINT,STEEL YZ Price: $19.73 |
| 0200 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 1917356SM. Price: $3.51 |
| 0230 |
1739217YP |
HARNESS, Wire, Headlights Price: $69.99 |
| 0300 |
703232 |
NUT, 1/4-20, NYLOCK This part replaces 1920397SM. Price: $3.94 |
| 0310 |
703054 |
SCREW, 1/4-20X0.625 This part replaces 1927429SM. Price: $3.82 |
| 0320 |
1732470SM |
KNOB, Internal Thread, 3/8-16 Price: $17.68 |
| 0330 |
1736951YP |
DASH ASSEMBLY, Twin Light Price: $112.34 |
| 0340 |
1960556SM |
SCREW, Pan Head Torx, 1/4-20 x 3/4 Price: $3.95 |
| 0360 |
5025010X12SM |
BOLT, 1/4-20 This part replaces 1922837SM. Price: $2.65 |
| 0370 |
5025145X6SM |
BOLT, 5/16-18 X 3/4", This part replaces 340720MA. Price: $3.29 |
| 0380 |
1736175YP |
BRACKET, Mounting, Dash, Right Price: $18.59 |
| 0390 |
1737685AYP |
SUPPORT, Dash Panel Price: $41.33 |
| 0400 |
1732471SM |
ASSEMBLY, Cable & Spring, Right Price: $12.70 |
| 0410 |
1736323YP |
LEVER, Clutch, Right Price: $18.39 |
| 0420 |
703251 |
NUT, 1/4-20 This part replaces 1923358SM. Price: $4.41 |
| 0430 |
1723965SM |
HAND GRIP - HEATED Price: $75.96 |
| 0440 |
703223 |
SPACER, Stepped This part replaces 1736542YP. Price: $3.73 |
| 0450 |
703137 |
SPACER This part replaces 1678392SM. Price: $6.22 |
| 0470 |
1734587ASM |
HANDLE, Upper, Right Price: $47.63 |
| 0480 |
1734586ASM |
HANDLE, Upper, Left Price: $51.59 |
| 0490 |
704421 |
SCREW, 5/16 X 2.25 This part replaces 1960273SM. Price: $4.75 |
| 0500 |
1737759AYP |
HANDLE, Lower Price: $164.45 |
| 0510 |
703115 |
NUT This part replaces 1960686SM. Price: $3.06 |
| 0520 |
1736176YP |
HEADLIGHT ASSEMBLY Price: $60.10 |
| 0530 |
703228 |
SCREW, 5/16-18 X .75 This part replaces 1664847SM. Price: $3.94 |
| 0540 |
313441MA |
BRACKET, CABLE ADJ BL Price: $4.70 |
| 0550 |
308146MA |
BOOT, Spring End Cover Price: $6.00 |
| 0560 |
1502113MA |
CABLE, FR-DR P7 EXT-HDL Price: $20.02 |
| 0590 |
1733505BMYP |
BRKT, Pivot, Free Hand This part replaces 1733505ASM. Price: $13.03 |
| 0600 |
703124 |
SPACER, Powdered Metal This part replaces 1733095SM. Price: $3.51 |
| 0610 |
1733509SM |
ROD & SPRING ASSEMBLY Price: $75.98 |
| 0630 |
2108360SM |
SPRING, Compression, 2-1/2 Inch Price: $4.98 |
| 0640 |
703229 |
WASHER, 1/4 This part replaces 1960353SM. Price: $3.94 |
| 0650 |
1736360YP |
ROD, 5-1/2 Long Price: $11.11 |
| 0670 |
1701011SM |
TIE, Self Locking Price: $4.70 |
| 0680 |
1733192SM |
KNOB, Slot Speed Price: $7.71 |
| 0700 |
703332 |
WASHER This part replaces 1921319SM. Price: $3.72 |
| 0740 |
26X245MA |
SCREW-#10X.5 B W/WAS This part replaces 7091105YP. Price: $3.84 |
| 0750 |
1960589SM |
SCREW, Round Head Phillips, #10-24 x 3/4 Price: $3.59 |
| 0760 |
703412 |
NUT, NYLOCK, 10-24 This part replaces 1933896SM. Price: $3.72 |
| 0790 |
703175 |
BOLT,RD SH SQ This part replaces 1931338SM. Price: $3.50 |
| 0880 |
1960728SM |
SCREW, Hex Hd., Slotted, Plastite, 1/4-10 x 5/8 This part replaces 7091081SM. Price: $3.27 |
| 0900 |
704067 |
NUT, HEX FLNG,5/16-18 This part replaces 1935048SM. Price: $3.17 |
| 0910 |
703570 |
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 Price: $3.95 |
| 0920 |
1724037SM |
RESISTOR BLOCK Price: $36.85 |
| 0930 |
703101 |
BOLT,1/4-20X.75 This part replaces 1931317SM. Price: $3.63 |
| 0940 |
703061 |
NUT, HEX KEPS, 1/4-20 This part replaces 1960685SM. Price: $3.19 |
