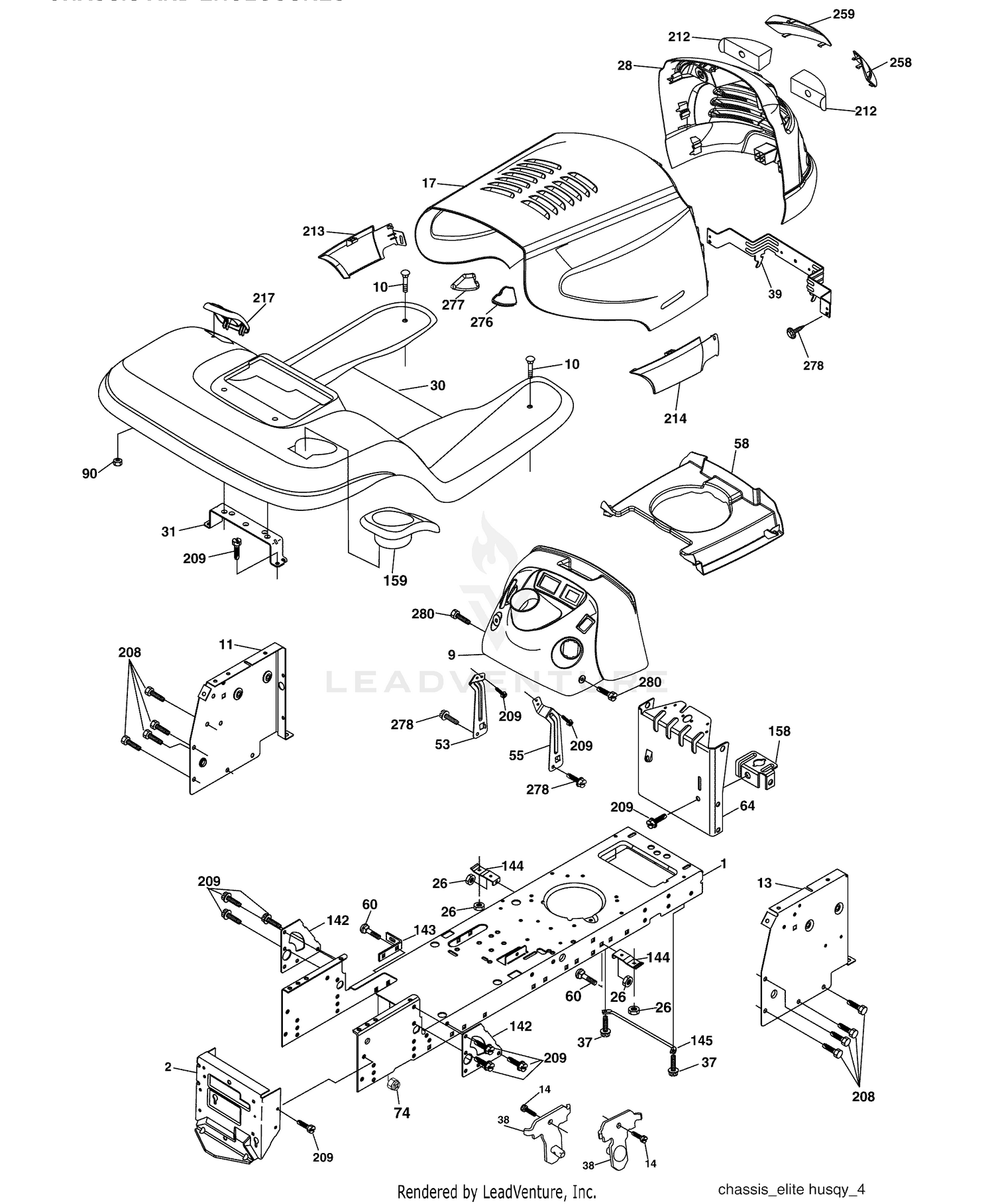

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 1 |
93-3418 |
GAUGE-OIL, LEVEL Price: $47.16 |
| 2 |
42-8830 |
O-RING Price: $2.96 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
93-7013 |
DIPSTICK TUBE Price: $157.34 |
| 4 |
112-8409 |
FILTER-OIL This part replaces 93-4295. Price: $11.64 |
| 5 |
56-1310 |
SWITCH ASM Price: $40.76 |
| 6 |
92-1920 |
OIL PLUG Price: $15.70 |
| 7 |
92-1921 |
OIL GASKET Price: $3.58 |
| 9 |
532196095 |
DASH This part replaces 532196138. Price: $84.99 |
| 9 |
93-3422 |
PAN ASSY-OIL Price: $1,053.01 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
67-2340 |
BOLT W/WASHER Price: $2.19 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 11 |
93-3414 |
GASKET Price: $2.84 |
| 12 |
48-1990 |
NUT Price: $4.69 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 13 |
93-3413 |
DISCONTINUED Price: Call Us |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 14 |
93-3421 |
BOLT Price: $2.89 |
| 15 |
93-3420 |
PUMP ASSY-OIL Price: $484.04 |
| 16 |
93-3417 |
GASKET Price: $5.02 |
| 17 |
532188374 |
HOOD.ELITE.HUSQ-STEEL This part replaces 532189977. Price: $89.99 |
| 17 |
93-3416 |
HOUSING Price: $99.77 |
| 18 |
67-2500 |
PLUNGER Price: $22.88 |
| 19 |
42-8930 |
SPRING MM 407142 Price: $16.42 |
| 20 |
42-7290 |
GASKET-PLUG Price: $7.56 |
| 21 |
67-2520 |
PLUG Price: $5.65 |
| 22 |
93-3415 |
RELIEF VALVE ASM Price: $172.00 |
| 23 |
93-4291 |
DISCONTINUED Price: Call Us |
| 24 |
93-4296 |
DISCONTINUED Price: Call Us |
| 25 |
93-4290 |
DISCONTINUED Price: Call Us |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 26 |
93-4285 |
COOLER ASSY - OIL Price: $635.41 |
| 27 |
93-4297 |
CLAMP-HOSE Price: $5.07 |
| 28 |
93-4289 |
HOSE - RUBBER OUTLET Price: $47.96 |
| 29 |
93-4288 |
JOINT - WATER DRAIN Price: $275.25 |
| 30 |
532192814 |
FENDER.W/CUPHOLDER.ORANGE This part replaces 532194806. Price: $219.99 |
| 30 |
93-4287 |
O-RING Price: $11.30 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 31 |
93-4284 |
SPACER - OIL COOLER Price: $161.67 |
| 32 |
93-4286 |
O-RING Price: $39.16 |
| 33 |
93-4294 |
HOSE - WATER INLET Price: $17.20 |
| 34 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 35 |
98-0659 |
COVER - SPIRAL Price: $15.13 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 53 |
532188373 |
BRACKET DASH LH Price: $7.99 |
| 55 |
532188372 |
BRACKET DASH RH Price: $9.99 |
| 58 |
532189352 |
AIR DUCT ENGINE Price: $20.99 |
| 60 |
872140606 |
Bolt Rdhd Sqnk 3/8-16 unc x 3/4 Price: $4.99 |
| 64 |
532174997 |
DASH LOWER Price: $24.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 158 |
532162037 |
BRACKET PARKING BRAKE Price: $3.39 |
| 159 |
532191120 |
CUPHOLDER.RIGHT.GREY This part replaces 532192404. Price: $8.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532188267 |
INSERT LENS Price: $8.99 |
| 213 |
532188266 |
SKIRT.SIDE.ELITE.LH This part replaces 532189979. Price: $7.99 |
| 214 |
532188265 |
SKIRT.SIDE.ELITE.RH.GREY This part replaces 532189978. Price: $7.99 |
| 217 |
532179132 |
CONSOLE FUEL WINDOW GRAY This part replaces 532185436. Price: $7.99 |
| 258 |
532188263 |
LENS ELITE CLEAR RH This part replaces 532189981. Price: $14.99 |
| 259 |
532188264 |
LENS.ELITE.HUSQ.CLEAR.LH This part replaces 532189982. Price: $14.99 |
| 276 |
532189274 |
BUMPER HOOD RH Price: $7.99 |
| 277 |
532189275 |
BUMPER HOOD LH Price: $5.99 |
| 278 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
