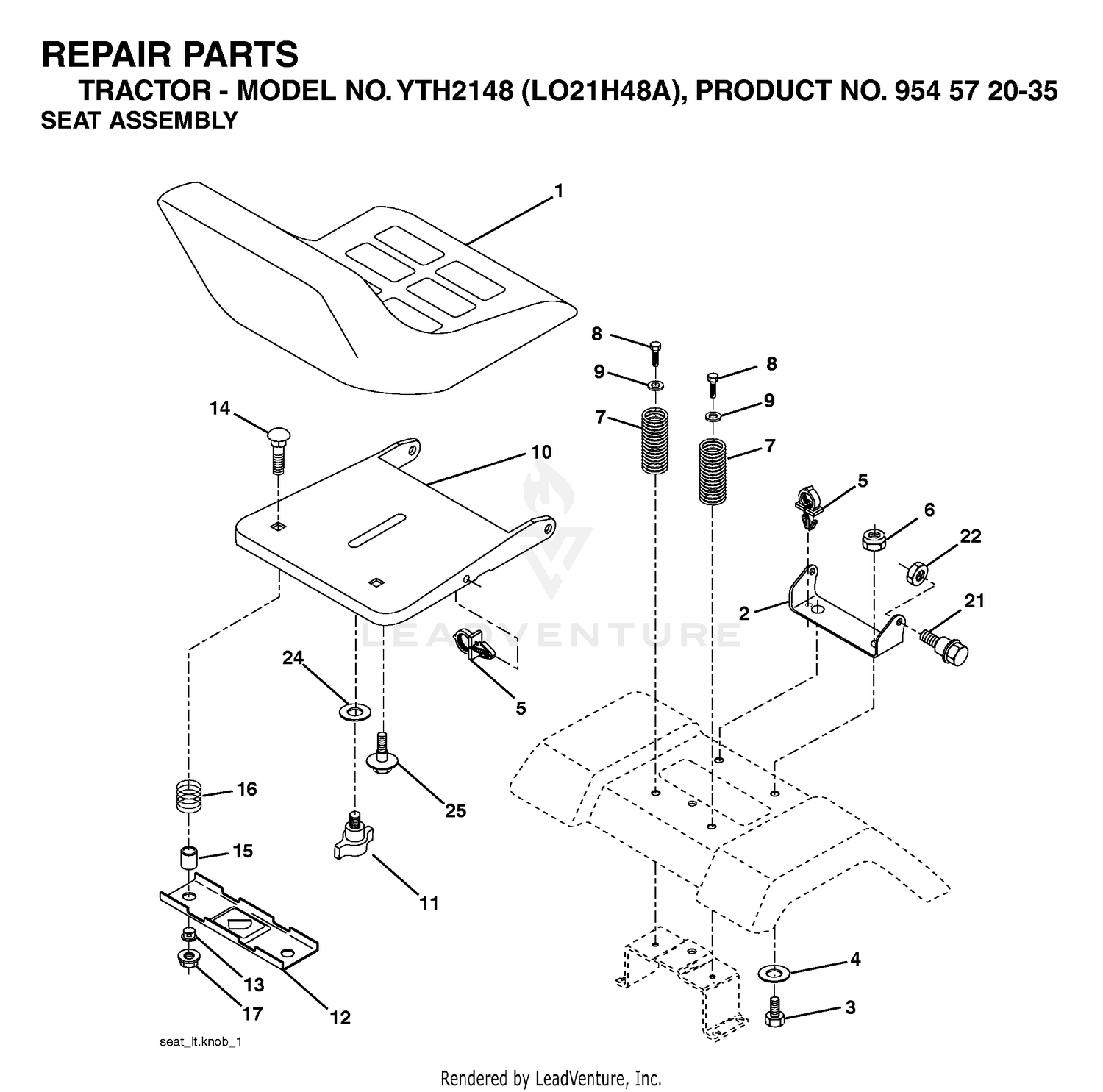

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 |
98-9705 |
STARTER ASM Price: $663.57 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121749 |
WASHER Price: $2.99 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 20 |
104-8608 |
YOKE ASM Price: $437.88 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 30 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 40 |
98-7744 |
BEARING Price: $35.64 |
| 50 |
98-7743 |
BEARING Price: $37.48 |
| 60 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 70 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 80 |
105-3746 |
MAGNETIC SWITCH ASM Price: $689.29 |
| 90 |
98-7748 |
FRAME-END Price: $82.65 |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7754 |
SPRING Price: $4.70 |
| 160 |
98-7755 |
BALL Price: $0.42 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
100-9240 |
BOLT Price: $7.23 |
| 200 |
98-7758 |
BOLT ASM Price: $4.90 |
| 210 |
99-8375 |
COVER Price: $24.86 |
| 220 |
99-8371 |
NUT-HEX Price: $3.75 |
| 230 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 240 |
99-8376 |
NUT-HEX Price: $7.28 |
| 250 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
