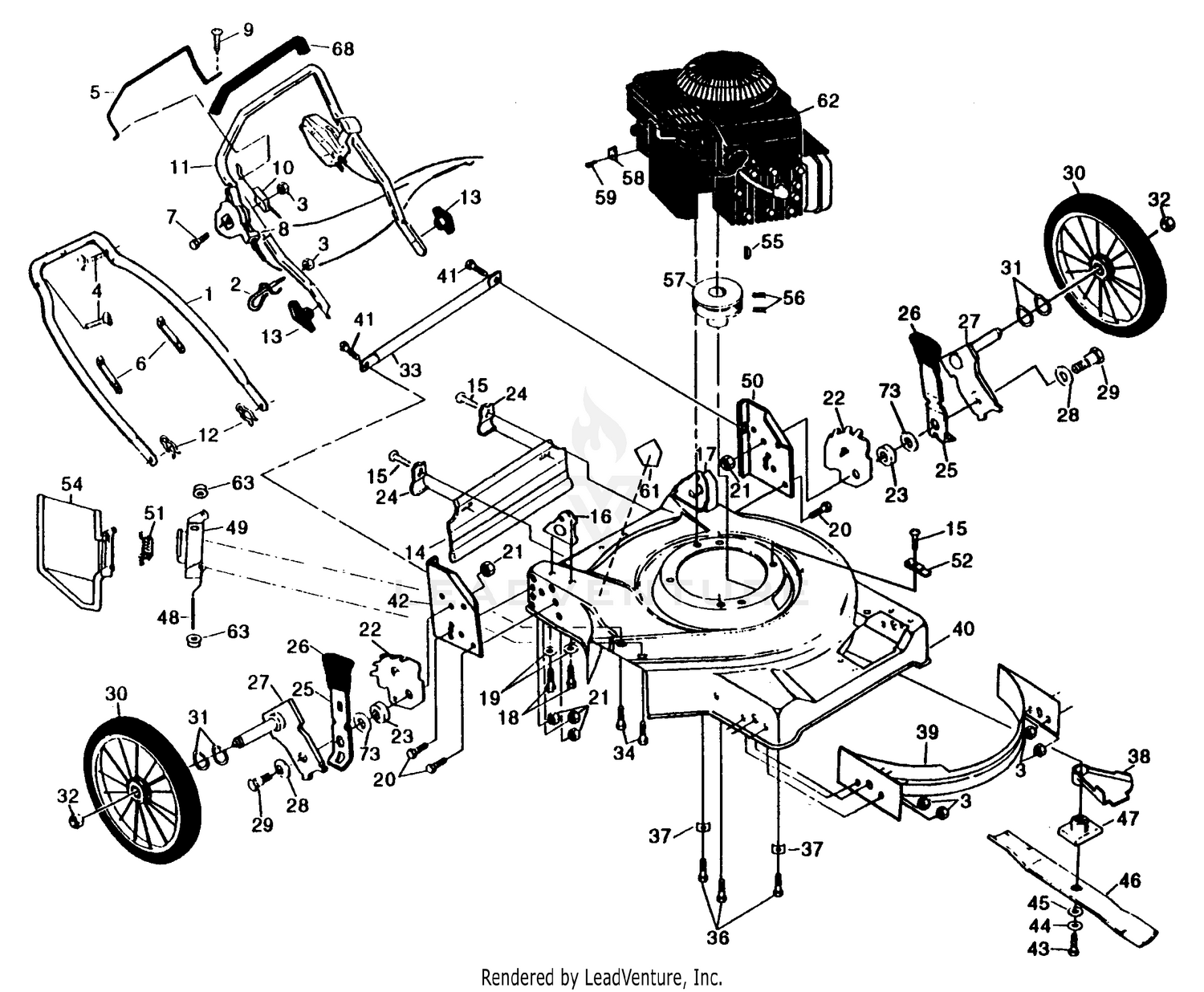

| Ref | Part Number | Description |
|---|
| 1 |
120-8575-03 |
UPPER CRADLE ASM Price: $147.46 |
| 1 |
532125377 |
Lower Handle (AYP part number) Price: $3.33 |
| 2 |
120-8576 |
COVER-SLIDE Price: $97.57 |
| 2 |
532194788 |
GUIDE.ROPE.STD.BLK.ZIN This part replaces 532132001. Price: $3.99 |
| 3 |
108-3457 |
SPACER Price: $21.03 |
| 3 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 532063601. Price: $1.99 |
| 4 |
120-8589-03 |
BRACKET-TUBE Price: $60.38 |
| 4 |
532183724 |
KNOB.HANDLE.KIT.SERVICE This part replaces 532131959. Price: $6.99 |
| 5 |
120-0757-03 |
BRACKET-TUBE Price: $29.00 |
| 5 |
532851660 |
Control Bar (AYP part number) Price: Call Us |
| 6 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $3.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $3.99 |
| 8 |
120-0608-03 |
HINGE Price: $130.93 |
| 8 |
532700417 |
Throttle Control Price: $12.99 |
| 9 |
120-0611-03 |
STRAP Price: $70.31 |
| 9 |
532851552 |
Pan Head Hi/Lo Screw #10-16 x .63 (AYP part number) Price: $2.99 |
| 10 |
120-0613-03 |
STRAP Price: $81.86 |
| 10 |
532130861 |
Engine Zone Cable Price: $8.99 |
| 11 |
120-0761 |
BUSHING Price: $3.39 |
| 11 |
532125271 |
Upper Handle (AYP part number) Price: $3.33 |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
532051793 |
Hairpin Cotter (AYP part number) Price: $3.99 |
| 13 |
322-20 |
SCREW-HH Price: $1.79 |
| 13 |
532183724 |
KNOB.HANDLE.KIT.SERVICE This part replaces 532136376. Price: $6.99 |
| 14 |
110-5331 |
SPRING-COMPRESSION Price: $22.18 |
| 14 |
532140539 |
Rear Skirt (AYP part number) Price: $9.99 |
| 15 |
817021008 |
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) This part replaces 532750097. Price: $1.99 |
| 15 |
92-0010 |
U-BOLT Price: $10.65 |
| 16 |
120-0646 |
HOUSING-LOWER, ULTRASONIC SENSOR Price: $89.58 |
| 16 |
532140465 |
Handle Bracket Assembly (Right) (AYP part number) Price: $5.99 |
| 17 |
117-8114 |
SENSOR-SONIC Price: $850.04 |
| 17 |
532140466 |
Handle Bracket Assembly (Left) (AYP part number) Price: $5.99 |
| 18 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 18 |
532055187 |
Screw 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 19 |
120-0647 |
NUT Price: $21.97 |
| 19 |
532059289 |
Washer (AYP part number) Price: $2.99 |
| 20 |
120-0648 |
PLUG-PROGRAMMING Price: $62.08 |
| 20 |
874760612 |
Bolt, Hex Head 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 21 |
120-0645 |
COVER-SENSOR, ULTRASONIC Price: $80.27 |
| 21 |
873680600 |
LOCKNUT This part replaces 532751592. Price: $1.99 |
| 22 |
104-7201 |
NUT-HF Price: $0.69 |
| 22 |
532139901 |
Wheel Adjusting Bracket (R.R.) (AYP part number) Price: $5.99 |
| 23 |
120-0772 |
CAP-TUBE Price: $5.21 |
| 23 |
532084920 |
Spacer (AYP part number) Price: $1.99 |
| 24 |
117-8115 |
CABLE-ULTRASONIC SENSOR, 4 METER Price: $152.18 |
| 24 |
532125207 |
Skirt Bracket (AYP part number) Price: $4.99 |
| 25 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 25 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532700331. Price: $3.99 |
| 26 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $2.99 |
| 27 |
532125373 |
Axle Arm Assembly (AYP part number) Price: $3.33 |
| 28 |
532401630 |
WASHER.CURVED.CYLINDRICAL This part replaces 532061651. Price: $2.99 |
| 29 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $3.99 |
| 30 |
532107620 |
Wheel & Tire Assembly (Rear) (AYP part number) Price: $3.33 |
| 31 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $5.99 |
| 32 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $2.99 |
| 33 |
532850709 |
Rod Support (AYP part number) Price: $4.99 |
| 34 |
817600406 |
SCREW 1/4X20 This part replaces 532851856. Price: $2.99 |
| 36 |
532150406 |
BOLT 3/8-16X1-1/8 This part replaces 532850998. Price: $3.99 |
| 37 |
532125078 |
Engine Washer (AYP part number) Price: $3.99 |
| 38 |
532048283 |
KIT.SHIELD.DEBRIS.21.RWGD.EZ This part replaces 532134612. Price: $11.99 |
| 39 |
532132352 |
Front Baffle This part replaces 532125337. Price: $6.99 |
| 40 |
532702178 |
Mower Housing Kit (Inc.61) Price: $3.33 |
| 41 |
532054583 |
Screw (AYP part number) Price: $3.99 |
| 42 |
532142837 |
Wheel Support Bracket R.H. (AYP part number) Price: $7.99 |
| 43 |
532851084 |
Hex Head Screw 3/8-24 x 1-3/8 Gr. 8 Price: $2.99 |
| 44 |
539990118 |
SLW 3/8 STD This part replaces 532850263. Price: $1.99 |
| 45 |
532851074 |
Hardened Washer (AYP part number) Price: $2.99 |
| 47 |
581547901 |
ADAPTOR.BLADE.7/8 This part replaces 532851514. Price: $11.99 |
| 48 |
532147286 |
Hinge Rod (AYP part number) This part replaces 532851854. Price: $4.99 |
| 49 |
532125175 |
Housing Bracket (AYP part number) Price: $5.99 |
| 50 |
532142838 |
Wheel Support Bracket L.H. (AYP part number) Price: $11.99 |
| 51 |
532411832 |
SPRING.SIDE.DISCHARGE This part replaces 532851855. Price: $2.99 |
| 52 |
532087930 |
Guide Clip (AYP part number) Price: $5.99 |
| 54 |
532851750 |
Discharge Guard Price: $3.33 |
| 55 |
532087677 |
Hi-Pro Key (AYP part number) Price: $3.99 |
| 56 |
532059708 |
Set Screw (AYP part number) Price: $3.99 |
| 57 |
532084596 |
Engine Pulley (AYP part number) Price: $22.99 |
| 59 |
532083816 |
Screw #10 x 5/8 (AYP part number) Price: $3.99 |
| 61 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $4.99 |
| 63 |
532083731 |
Push Nut (AYP part number) Price: $2.99 |
| 68 |
532850724 |
Handle Grip (AYP part number) Price: $11.99 |
| 73 |
532088348 |
Flat Washer 3/8 (AYP part number) Price: $3.99 |
