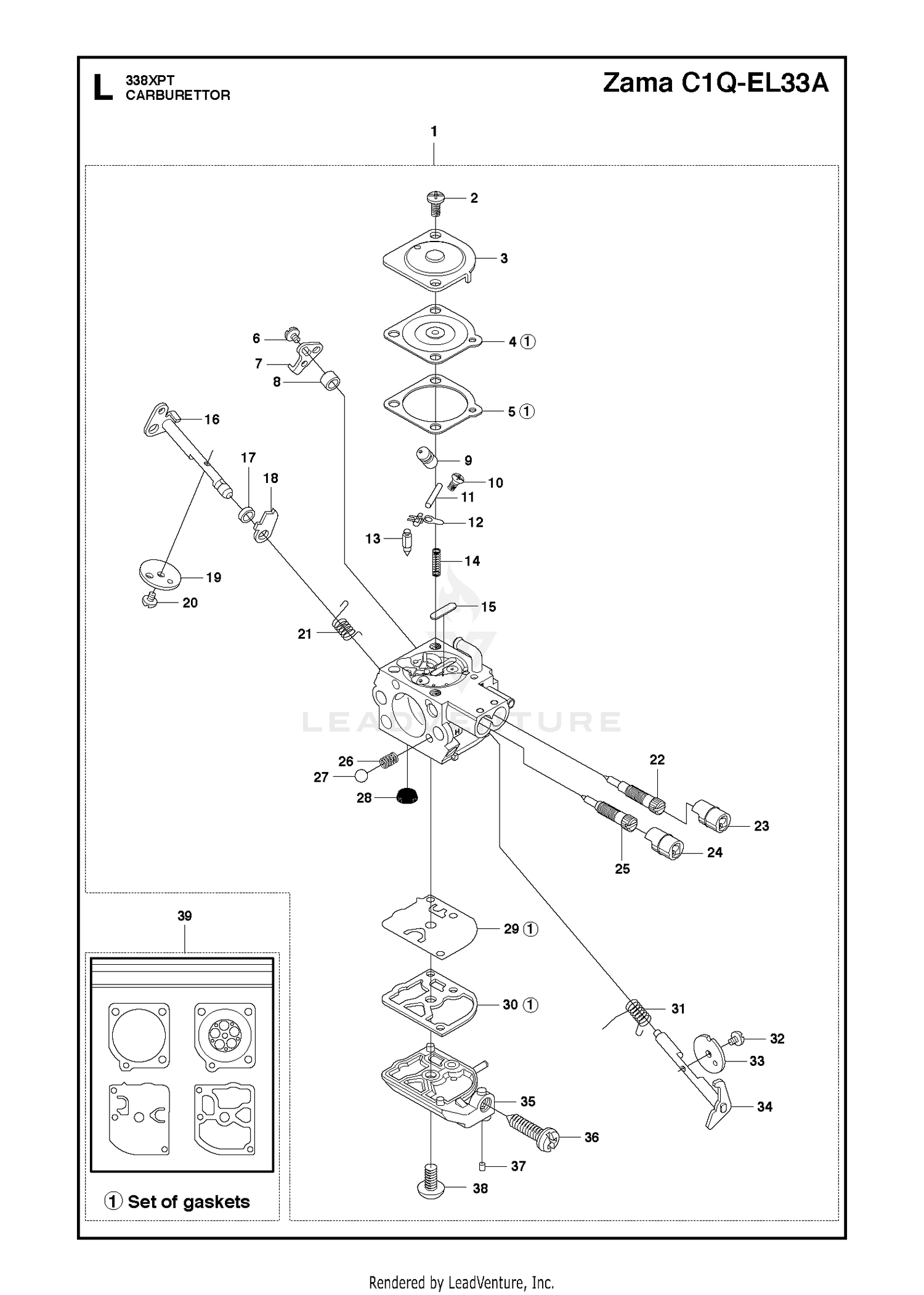

CARBURETOR DETAILS
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 503480501 | SCREW Price: $2.99 |
| 3 | 503974301 | COVER Price: $5.99 |
| 4 | 537048901 | DIAPHRAGM Price: $11.99 |
| 5 | 537020401 | GASKET Price: $3.99 |
| 6 | 503479001 | SCREW Price: $2.99 |
| 7 | 537274101 | ARM Price: $5.99 |
| 8 | 503478901 | SPACER Price: $3.99 |
| 9 | 537413501 | NOZZLE Price: $17.99 |
| 10 | 503480101 | SCREW Price: $2.99 |
| 11 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 12 | 503665901 | LEVER Price: $3.99 |
| 13 | 503479701 | INLET NEEDLE Price: $8.99 |
| 14 | 537273401 | SPRING Price: $4.99 |
| 15 | 503535601 | PLUG Price: $3.99 |
| 16 | 537273801 | SHAFT Price: $22.17 |
| 17 | 537274401 | WASHER Price: $3.16 |
| 18 | 537274301 | ARM Price: $4.78 |
| 19 | 537266801 | CHOKE FLAP Price: $4.99 |
| 21 | 537134901 | SPRING Price: $2.99 |
| 23 | 537417001 | LIMITER CAP KIT Price: $5.99 |
| 24 | 537417001 | LIMITER CAP KIT Price: $5.99 |
| 26 | 537012601 | SPRING Price: $2.99 |
| 27 | 537012501 | BALL Price: $2.99 |
| 28 | 503535701 | STRAINER Price: $3.99 |
| 29 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 30 | 537020101 | GASKET Price: $3.99 |
| 31 | 537019701 | SPRING THROTTLE Price: $2.99 |
| 32 | 503481801 | SCREW Price: $2.99 |
| 33 | 537388301 | THROTTLE FLAP Price: $5.99 |
| 34 | 544119001 | SHAFT Price: $16.99 |
| 35 | 537273301 | COVER Price: $32.99 |
| 36 | 537273701 | SCREW Price: $12.99 |
| 37 | 503481101 | PLUG Price: $3.99 |
| 38 | 503479601 | SCREW Price: $2.99 |
