| Ref | Part Number | Description |
|---|
| 1 |
94-4031 |
SHAFT-AXLE Price: $1,779.41 |
| 2 |
94-4030 |
WHEEL BEARING ASM Price: $208.67 |
| 3 |
586342501 |
DECAL.ZTR.STRTNGINST.REMOTECHK This part replaces 539108179. Price: $3.99 |
| 3 |
94-4036 |
SCREW Price: $41.13 |
| 4 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 5 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 6 |
95-2617 |
BRACKET-BRAKE MOUNTING This part replaces 94-4038. Price: $727.85 |
| 7 |
94-4033 |
HOUSING - AXLE, IHT Price: $1,671.35 |
| 8 |
33106-035 |
SCREW-HHF This part replaces 94-4007. Price: $8.35 |
| 8 |
539109908 |
DECAL, SAFETY WARNING Price: $5.99 |
| 9 |
532423829 |
DECAL.WARNING.CUST.RESP.E85. This part replaces 539110522. Price: $14.99 |
| 9 |
94-4015 |
GASKET-HOUSING, AXLE Price: $36.13 |
| 10 |
99-5777 |
GEAR HOUSING ASM This part replaces 94-3920. Price: $8,298.17 |
| 11 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 12 |
539120006 |
DECAL, PARK BRAKE Price: $4.99 |
| 12 |
94-3913 |
SHAFT-FRONT, PTO Price: $689.95 |
| 13 |
94-4052 |
DISCONTINUED Price: Call Us |
| 14 |
94-5966 |
Kit-Bearing Price: Call Us |
| 15 |
94-4003 |
DISCONTINUED Price: Call Us |
| 16 |
99-5777 |
GEAR HOUSING ASM This part replaces 94-3972. Price: $8,298.17 |
| 17 |
99-5780 |
DIFFERENTIAL ASM W/RING & PINION This part replaces 94-3970. Price: $10,483.15 |
| 18 |
99-5777 |
GEAR HOUSING ASM This part replaces 94-3938. Price: $8,298.17 |
| 19 |
100-1356 |
SCREW-HF This part replaces 94-4002. Price: $11.92 |
| 20 |
94-4143 |
STUD-WHEEL Price: $4.07 |
| 21 |
94-4035 |
SHAFT-AXLE Price: $2,556.48 |
| 22 |
581627301 |
DECAL.BADGE.170MM.TEXTLOGO. This part replaces 532429196. Price: $11.99 |
| 22 |
94-4144 |
COLLAR-BEARING Price: $159.58 |
| 23 |
94-4142 |
RING-RETAINING Price: $6.16 |
| 24 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 24 |
94-4032 |
SEAL-LIP Price: $43.91 |
| 25 |
94-3975 |
PIN Price: $5.80 |
| 26 |
94-3971 |
BEARING-BALL Price: $122.44 |
| 27 |
94-3959 |
GASKET-HOUSING Price: $70.76 |
| 28 |
94-3997 |
RING-RETAINING Price: $7.62 |
| 29 |
94-3961 |
DISCONTINUED Price: Call Us |
| 30 |
94-9178 |
BEARING-HEAD, PINION This part replaces 94-3907. Price: $334.68 |
| 31 |
94-3912 |
GEAR-DRIVE, FINAL Price: $703.98 |
| 32 |
94-3958 |
SPACER-PINION Price: $84.81 |
| 33 |
75-0520 |
BEARING-BALL Price: $88.98 |
| 34 |
94-4024 |
WASHER -.812 X 1.5 X .134 Price: $3.23 |
| 35 |
94-4025 |
DISCONTINUED Price: Call Us |
| 36 |
98-1812 |
SCREW This part replaces 94-4014. Price: $8.78 |
| 37 |
94-3953 |
NUT-HEX Price: $27.51 |
| 38 |
94-3914 |
SHAFT-DRIVE, PTO Price: $899.83 |

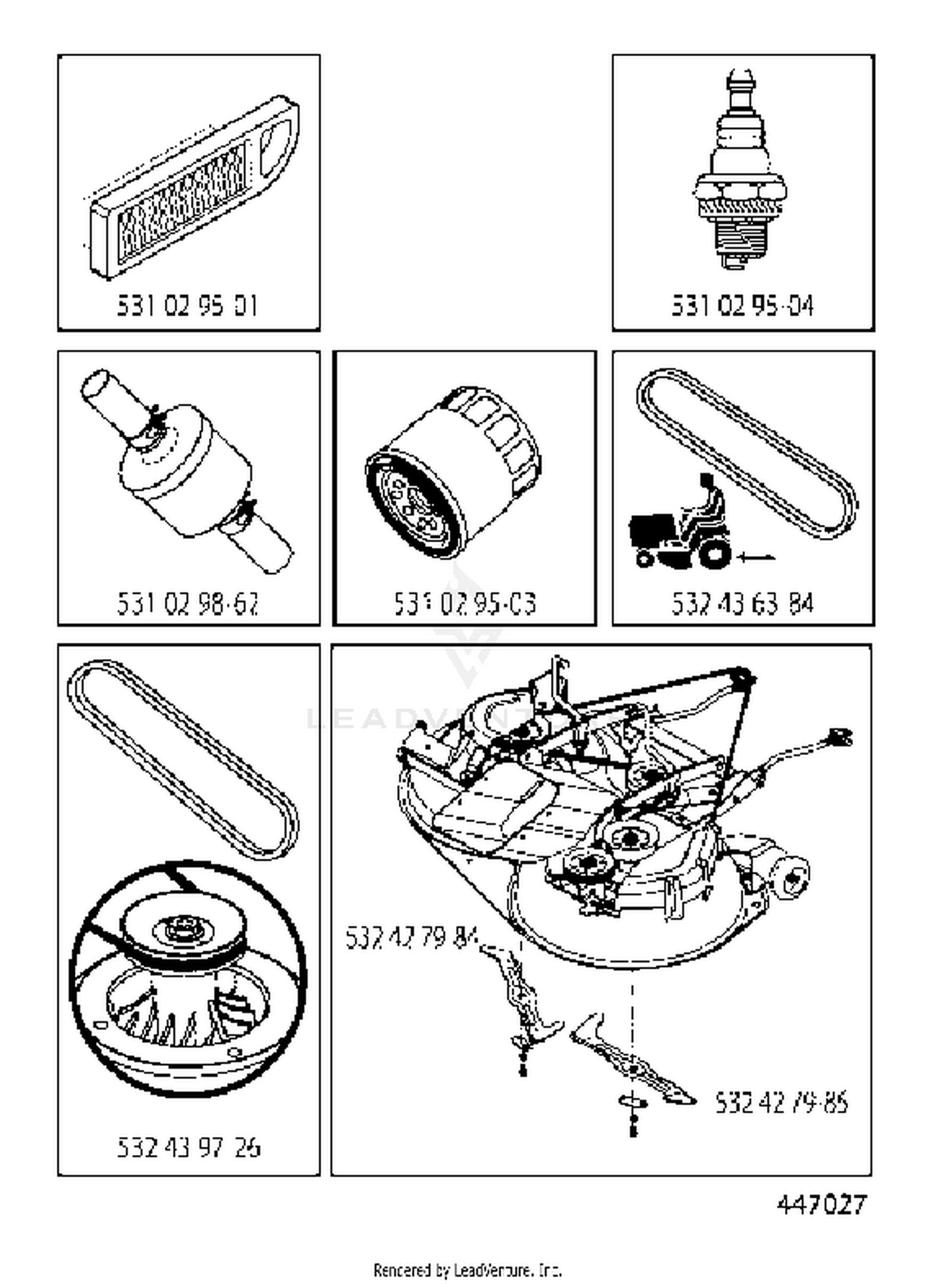

| 531029501 |
531029501 |
AIR FILTER Price: $37.99 |
| 531029504 |
531300889 |
PLUG-SPARK,BCPR5ES (NGK),SOLID This part replaces 531029504. Price: $5.99 |
| 531029862 |
531029862 |
Price: Call Us |
| 532427984 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $49.99 |
| 532427985 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $49.99 |
| 532436384 |
583508901 |
V-BELT.TEX.CRD.GEAR This part replaces 532436384. Price: $64.99 |
| 532439726 |
583544901 |
RP BELT.DRIVE.MWR.MECHN.97CRD This part replaces 532439726. Price: $84.99 |
