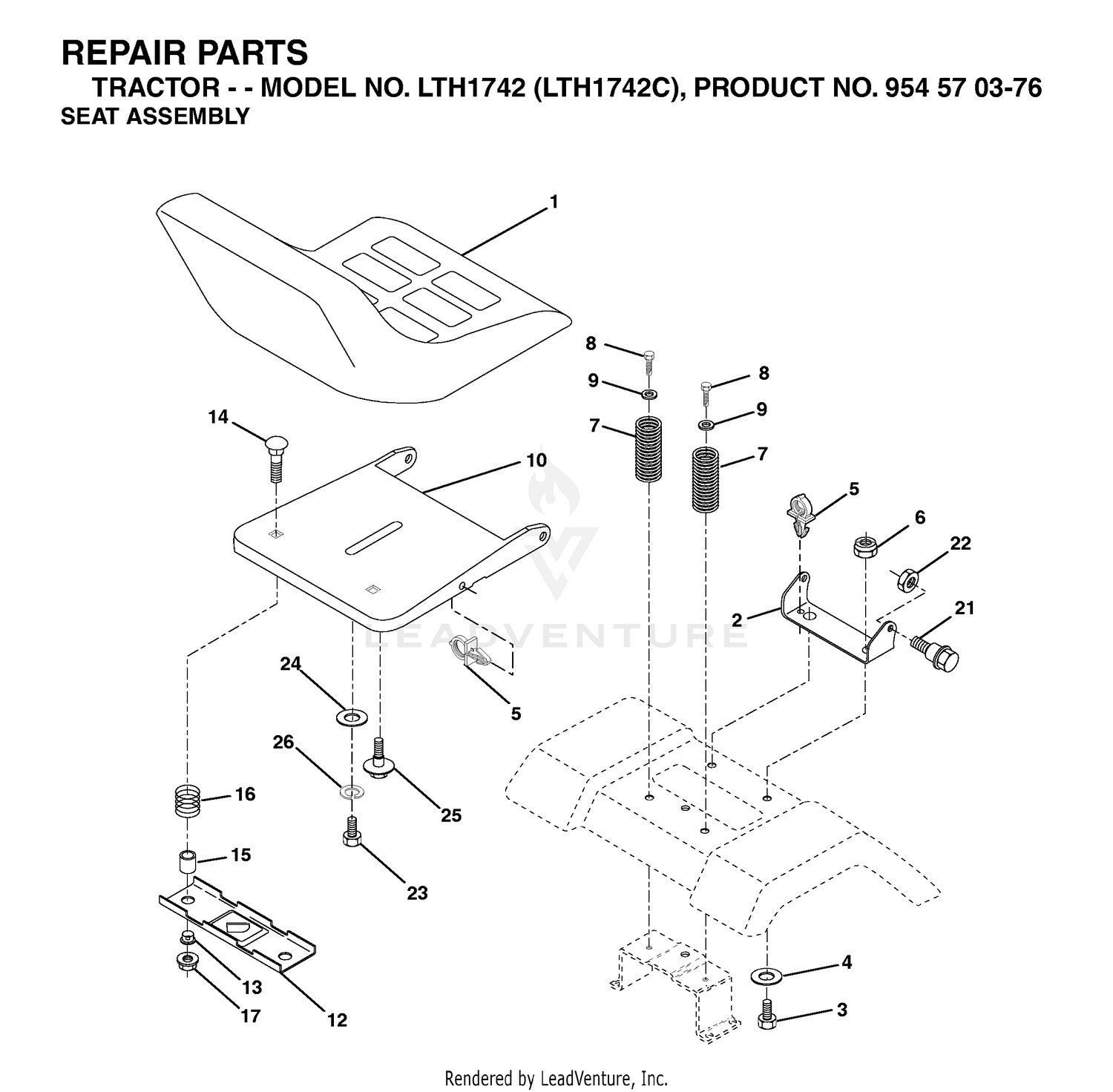

| Ref | Part Number | Description |
|---|
| 1 |
321-4 |
SCREW-HH Price: $0.99 |
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
13-3710 |
WASHER Price: $3.05 |
| 4 |
3218-3 |
NUT-JAM Price: $0.25 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
3247-8 |
SCREW-SET, HSH Price: $2.78 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
13-4890-01 |
SPROCKET ASM This part replaces 13-4890. Price: $742.67 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
56-6230 |
BEARING-ROLLER This part replaces 251-244. Price: $72.34 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
49-2610 |
BRUSH,(SET OF 2 HALVES) Price: $1,364.39 |
| 12 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
105-8534 |
SUPPORT-BRUSH This part replaces 49-2590. Price: $118.46 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
134990 |
Shaft Brush Price: Call Us |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
871110814 |
BOLT.HEX.BLACK Price: $8.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 26 |
810040800 |
LOCKWASHER Price: $5.99 |
