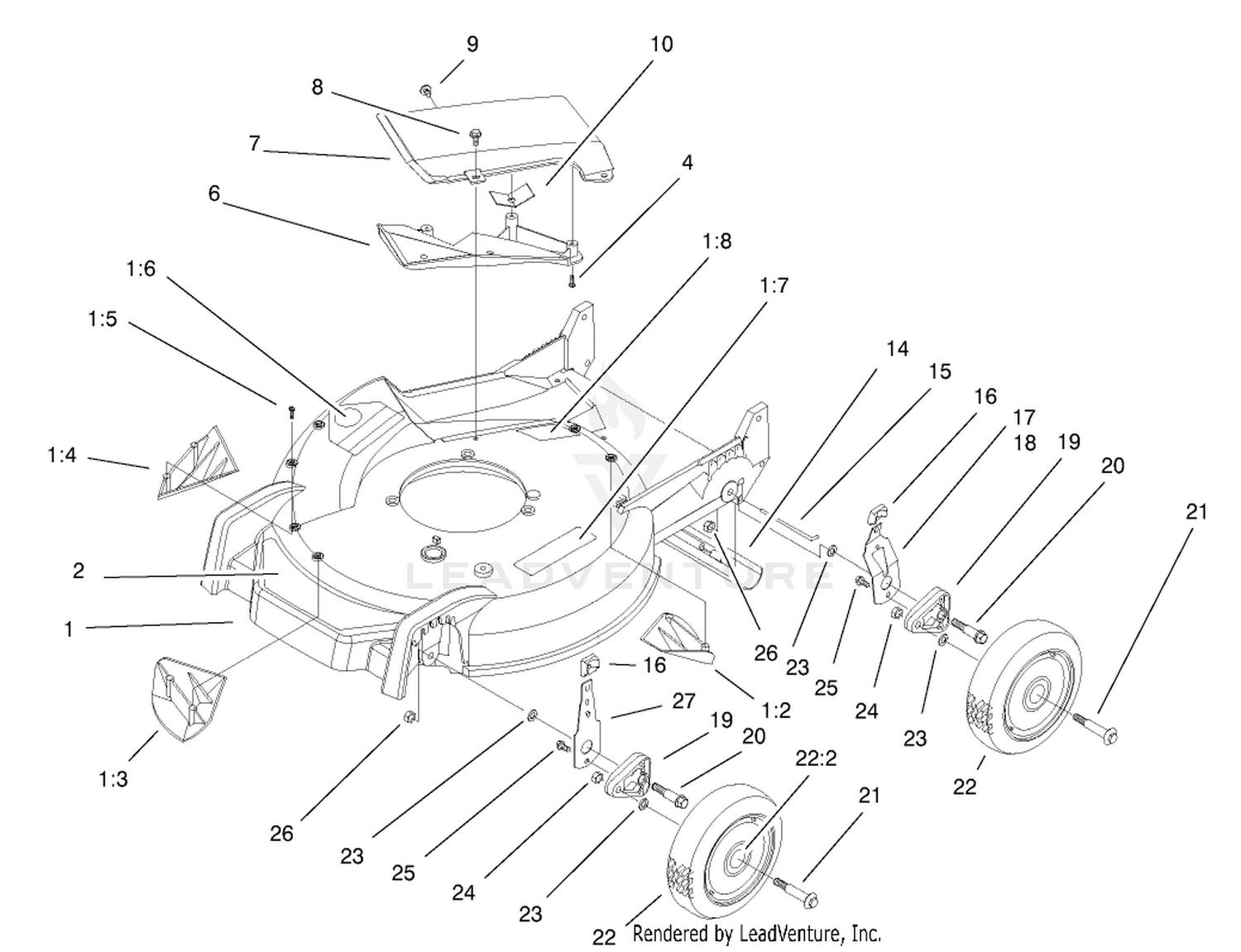

| Ref | Part Number | Description |
|---|
| 1 |
99-1704 |
HOUSING ASM Price: $401.08 |
| 2 |
99-6010 |
DECAL-DECK Price: $7.05 |
| 7 |
100-2857 |
DISCONTINUED Price: Call Us |
| 8 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 9 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 14 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 15 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 16 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 17 |
71-0571 |
LH SPRING ARM ASM Price: $11.41 |
| 18 |
71-0561 |
RH SPRING ARM ASM Price: $11.41 |
| 19 |
66-0580 |
ARM-PIVOT, FRONT Price: $11.73 |
| 20 |
66-0560 |
BOLT-SHOULDER Price: $4.19 |
| 21 |
114-3468 |
SCREW-SHOULDER This part replaces 27-6232. Price: $3.15 |
| 21 |
92-1057 |
BOLT-SHOULDER Price: $3.05 |
| 22 |
14-9989 |
WHEEL AND TIRE ASM Price: $28.44 |
| 22 |
98-7130 |
WHEEL ASM Price: $14.21 |
| 23 |
40-1940 |
WASHER Price: $1.59 |
| 24 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 24 |
603773 |
LOCKNUT Price: $2.09 |
| 25 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 26 |
3296-6 |
NUT-LOCK Price: $1.49 |
