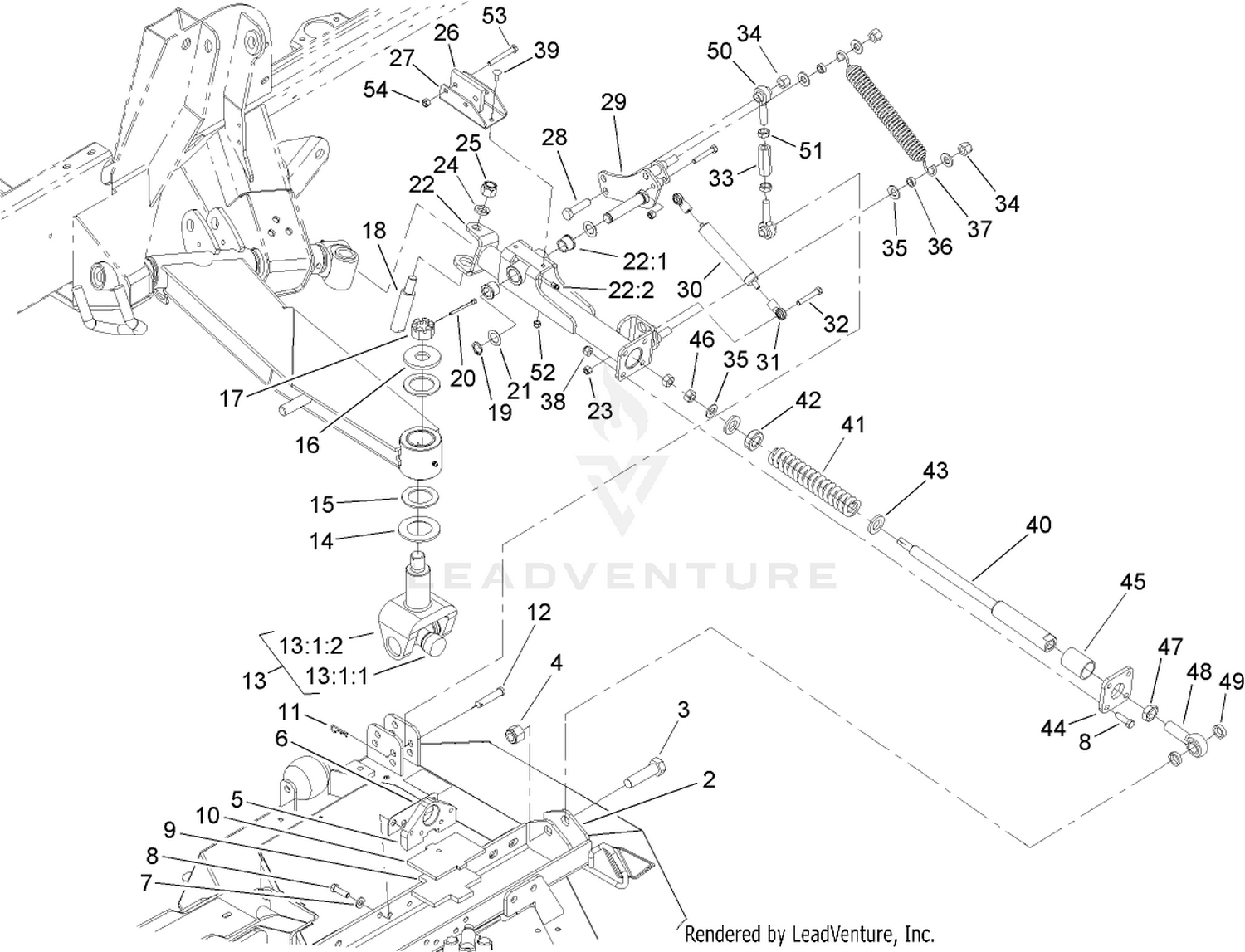

Side Deck Lift Arm and Damper Assembly
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 100-8148-03 | MOUNT-RH Price: $332.38 |
| 2 | 100-8149-03 | MOUNT-LH Price: $348.41 |
| 3 | 328-4 | SCREW-HH Price: $4.82 |
| 4 | 3296-51 | NUT-LOCK, NI Price: $3.23 |
| 5 | 104-8305-03 | MOUNT-BASE Price: $99.32 |
| 6 | 104-0731 | SHIM Price: $4.64 |
| 7 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 8 | 323-7 | SCREW-HH Price: $0.65 |
| 9 | 104-8348 | PLATE-RUBBER Price: $11.41 |
| 10 | 104-8347-03 | PLATE Price: $18.23 |
| 11 | 3290-467 | PIN-HAIR Price: $0.27 |
| 12 | 92-2739 | PIN-CLEVIS Price: $8.48 |
| 13 | 104-0705-03 | YOKE-JOINT Price: $530.60 |
| 14 | 104-0720 | SPACER Price: $35.75 |
| 15 | 104-0721 | WASHER-THRUST Price: $4.00 |
| 16 | 104-0719 | WASHER-HARDENED Price: $9.34 |
| 17 | 32136-11 | NUT-HEX, SLOT Price: $7.74 |
| 18 | 104-2281 | SHAFT-PIVOT Price: $131.91 |
| 19 | 32120-93 | RING-RETAINING Price: $2.49 |
| 20 | 3272-25 | PIN-COTTER Price: $0.89 |
| 21 | 3-6498 | WASHER-THRUST Price: $4.58 |
| 22 | 108-1471 | RH REAR ARM ASM Price: $586.89 |
| 22 | 108-1473 | LH REAR ARM ASM Price: $586.89 |
| 23 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 24 | 3253-8 | WASHER-LOCK Price: $0.47 |
| 25 | 3296-53 | NUT-LOCK, NI Price: $1.47 |
| 26 | 69-9290 | PAD-BUMPER Price: $9.52 |
| 27 | 105-4556-03 | BRACKET-BUMPER Price: $39.25 |
| 28 | 325-8 | SCREW-HH Price: $3.52 |
| 29 | 108-1475-03 | BELL CRANK-RH Price: $202.01 |
| 29 | 108-1476-03 | BELL CRANK-LH Price: $202.01 |
| 30 | 105-3249 | DAMPER Price: $176.72 |
| 31 | 104-8331 | END-ROD, SPHERICAL Price: $46.75 |
| 32 | 322-10 | SCREW-HH Price: $0.70 |
| 33 | 105-2809 | TUBE-LINK Price: $77.02 |
| 34 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 35 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 36 | 104-7521 | BUSHING Price: $3.43 |
| 37 | 104-7520 | SPRING-DAMPER Price: $49.77 |
| 38 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 39 | 3229-1 | BOLT-CARR This part replaces 3229-25. Price: $3.39 |
| 40 | 105-4548 | SHAFT-SPRING Price: $211.58 |
| 41 | 100-8138 | SPRING-COMPRESSION Price: $48.65 |
| 42 | 105-4552 | BEARING-PLASTIC Price: $25.10 |
| 43 | 105-4551 | WASHER-FLAT Price: $3.35 |
| 44 | 145-8390 | PLATE This part replaces 105-2807-03. Price: $13.74 |
| 45 | 105-4550 | BUSHING-STRAIGHT Price: $8.87 |
| 46 | 3217-9 | NUT-HH Price: $0.37 |
| 47 | 3220-7 | NUT-JAM Price: $4.09 |
| 48 | 105-2806 | END-ROD Price: $98.92 |
| 49 | 105-0756 | SPACER Price: $21.53 |
| 50 | 105-2808 | END-ROD Price: $88.58 |
| 51 | 3220-5 | NUT-JAM Price: $0.65 |
| 52 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 53 | 32136-4 | NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
