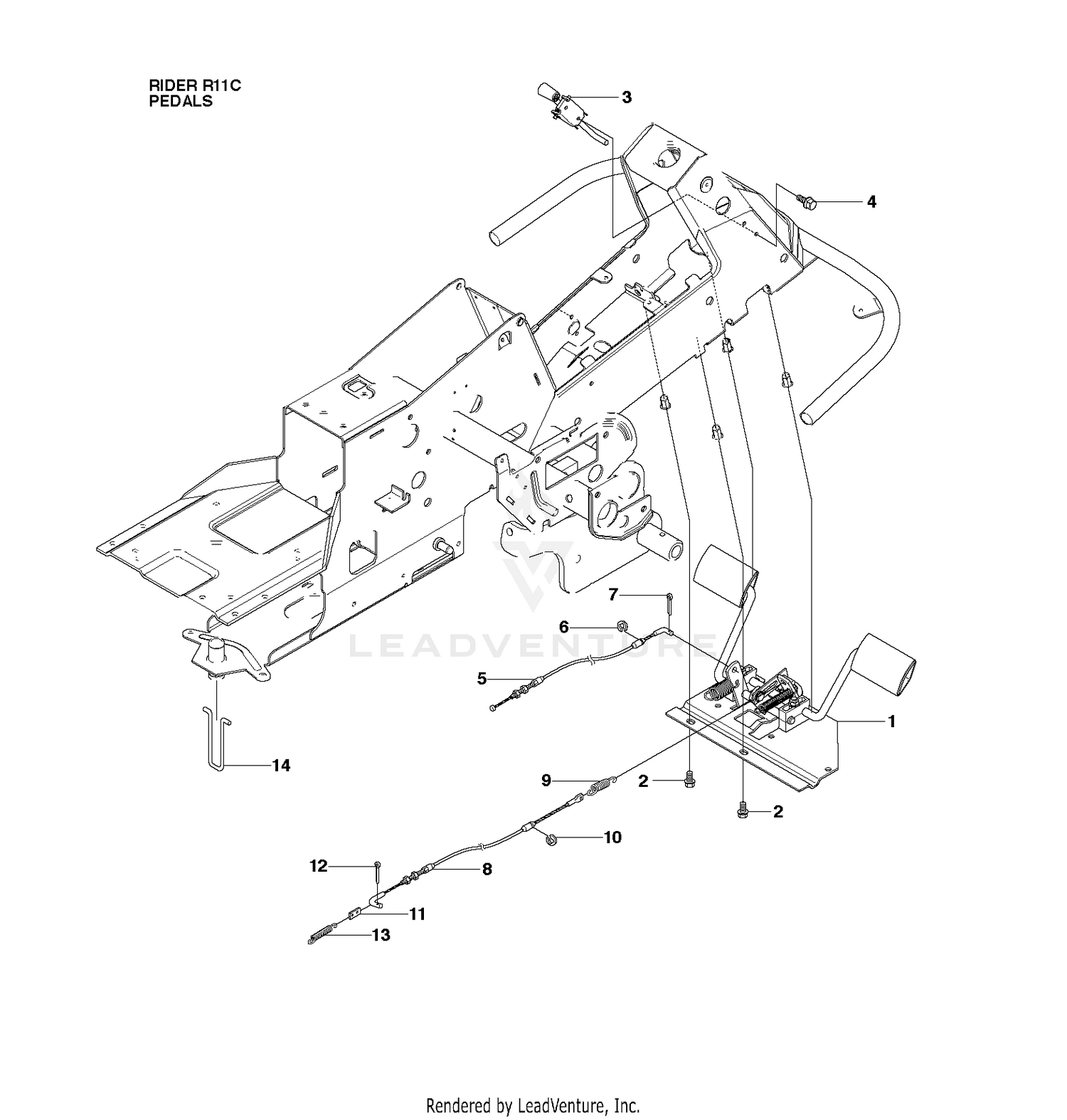

PEDALS
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544132301 | PEDAL PLATE ASSY MANUAL Price: $109.99 |
| 2 | 506570104 | BOLT Price: $4.99 |
| 3 | 544403101 | BRAKE LEVER ASSY Price: $19.99 |
| 4 | 725236461 | SCREW Price: $2.99 |
| 5 | 506952501 | CABLE Price: $49.99 |
| 7 | 721615201 | Cotter Pin Price: $1.99 |
| 8 | 506952601 | CABLE Price: $44.99 |
| 9 | 506919101 | SPRING Price: $5.99 |
| 10 | 108-6577 | INLET MANIFOLD ASM Price: $209.93 |
| 10 | 735310920 | E-RING 5 Price: $3.99 |
| 11 | 506599301 | CONNECTOR Price: $5.99 |
| 12 | 721615201 | Cotter Pin Price: $1.99 |
| 13 | 506535603 | SPRING Price: $4.99 |
| 14 | 506576401 | RETAINER Price: $4.99 |
| 20 | 98-9492 | JOINT-PIPE, BREATHER Price: $9.68 |
| 30 | 98-9609 | GASKET-MANIFOLD, INLET Price: $26.16 |
| 40 | 127-0403 | BOLT-FLANGE Price: $3.85 |
| 50 | 98-9353 | BOLT Price: $0.76 |
| 60 | 125-9063 | BOLT-SEMS Price: $1.31 |
| 70 | 107-9093 | MANIFOLD-EXHAUST Price: $313.21 |
| 80 | 99-8327 | GASKET-MANIFOLD, EXHAUST Price: $19.14 |
| 90 | 98-9588 | STUD Price: $1.87 |
| 100 | 98-9665 | NUT Price: $2.17 |
