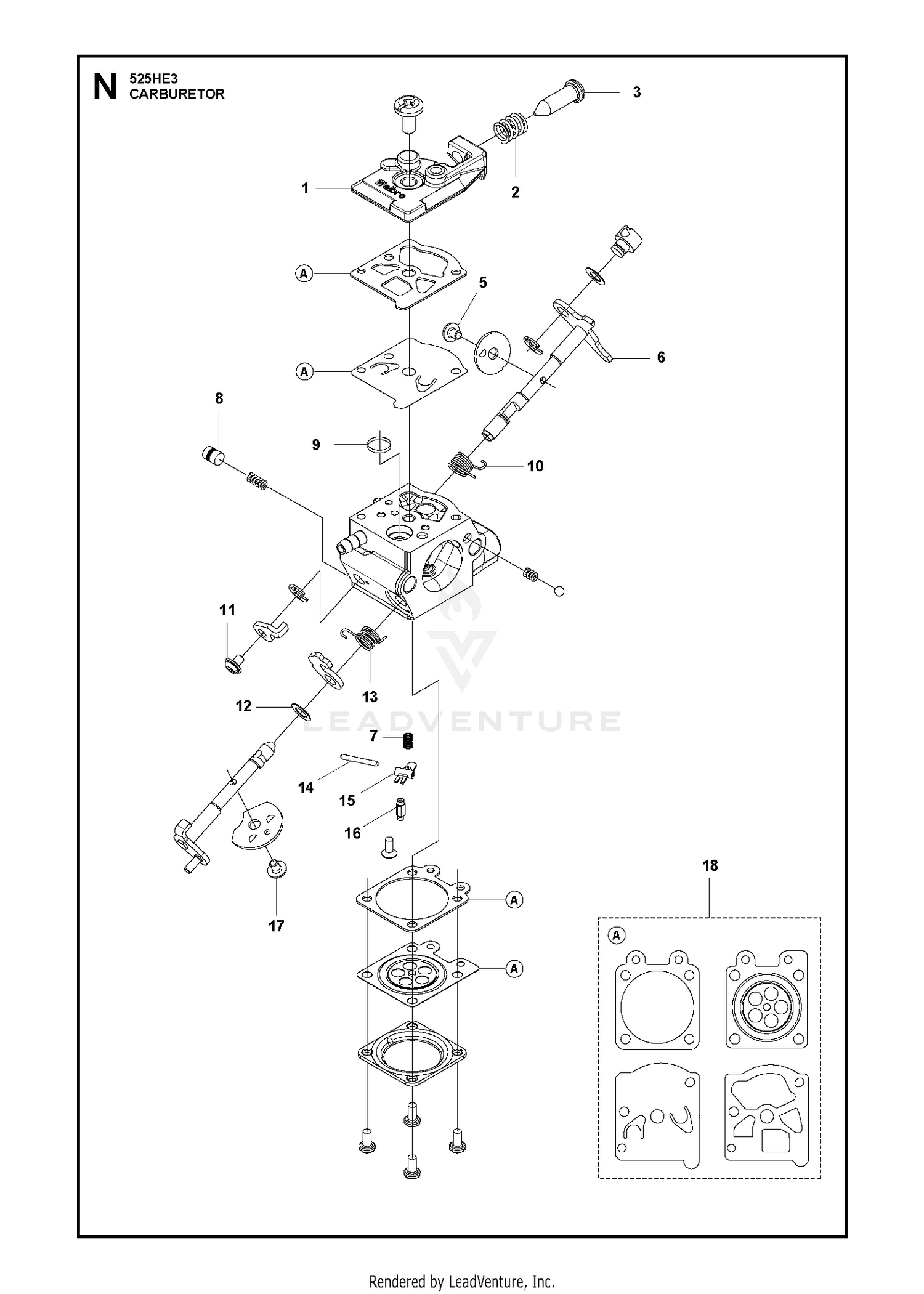

CARBURETOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 579190601 | COVER PUMP Price: $19.99 |
| 2 | 513593201 | SPRING Price: $4.99 |
| 3 | 577815701 | SCREW, IDLE Price: $8.99 |
| 5 | 520759801 | SCREW Price: $2.99 |
| 6 | 579190701 | SHAFT ASSEMBLY,THROTTLE Price: $22.99 |
| 7 | 578895401 | SPRING Price: $3.99 |
| 8 | 521578301 | PISTON This part replaces 584901201. Price: $6.99 |
| 9 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 11 | 520759801 | SCREW Price: $2.99 |
| 12 | 516524201 | WASHER Price: $2.99 |
| 13 | 579191101 | SPRING Price: $5.99 |
| 14 | 520977401 | PIN Price: $4.99 |
| 15 | 577807201 | LEVER Price: $1.99 |
| 16 | 521085401 | VALVE INLET Price: $11.99 |
| 17 | 520759801 | SCREW Price: $2.99 |
