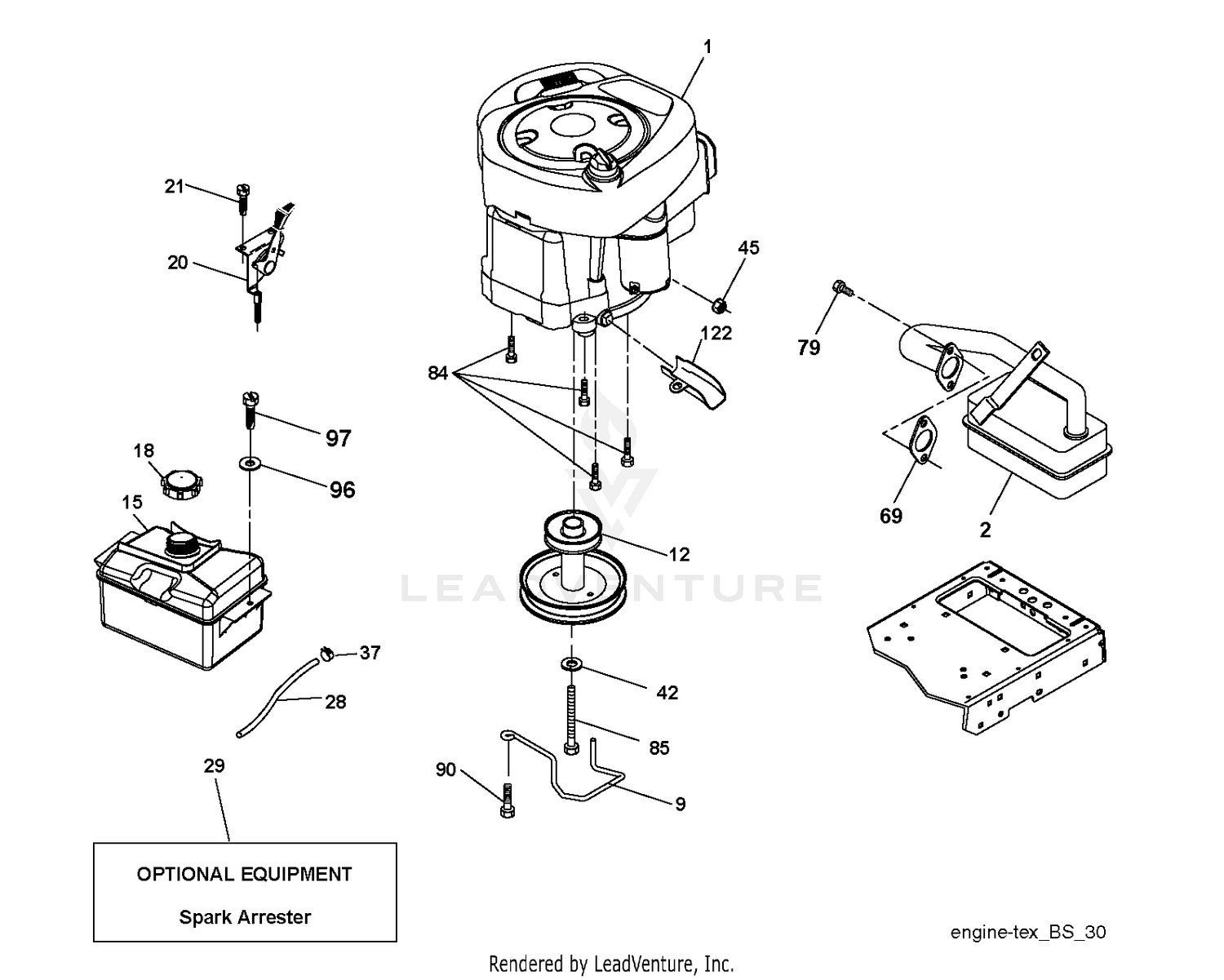

| Ref | Part Number | Description |
|---|
| 1 |
000000000 |
Price: Call Us |
| 1 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 2 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 2 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
117-8542-01 |
PLATE-SWITCH, LH Price: $12.10 |
| 8 |
117-8541-01 |
PLATE-SWITCH, RH Price: $10.51 |
| 9 |
321-3 |
SCREW-HH Price: $0.28 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 12 |
321-9 |
SCREW-HH Price: $0.27 |
| 12 |
586729001 |
PULLEY.ENGINE This part replaces 532401985. Price: $27.99 |
| 13 |
117-5606 |
HARNESS-WIRE Price: $1,352.16 |
| 14 |
115-8141 |
HARNESS-WIRE Price: $141.26 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 15 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 16 |
323-6 |
SCREW-HH Price: $0.66 |
| 17 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 18 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
115-9066 |
COVER ASM Price: $78.27 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 20 |
80-9330 |
AUDIO ALARM ASM Price: $137.61 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
