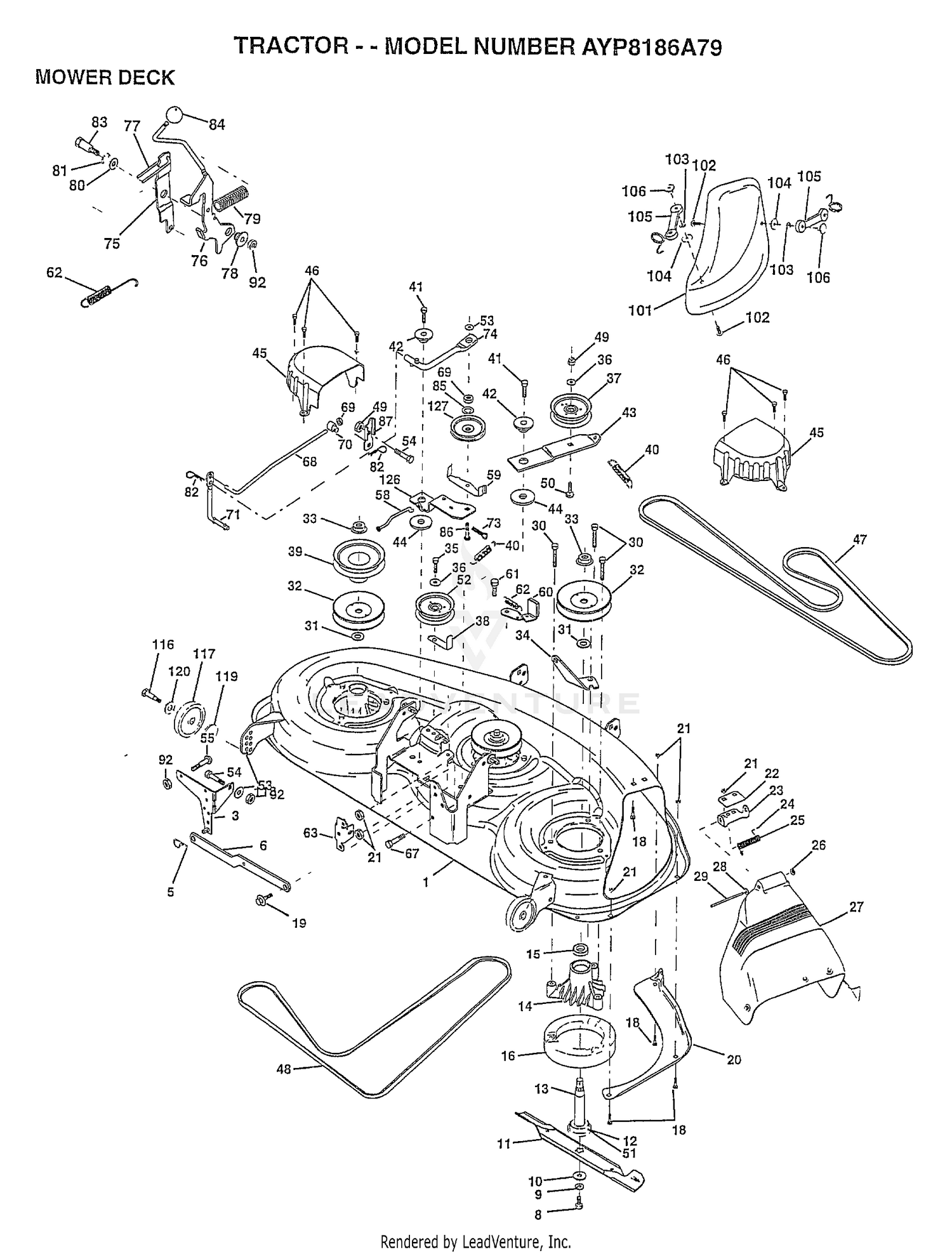

| Ref | Part Number | Description |
|---|
| 1 |
92-1354 |
CAP-END Price: $2,256.45 |
| 2 |
98-7897 |
VALVE - RELIEF This part replaces 92-1355. Price: $307.38 |
| 3 |
138457 |
BRKT.ASM.SW.44/50 Price: Call Us |
| 4 |
75-0240 |
O-RING Price: $2.36 |
| 5 |
110-6342 |
SPRING This part replaces 75-0140. Price: $9.45 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
98-7897 |
VALVE - RELIEF This part replaces 84-0550. Price: $307.38 |
| 7 |
92-1356 |
VALVE-SCREW Price: $147.12 |
| 8 |
84-0480 |
POPPET-RELIEF, CHARGE Price: $54.48 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
84-0490 |
SPRING-COMPRESSION Price: $15.55 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
92-1353 |
SHIM KIT Price: $36.78 |
| 11 |
152443 |
SUB= 918152443 Price: Call Us |
| 11 |
28-3570 |
O-RING Price: $6.06 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
84-0500 |
CHARGE RELIEF PLUG ASM Price: $37.39 |
| 13 |
137553 |
SHAFT.ASM.W/BRNG Price: Call Us |
| 13 |
75-0500 |
BEARING-NEEDLE Price: $83.78 |
| 14 |
137152 |
HOUSING.MAND.44.V Price: Call Us |
| 14 |
84-0210 |
GASKET-CAP, END Price: $27.88 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
94-3975 |
PIN This part replaces 75-0480. Price: $5.80 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
84-0460 |
SCREW-HWHTF Price: $4.27 |
| 17 |
84-0440 |
COVER-TRUNNION Price: $235.07 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 18 |
84-0430 |
O-RING Price: $6.94 |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
84-0270 |
SPACER-TRUNNION Price: $43.60 |
| 20 |
145055 |
BAFFFLE.VORTEX.46 Price: Call Us |
| 20 |
84-0570 |
SHIM-TRUNNION, COMPOSITE Price: $44.85 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 21 |
84-0260 |
BEARING-ROLLER, TAPERED Price: $135.12 |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
353-551 |
PLUG-HH Price: $18.48 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
84-0360 |
WASHER Price: $3.60 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
84-0330 |
SCREW-HH Price: $9.87 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
84-0300 |
SHAFT-PUMP Price: $416.83 |
| 27 |
157788 |
SHIELD DEFLECTOR Price: Call Us |
| 27 |
84-0310 |
DISCONTINUED Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
84-0320 |
RING-RETAINING Price: $1.32 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
84-0400 |
SEAL-LIP Price: $20.85 |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
84-0410 |
DISCONTINUED Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
28-3520 |
O-RING Price: $8.44 |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 32 |
84-0380 |
RING-RETAINING, INT. Price: $12.75 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
84-0240 |
HOUSING-PUMP Price: $1,872.02 |
| 34 |
144945 |
ANCHOR.SPRING.46 Price: Call Us |
| 34 |
84-0470 |
SEAL-LIP Price: $41.78 |
| 35 |
17490628 |
SCREW LT Price: Call Us |
| 35 |
84-0450 |
COVER-TRUNNION Price: $352.66 |
| 36 |
19131316 |
WASHER Price: Call Us |
| 36 |
84-0250 |
SWASHPLATE-VARIABLE Price: $1,011.82 |
| 37 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
75-0400 |
PLATE-THRUST Price: $41.27 |
| 38 |
75-0470 |
CYLINDER BLOCK KIT Price: $1,746.91 |
| 39 |
144917 |
PULLEY.DRV.DCK.46 Price: Call Us |
| 39 |
84-0280 |
PLATE-VALVE, RH Price: $391.57 |
| 40 |
75-0510 |
PIN Price: $8.40 |
| 41 |
17490620 |
SCREW Price: Call Us |
| 41 |
92-1358 |
DISCONTINUED Price: Call Us |
| 42 |
122052X |
SPACER RETAINER Price: Call Us |
| 42 |
92-1352 |
PLUG Price: $30.00 |
| 43 |
144949 |
ARM.IDLER.DECK.46 Price: Call Us |
| 44 |
133943 |
HARDENED WASHER Price: Call Us |
| 45 |
145059 |
COVER.MANDREL.46 Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 47 |
144959 |
BELT-V.SEC.46.KEL Price: Call Us |
| 48 |
158818 |
V BELT MOWER Price: Call Us |
| 49 |
73680600 |
SUB= 73690600 Price: Call Us |
| 50 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 51 |
153390 |
WASHER.FELT. Price: Call Us |
| 60 |
156722 |
ARM ASM BRAKE Price: Call Us |
| 61 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 62 |
131870 |
RETURN SPRING Price: Call Us |
| 67 |
74760512 |
BOLT Price: Call Us |
| 68 |
156487 |
SUB= 157060 Price: Call Us |
| 69 |
73350600 |
NUT Price: Call Us |
| 70 |
142028 |
TRUNION ADJ Price: Call Us |
| 71 |
133551 |
PIVOT ROD Price: Call Us |
| 72 |
19131312 |
WASHER Price: Call Us |
| 73 |
76020412 |
COTTER PIN Price: Call Us |
| 74 |
156474 |
LINK CLUTCH Price: Call Us |
| 75 |
159145 |
ARM EXTENSION Price: Call Us |
| 76 |
154809 |
LEVER ASM-CLUTCH Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
127498 |
BUSHING Price: Call Us |
| 79 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 80 |
121748X |
WASHER Price: Call Us |
| 81 |
12000029 |
RING Price: Call Us |
| 82 |
4497H |
RETAINER M Price: Call Us |
| 83 |
128903 |
SHOULDER BOLT Price: Call Us |
| 84 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 85 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 87 |
158373 |
BRACKET.EXTENSION Price: Call Us |
| 88 |
74780616 |
BOLT Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 101 |
145579 |
COVER.MULCHING. Price: Call Us |
| 102 |
71161010 |
SCREW Price: Call Us |
| 103 |
10071000 |
LOCKWASHER Price: Call Us |
| 104 |
19061216 |
WASHER #10 Price: Call Us |
| 105 |
130758 |
SUB= 160793 Price: Call Us |
| 106 |
2029J |
WELDNUT Price: Call Us |
| 116 |
4898H |
BOLT M Price: Call Us |
| 117 |
105455X |
WHEEL.GAGE.BLK.PL Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 120 |
19171512 |
WASHER Price: Call Us |
| 126 |
156472 |
ARM IDLER Price: Call Us |
| 127 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
