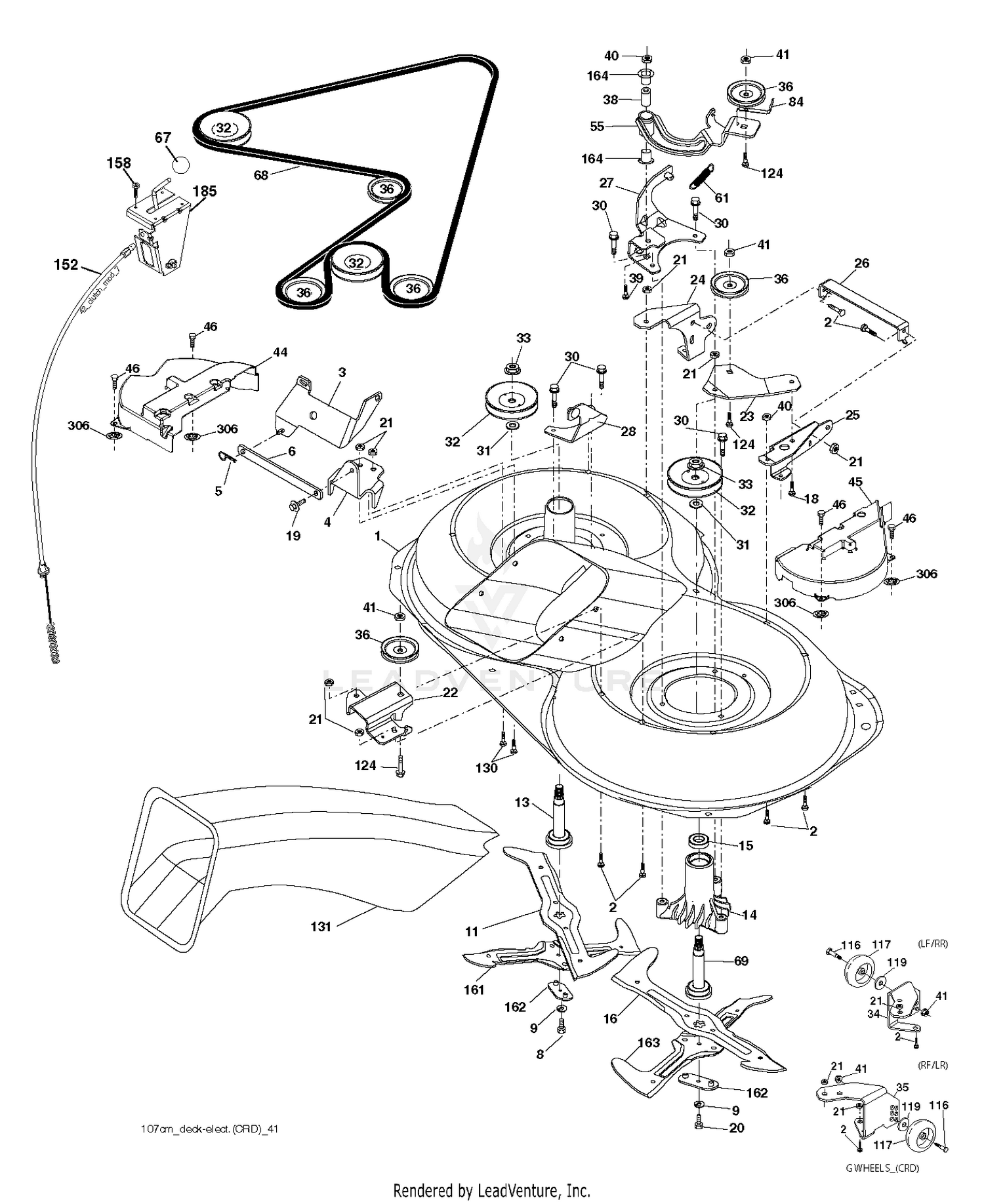

| Ref | Part Number | Description |
|---|
| 1 |
532169160 |
HOUSING Price: Call Us |
| 2 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $14.99 |
| 4 |
532169167 |
BRACKET Price: $14.76 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 6 |
532165557 |
BAR SWAY Price: $6.99 |
| 8 |
532181712 |
Bolt 3/8-24 x 1.25 Gr. 8 Patched Price: $1.99 |
| 9 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 11 |
532180583 |
BLADE.3N1.LH.CRD Price: $24.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
532180584 |
BLADE.3N1.RH.CRD Price: $49.99 |
| 16 |
692171 |
Crankshaft Price: Call Us |
| 17 |
690752 |
Bearing-Ball Price: Call Us |
| 18 |
872110606 |
BOLT Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
532181713 |
Bolt 3/8-24 x 1.25 Gr. 8 Ptch Price: $1.99 |
| 21 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 22 |
532169165 |
BRACKET Price: $11.99 |
| 23 |
532169166 |
BRACKET Price: $22.99 |
| 24 |
532413436 |
Price: $7.99 |
| 25 |
532400105 |
Price: $9.99 |
| 25 |
808326 |
Piston ASM (Standard) Price: Call Us |
| 26 |
532400110 |
Brace Support Susp Frt CRD Price: $3.99 |
| 26 |
807889 |
Ring Set (Standard) Price: Call Us |
| 27 |
532169172 |
BRACKET Price: $17.99 |
| 27 |
690683 |
Lock-Pin, Piston Price: Call Us |
| 28 |
532169168 |
Price: $9.99 |
| 28 |
807886 |
Pin-Piston Price: Call Us |
| 29 |
807900 |
Rod-Connecting (Standard) Price: Call Us |
| 30 |
532173984 |
SCREW, WASHER HEAD Price: $2.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532198145 |
Price: $5.99 |
| 32 |
690698 |
Screw Price: Call Us |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
532400103 |
Price: $6.99 |
| 35 |
532400104 |
Price: $5.99 |
| 36 |
532146763 |
PULLEY.IDLER.4.25 Price: $14.99 |
| 38 |
532169851 |
SPACER Price: $4.99 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 41 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 44 |
532432773 |
Price: Call Us |
| 45 |
532432772 |
Price: Call Us |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.49 |
| 46 |
691557 |
Camshaft Price: Call Us |
| 55 |
532169849 |
ARM IDLER Price: $24.99 |
| 61 |
532199487 |
Price: $2.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532402009 |
HEX-BELT 107 MOWER Price: $74.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $35.99 |
| 84 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8 Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 119 |
819132012 |
WASHER Price: $2.99 |
| 124 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 130 |
872110506 |
BOLT Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $57.99 |
| 146 |
691639 |
Key-Timing Price: Call Us |
| 152 |
532176074 |
Cable Clutch Price: Call Us |
| 158 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 161 |
532446993 |
Price: $24.99 |
| 162 |
532446995 |
Price: $1.99 |
| 163 |
532180425 |
Price: $47.99 |
| 164 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $33.99 |
| 306 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 377 |
808095 |
Key-Woodruff Price: Call Us |
| 598 |
807625 |
Shim-Play, End Price: Call Us |
| 741 |
691530 |
Gear-Timing Price: Call Us |
| 807994 |
Ring |
Set (.010 O.S.) Price: Call Us 807994 |
| 807995 |
Ring |
Set (.020 O.S.) Price: Call Us 807995 |
| 807996 |
Ring |
Set (.030 O.S.) Price: Call Us 807996 |
| 808336 |
Piston |
ASM (.010 O.S.) Price: Call Us 808336 |
| 808337 |
Piston |
ASM (.020 O.S.) Price: Call Us 808337 |
| 808338 |
Piston |
ASM (.030 O.S.) Price: Call Us 808338 |
