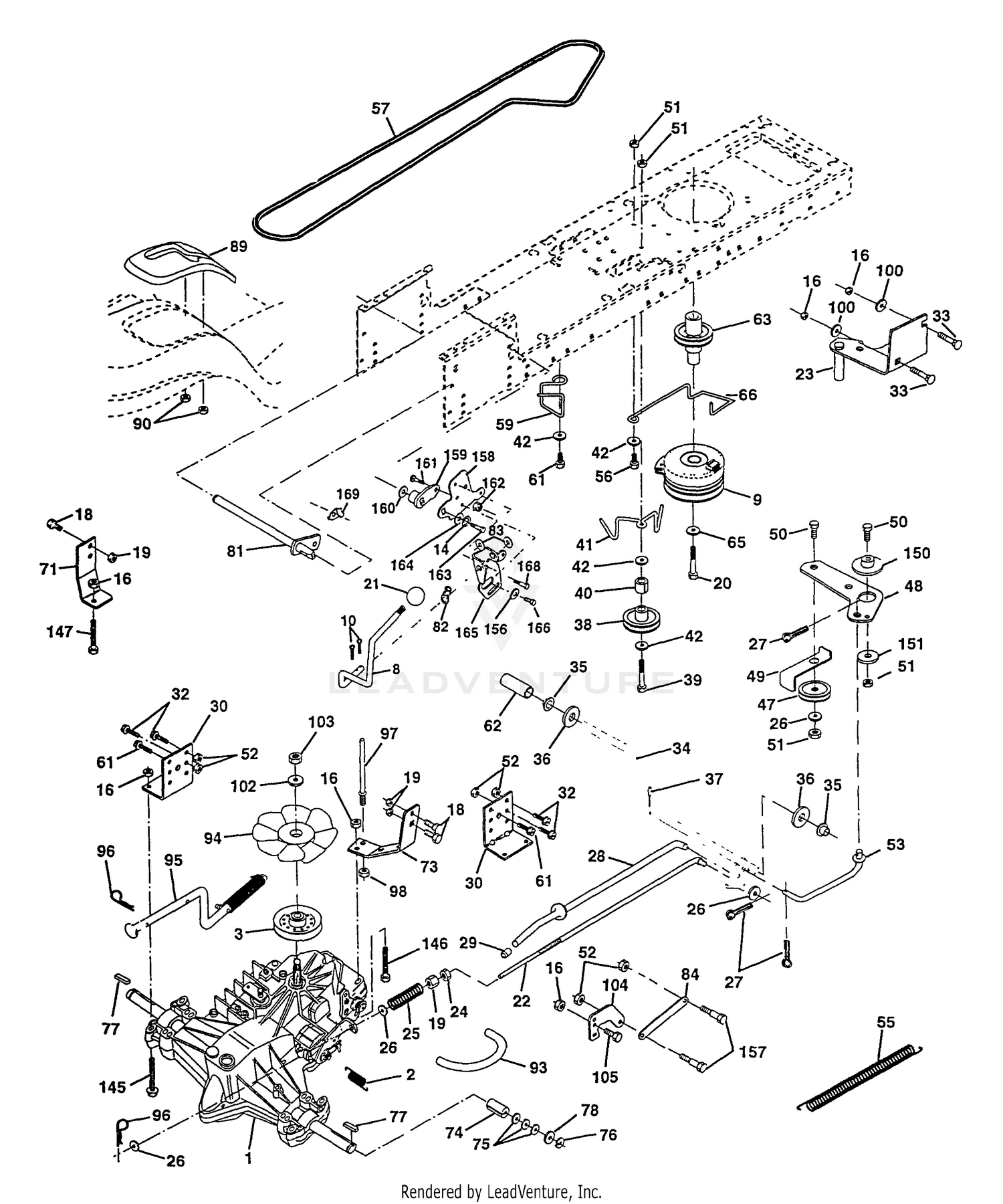

| Ref | Part Number | Description |
|---|
| 1 |
21-1880 |
GRIP-HANDLE Price: $11.67 |
| 2 |
142431 |
Spring, Return, Brake Price: Call Us |
| 2 |
84-8500-01 |
LEVER-PTO This part replaces 21-1550. Price: $107.85 |
| 3 |
143995 |
Pulley, Hydro 0650 LT/CRD Price: Call Us |
| 3 |
21-1600 |
CLAMP-LEVER, PTO Price: $279.65 |
| 4 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 7 |
21-2080 |
DISCONTINUED Price: Call Us |
| 8 |
165866 |
Rod Shift Price: Call Us |
| 8 |
23-2020 |
DISCONTINUED Price: Call Us |
| 9 |
160889 |
Clutch Electric Price: Call Us |
| 9 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 10 |
106-4383 |
BELT-V, BANDED This part replaces 23-1820. Price: $40.02 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 CAD Price: Call Us |
| 11 |
21-0230 |
PULLEY-PTO Price: $409.71 |
| 12 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 13 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 14 |
10040400 |
Washer Lock Hvy. Helical Price: Call Us |
| 14 |
3219-7 |
NUT-HEX Price: $1.53 |
| 15 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 16 |
23-1980 |
DISCONTINUED Price: Call Us |
| 16 |
73800500 |
Nut Lock Hex W/Ins 5/16-18 Unc P Price: Call Us |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
3296-26 |
NUT-LOCK, NI Price: $2.99 |
| 18 |
74780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 Price: Call Us |
| 19 |
3256-4 |
WASHER-FLAT This part replaces 3256-36. Price: $0.28 |
| 19 |
73800600 |
Nut Lock Hex W/Wsh 3/8-16 Unc Price: Call Us |
| 20 |
150280 |
Bolt Hex 7/16-20 x 4-1/4 Ga. 5 Price: Call Us |
| 20 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 21 |
121274X |
Knob, Deluxe 1/2-13 Price: Call Us |
| 21 |
251-252 |
BEARING Price: $98.35 |
| 22 |
145627 |
Rod, Brake Hydro Price: Call Us |
| 22 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 23 |
154978 |
Bracket Asm Mtg Cl Price: Call Us |
| 23 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 24 |
23-2010 |
DISCONTINUED Price: Call Us |
| 24 |
73350600 |
Nut Price: Call Us |
| 25 |
100-6564 |
DRIVESHAFT ASM This part replaces 21-3090. Price: $924.10 |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 26 |
19131316 |
Washer Price: Call Us |
| 26 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 27 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 28 |
145204 |
Rod, Parking Brake Price: Call Us |
| 29 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 29 |
71673 |
Cap, Parking Brake Price: Call Us |
| 30 |
130807 |
Bracket, Transaxle Price: Call Us |
| 30 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 Unc x 3/4 Price: Call Us |
| 33 |
72140506 |
Bolt 5/16-18 x 3/4 Price: Call Us |
| 34 |
155071 |
Shaft, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Pin, Roll (AYP part number) Price: Call Us |
| 38 |
131494 |
Pulley, Idler, Flat (AYP part number) Price: Call Us |
| 39 |
74760644 |
Bolt Price: Call Us |
| 40 |
4470J |
Spacer, Split Price: Call Us |
| 41 |
165838 |
Keeper, Belt Retainer Price: Call Us |
| 42 |
19131312 |
Washer 13/32 x 13/16 x 12 Gauge Price: Call Us |
| 47 |
127783 |
Pulley, idler, V-Groove (AYP part number) Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
74760624 |
Bolt (AYP part number) Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 UNC Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 UNC Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
74760620 |
Bolt Fin Hex 3/8-16 UNC x 1-1/4 Price: Call Us |
| 57 |
140294 |
V-Belt, Ground Drive Price: Call Us |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $14.99 |
| 61 |
17490612 |
Screw Thdrol. 3/8-16 x 3/4 Ty. TT Price: Call Us |
| 62 |
8883R |
Cover, Pedal Price: Call Us |
| 63 |
140186 |
Pulley, Engine Price: Call Us |
| 64 |
71170764 |
Bolt, Hex (AYP part number) Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 71 |
140158 |
Strap Torque Lh Hydro Price: Call Us |
| 73 |
156347 |
Strap Torque Rh Hydro Price: Call Us |
| 74 |
121199X |
Spacer, Split Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Gauge Price: Call Us |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Gauge Price: Call Us |
| 81 |
165591 |
Shaft Asm. Cross Price: Call Us |
| 82 |
165711 |
Spring Torsion Price: Call Us |
| 84 |
165815 |
Link, Transaxle Price: Call Us |
| 89 |
164890 |
Console, Shift Price: Call Us |
| 90 |
124346X |
Nut Self Thd Wsh-Hd 1/4 Zinc Price: Call Us |
| 93 |
142564 |
Line Fuel Hydro 4" Price: Call Us |
| 94 |
140462 |
Fan, Hydro 7" Price: Call Us |
| 95 |
532167696 |
CONTROL.ASM.BYPASS.HYDRO.99 This part replaces 532144643. Price: $8.99 |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 97 |
140469 |
Keeper Belt Rh Hydro 0750. 18/20" Price: Call Us |
| 98 |
73510600 |
Nut Keps Hex 3/8-16 Unc Price: Call Us |
| 100 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 102 |
141322 |
Washer Beliville .501D x 1.50D Price: Call Us |
| 103 |
73940800 |
Nut, Hex, Jam Toplock 1/2-20 UNF Price: Call Us |
| 104 |
140156 |
Arm, Control Hydro Price: Call Us |
| 105 |
71070516 |
Screw Cap Hex 5/16 x 18 x 1 Price: Call Us |
| 145 |
74490540 |
Bolt, Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 146 |
74490536 |
Bolt Hex Flghd 5/16-18 x 2-1/4 Price: Call Us |
| 147 |
74490524 |
Bolt Hex Flghd 5/16-18 x 1-1/2 Price: Call Us |
| 150 |
165850 |
Bushing Bellcrank Grd Drive Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16 ID x 1 x .125 Price: Call Us |
| 157 |
153236 |
Bolt shoulder 5/16-18 UNC-2a (AYP part number) Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
165494 |
Hub Tapered Flange Shift LT (AYP part number) Price: Call Us |
| 160 |
19292016 |
Washer 29/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 Unc (AYP part number) Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5 Price: Call Us |
| 164 |
19091010 |
Washer 5/8 x .281 x 10 Ga. (AYP part number) Price: Call Us |
| 166 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 167 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
