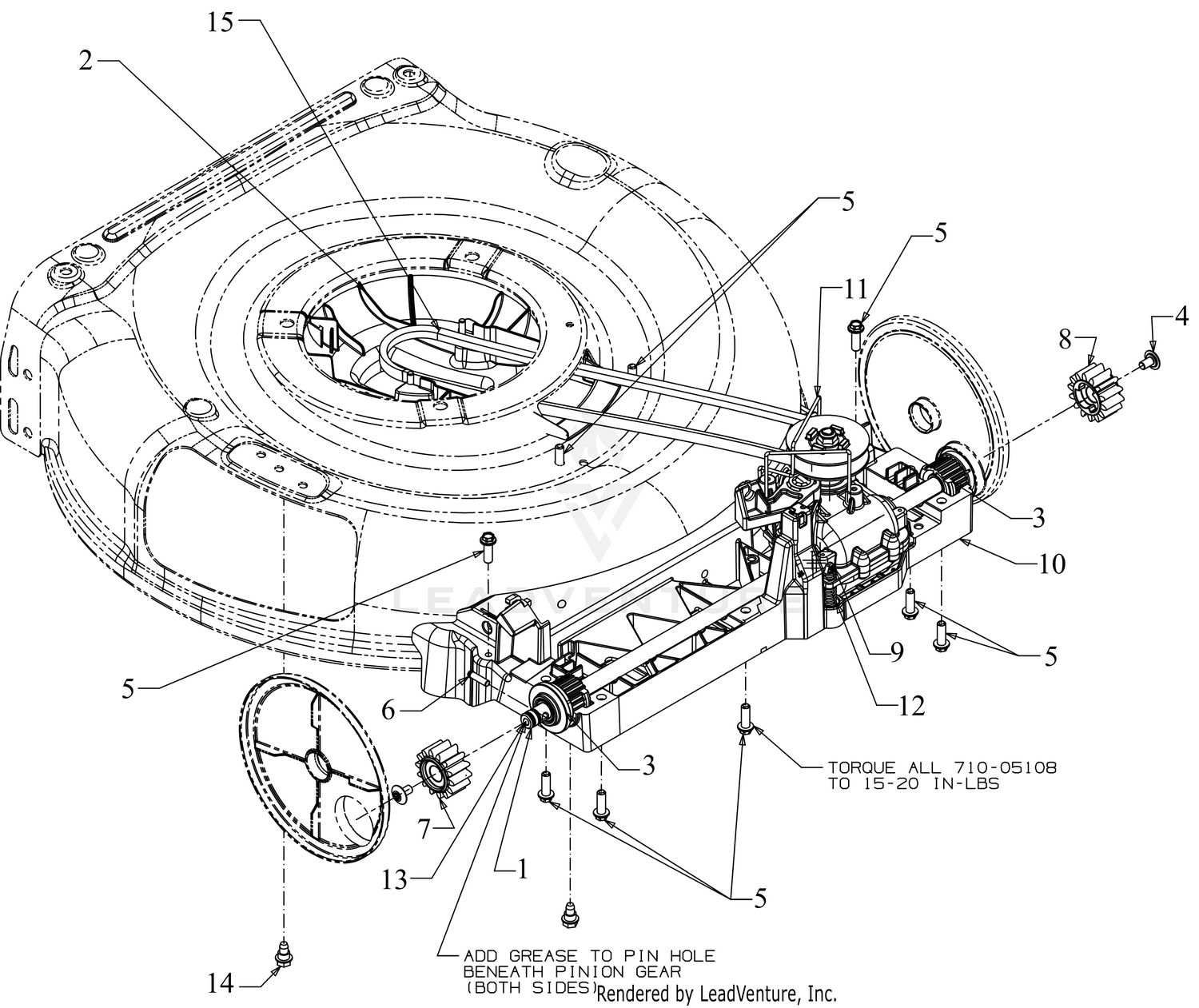

| Ref | Part Number | Description |
|---|
| 1 |
707-04409B |
SHIFT FORK Price: $9.28 |
| 1 |
710-04329 |
SCREW .159 x .610 Price: $4.13 |
| 1 |
710-04374 |
SCREW .159 x .43 Price: $3.24 |
| 1 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 1 |
715-0129 |
SPRING PIN1/8 x .812 Price: $4.19 |
| 1 |
715-04103 |
DOWEL PIN Price: $3.13 |
| 1 |
721-04107A |
OIL SEAL Price: $3.95 |
| 1 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 936-0272. Price: $4.37 |
| 1 |
736-04224 |
FLAT WASHER .508X1.000X.040 Price: $3.70 |
| 1 |
741-04116 |
BALL BEARING Price: $6.90 |
| 1 |
753-09444 |
TRANSMISSION KIT (SP FWD 53CM WALK) This part replaces 918-04881A. Price: $130.17 |
| 1 |
911-04547 |
INPUT WORM SHAFT Not Available Price: |
| 1 |
936-0117 |
FLAT WASHER Price: $6.20 |
| 2 |
715-04109 |
PIN Price: $3.25 |
| 2 |
931-04535C |
ENGINE BAFFLE ASSEMBLY This part replaces 931-04535B. Price: $12.58 |
| 3 |
741-0604A |
SLEEVE BEARING Price: $11.31 |
| 3 |
941-00019 |
SPHERICAL BEARING ASSEMBLY Price: $5.78 |
| 4 |
710-04531 |
SCREW 1/4-20 x .39 Price: $4.42 |
| 5 |
710-05108 |
SCREW 1/4 x .750 Price: $3.19 |
| 6 |
715-04099 |
DOWEL PIN Price: $3.65 |
| 7 |
917-04801 |
SPUR GEAR 14T R Price: $8.34 |
| 8 |
917-04802 |
SPUR GEAR 14T L Price: $8.03 |
| 9 |
731-07355 |
SPRING COMPRESSION Price: $4.99 |
| 10 |
731-07789A |
LOWER TRAY This part replaces 731-07789. Price: $29.05 |
| 11 |
732-04675B |
TRANSMISSION WIRE This part replaces 732-04675A. Price: $3.48 |
| 12 |
732-04704 |
COMPRESSION SPRING Price: $3.76 |
| 14 |
738-04502 |
SHOULDER SCREW 1/4-20 x .50 Price: $3.75 |
| 15 |
954-04260 |
V-BELT 3L x 34.18 Price: $26.49 |
