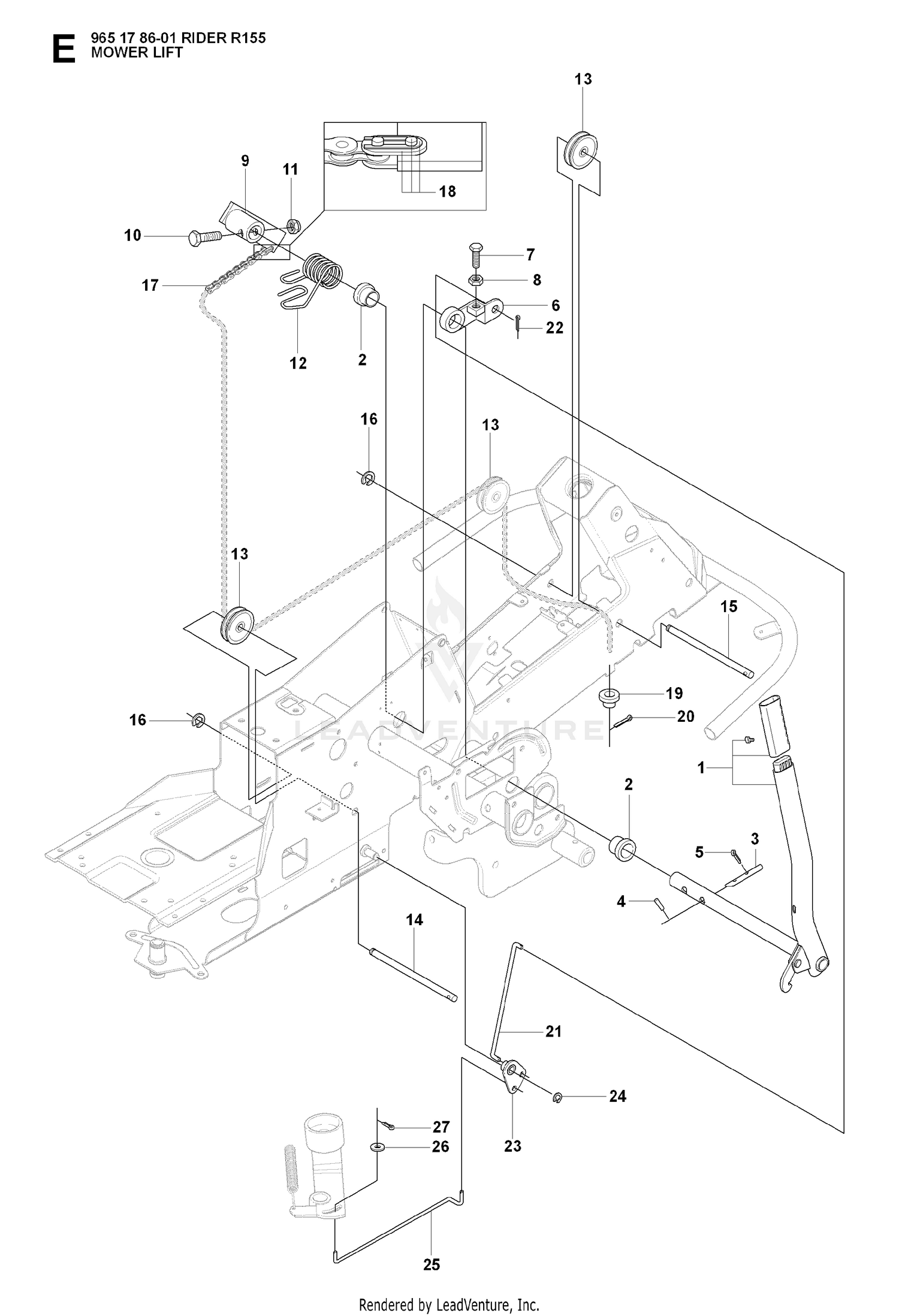

MOWER LIFT / DECK LIFT
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 104-3542 | SPIDER Price: $67.38 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 104-3541 | HUB-SPIDER Price: $130.30 |
| 3 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 4 | 127-3694 | HYD MOTOR ASM Price: $968.32 |
| 4 | 721125930 | PIN Price: $2.99 |
| 5 | 3234-42 | SCREW-HHF Price: $1.10 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 140-5807 | RH LIFT ARM ASM This part replaces 120-8878. Price: $737.14 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 140-5808 | LH LIFT ARM ASM This part replaces 120-8879. Price: $714.29 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 120-8802 | HYD CYLINDER ASM Price: $602.65 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 120-5575 | PIN Price: $24.69 |
| 9 | 506905401 | Lever Price: $47.37 |
| 10 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 21-3001 | NUT-JAM Price: $10.04 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 12 | 86-8101-01 | JOINT-BALL, LH Price: $64.64 |
| 13 | 3272-12 | PIN-COTTER Price: $0.25 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 14 | 140-5809 | SUPPORT-HUB This part replaces 93-4583-01. Price: $40.20 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 114-8417 | NUT-HF, NI Price: $0.87 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 324-19 | SCREW-HH Price: $1.29 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 120-8893 | PLATE-SENSOR Price: $12.11 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 18 | 3230-23 | SCREW-CARR Price: $0.89 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 19 | 506905901 | BUSHING Price: $20.99 |
| 20 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 20 | 721618701 | COTTER PIN Price: $3.99 |
| 21 | 104-0108 | U-BOLT Price: $7.10 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 22 | 95-6231 | CHAIN-HOC Price: $14.75 |
| 23 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 24 | 3217-9 | NUT-HH Price: $0.37 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 3296-25 | NUT-LOCK, NI Price: $1.34 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 283-55 | PIN-CLEVIS Price: $11.14 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 3290-467 | PIN-HAIR Price: $0.27 |
| 27 | 721618301 | Split Pin Price: $1.99 |
| 28 | 322-17 | SCREW-HH Price: $2.62 |
| 29 | 104-8331 | END-ROD, SPHERICAL Price: $46.75 |
| 30 | 105-3249 | DAMPER Price: $176.72 |
| 31 | 115-5455 | END-ROD, CLEVIS Price: $22.89 |
| 32 | 115-5454 | PIN-SPRING Price: $5.97 |
| 33 | 302-5 | FITTING-GREASE Price: $0.59 |
| 34 | 115-2142 | SPACER Price: $20.16 |
| 35 | 87-7480 | WASHER Price: $1.26 |
| 36 | 112-6957 | WASHER-HARDENED Price: $1.37 |
