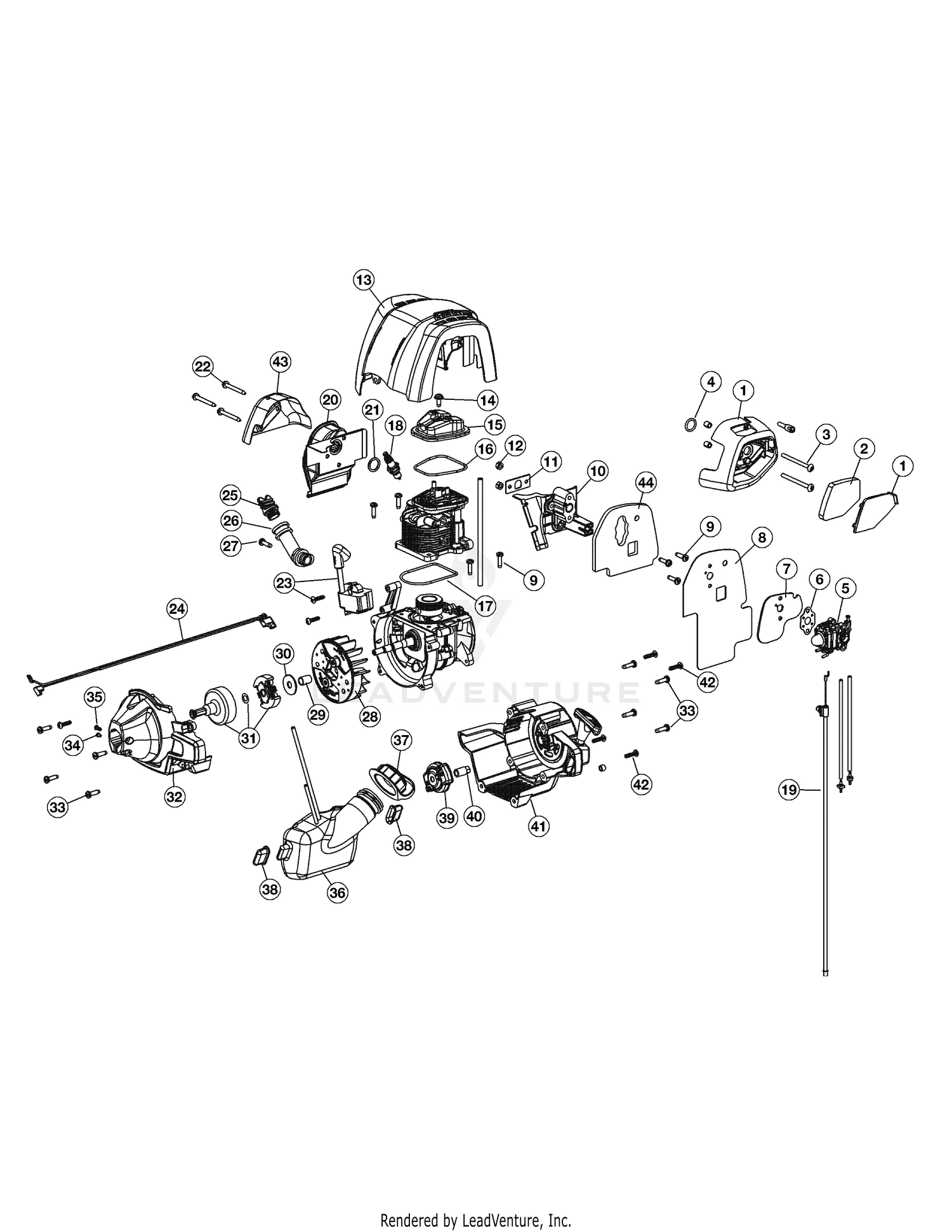

| Ref | Part Number | Description |
|---|
| 2 |
753-06085 |
Air Filter Price: $3.05 |
| 3 |
710-04517 |
Screw Price: $4.71 |
| 4 |
791-181751 |
Carburetor O-Ring Price: $3.92 |
| 5 |
753-06083 |
Carburetor Assembly Price: $46.32 |
| 6 |
791-181709 |
Carburetor Gasket Price: $4.30 |
| 7 |
753-06103 |
HEAT SINK Not Available Price: |
| 8 |
753-06082 |
Carburetor Baffle Price: $3.39 |
| 9 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 10 |
753-05904 |
Insulator Price: $7.25 |
| 11 |
753-05673 |
Insulator Gasket Price: $9.07 |
| 12 |
712-04099 |
Nut Price: $5.94 |
| 13 |
753-06107 |
ENGINE COVER Not Available Price: |
| 14 |
791-181025 |
Screw Price: $2.44 |
| 15 |
753-05901 |
Valve Cover Price: $7.13 |
| 16 |
753-05902 |
Valve O-Ring Price: $4.58 |
| 17 |
753-05910 |
Cylinder O-Ring Price: $2.65 |
| 18 |
794-00082 |
Spark Plug This part replaces 794-00042. Price: $6.35 |
| 19 |
753-06081 |
THROTTLE CABLE Not Available Price: |
| 20 |
753-06080 |
MUFFLER ASSEMBLY AC5 Not Available Price: |
| 21 |
753-05244 |
Muffler Gasket Price: $5.11 |
| 22 |
710-04809 |
SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 23 |
753-05907 |
Module Assembly Price: $45.78 |
| 24 |
753-06086 |
LEAD WIRES Not Available Price: |
| 25 |
753-05408 |
Oil Plug (Incl. 5) This part replaces 753-05400. Price: $25.95 |
| 27 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 28 |
753-05815 |
FLYWHEEL AC4 Not Available Price: |
| 29 |
753-05814 |
Spacer Price: $3.58 |
| 30 |
9162-1 |
Clutch Washer Price: $3.91 |
| 31 |
753-05860 |
Clutch Assembly Price: $22.50 |
| 32 |
753-06094 |
CLUTCH COVER ASSEMBLY Not Available Price: |
| 33 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 34 |
791-182519 |
Anti-rotation Screw Price: $4.37 |
| 35 |
753-04291 |
SCREW:CLMPNG W/NUT Not Available Price: |
| 37 |
753-05289 |
Fuel Cap Price: $20.00 |
| 38 |
753-05259 |
Fuel Tank Pad Price: $5.72 |
| 39 |
753-06091 |
Pawl Assembly Price: $7.90 |
| 40 |
753-06104 |
Electric Start Adapter Price: $3.61 |
| 41 |
753-06108 |
Starter Cover Assembly Not Available Price: |
| 42 |
710-04194 |
Screw Price: $3.66 |
| 43 |
753-06101 |
MUFFLER SHLD Not Available Price: |
| 44 |
753-06122 |
HEAT SHLD CARB AC5 Not Available Price: |
