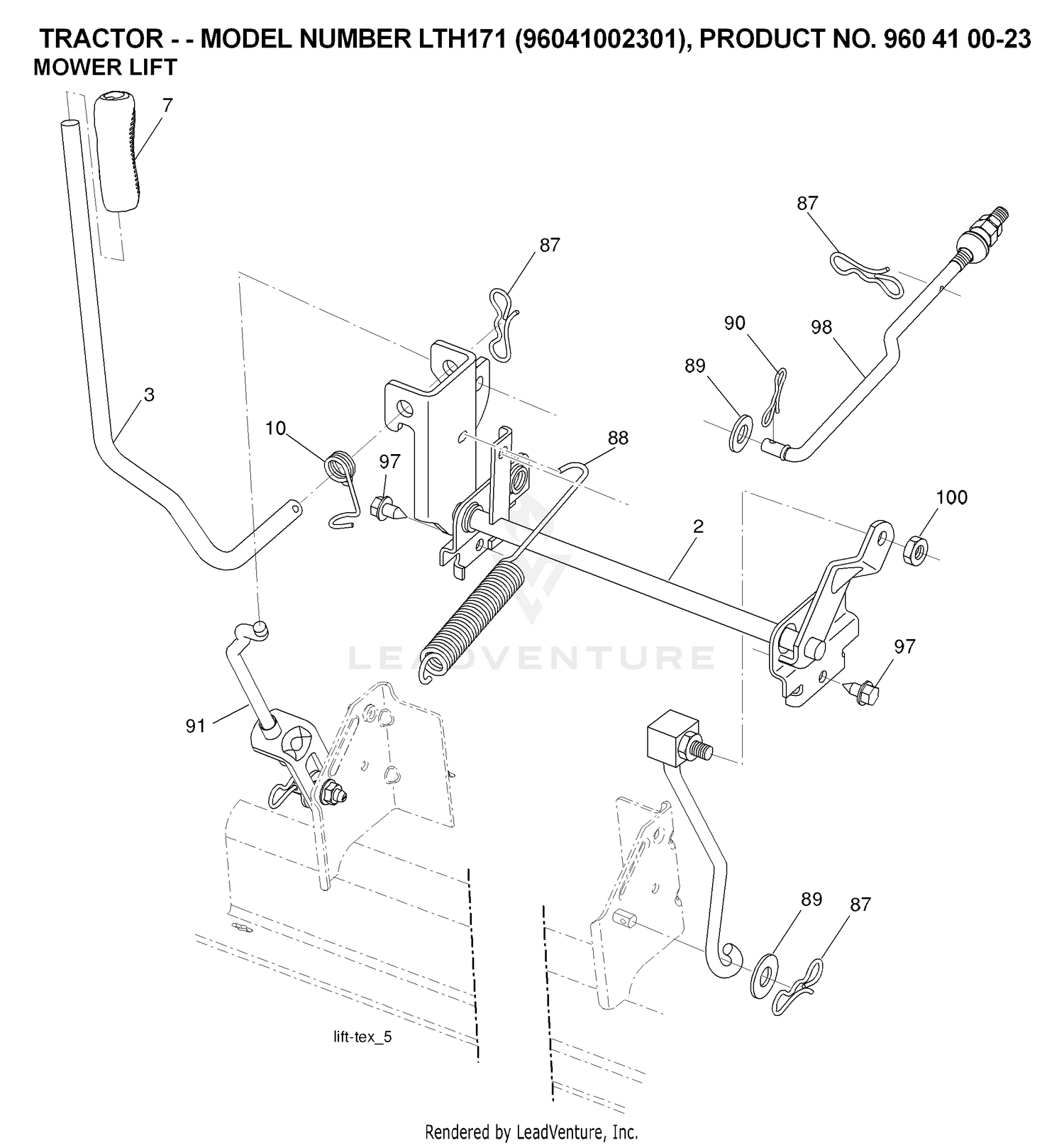

| Ref | Part Number | Description |
|---|
| 1 |
120-4155 |
PANEL ASM Price: $321.47 |
| 1 |
539111993 |
BAIL GROUND DRIVE Price: $54.99 |
| 2 |
108-7604 |
COVER-LH Price: $55.56 |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT This part replaces 532195223. Price: $69.99 |
| 2 |
539112276 |
HCS, M6-1.0 X 70, GR8.8 Price: $2.99 |
| 3 |
108-7605 |
COVER-RH Price: $55.56 |
| 3 |
539112277 |
HCS, M6-1.0 X 50, GR8.8 Price: $1.99 |
| 3 |
594018001 |
Levers This part replaces 532195231. Price: $17.99 |
| 4 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 4 |
539110488 |
WASHER, 5/16, WAVE Price: $2.99 |
| 5 |
3250-22 |
SCREW-PPH Price: $4.09 |
| 5 |
539130894 |
GRIP - DRIVE LEVER 12" This part replaces 539122635. Price: $6.99 |
| 6 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 6 |
539112907 |
BAIL Price: $11.99 |
| 7 |
115-8849-03 |
PLATE-COVER Price: $23.24 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK Price: $7.99 |
| 7 |
539112922 |
ROPE GUIDE Price: $4.99 |
| 8 |
3234-21 |
SCREW-HHF Price: $2.19 |
| 8 |
539113067 |
DECAL, STOP SIGN Price: $1.99 |
| 9 |
539113068 |
DECAL, PTO Price: $2.99 |
| 10 |
506109701 |
DRIVE CABLE GROUND This part replaces 539113110. Price: $49.99 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 10 |
94-2413 |
NUT-U Price: $1.79 |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 11 |
539113113 |
THROTTLE CABLE, BBC Price: $32.99 |
| 12 |
125-4646-03 |
PANEL-CONTROL Price: $92.78 |
| 12 |
539113114 |
BBC CONTROL Price: $64.99 |
| 13 |
539113117 |
HANDLE Price: $349.99 |
| 14 |
108-7602 |
REST-ARM Price: $158.43 |
| 14 |
539990134 |
SCREW 3/8C X 3/4 HEX CAP Price: $3.99 |
| 15 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 16 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
121-5159 |
IGNITION SWITCH ASM Price: $84.21 |
| 21 |
120-6310 |
LCD DISPLAY ASM Price: $584.72 |
| 27 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 28 |
114-3329 |
SWITCH-ROCKER Price: $206.34 |
| 29 |
95-8999 |
SWITCH Price: $42.14 |
| 30 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 31 |
161-8355 |
CUP HOLDER ASM This part replaces 117-2378. Price: $12.36 |
| 32 |
107069 |
CLIP Price: $1.79 |
| 33 |
99-7411 |
POINT-POWER Price: $30.69 |
| 34 |
99-7416 |
CAP Price: $6.64 |
| 35 |
93-9999 |
SWITCH-PTO Price: $42.99 |
| 36 |
110-0542 |
SPACER-FLANGE Price: $4.94 |
| 37 |
100-1535 |
SWITCH Price: $84.91 |
| 38 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $9.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 100 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
