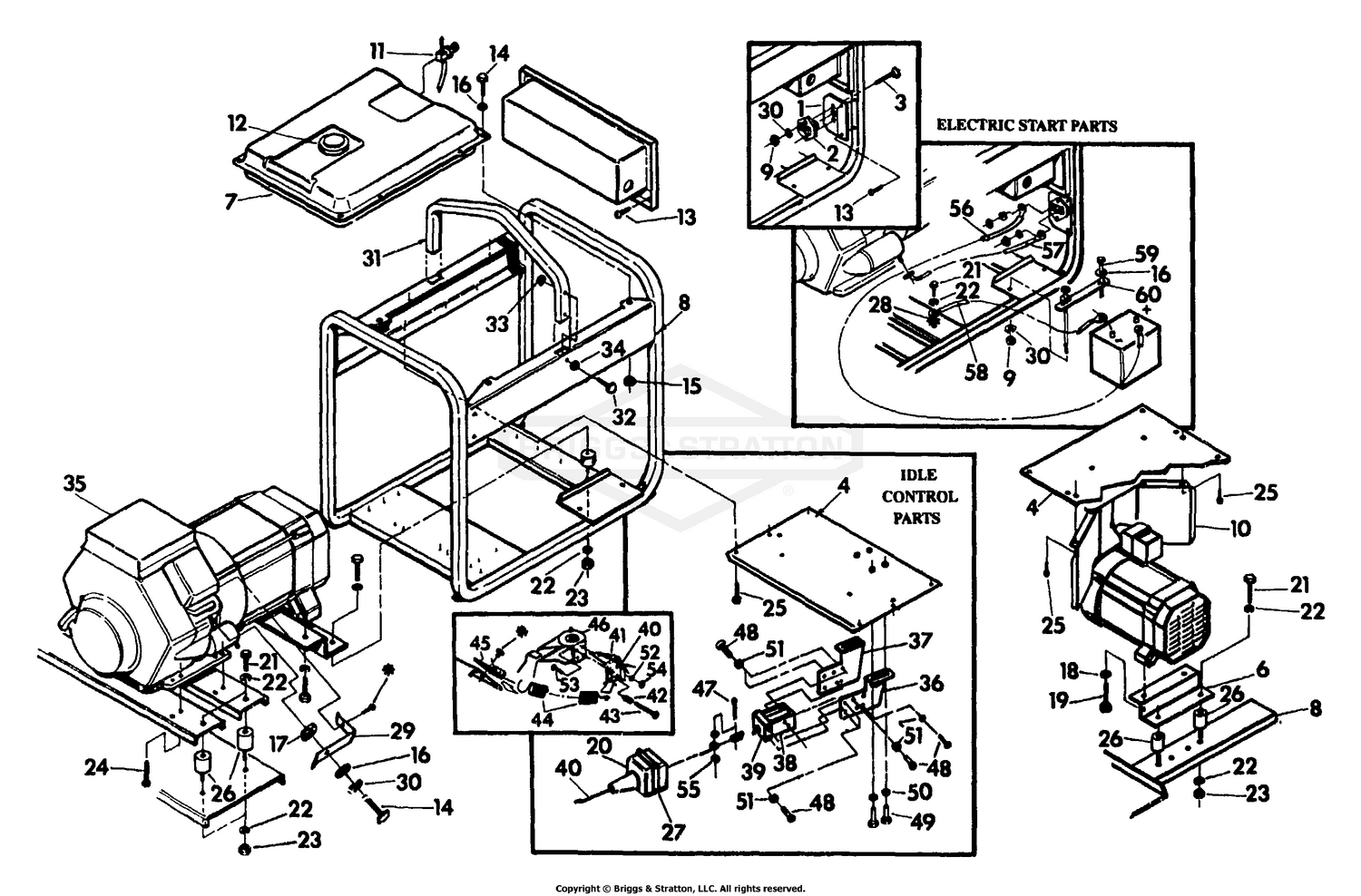

| Ref | Part Number | Description |
|---|
| 1 |
78289GS |
BRACKET, STARTER SWITCH This part replaces 78289. Price: Call Us |
| 2 |
77282 |
Starter Switch Price: Call Us |
| 3 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 22287. Price: $3.29 |
| 4 |
78518 |
Gas Tank Heat Shield Price: Call Us |
| 5 |
77304 |
Engine Support Price: Call Us |
| 6 |
78512GS |
SPPRT, ALT This part replaces 78512. Price: Call Us |
| 7 |
79568 |
Fuel Tank Price: Call Us |
| 8 |
78508 |
Manual Start Cradle Price: Call Us |
| 10 |
78513 |
Heat Delflecting Shield Price: Call Us |
| 11 |
75938 |
Fuel Shut-Off Valve Price: $12.67 |
| 12 |
76280GS |
CAP, TANK, FUEL, KELCH This part replaces 76280. Price: $12.85 |
| 13 |
75494 |
No. 10-24 x 5/8" Screw Price: $30.20 |
| 14 |
42568GS |
SCREW-M8 x 16 This part replaces 42568. Price: $3.06 |
| 15 |
52857GS |
NUT-M6 FLANGE This part replaces 52857. Price: $3.06 |
| 18 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 19 |
703988 |
CAPSCREW M8-1.25X16 This part replaces 39253. Price: $2.86 |
| 20 |
80898 |
Vinyl Boot Price: Call Us |
| 21 |
84010756 |
WHEEL ASSEMBLY This part replaces 23152. Price: $405.07 |
| 22 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 22237. Price: $2.95 |
| 23 |
5022241 |
DECAL, ProCut Z Text This part replaces 22241. Price: Call Us |
| 24 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 75246. Price: $4.26 |
| 25 |
63036GS |
CRIMPTITE, #8-18X1/4L This part replaces 63036. Price: $2.25 |
| 26 |
35097GS |
MNT, VBRTN, 30 DURO This part replaces 35097. Price: $15.30 |
| 28 |
22261GS |
WSHR, SHKPRF, INT 3/8 This part replaces 22261. Price: $2.49 |
| 29 |
78807 |
Wire Shield Price: Call Us |
| 30 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 31 |
80809 |
Lifting Bar Price: Call Us |
| 32 |
39287GS |
SCREW This part replaces 39287. Price: $3.20 |
| 33 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 35 |
78282 |
Manual Start 15 HP Engine Price: Call Us |
| 36 |
78504 |
Solenoid Mounting Bracket Price: Call Us |
| 37 |
78504A |
Solenoid Mounting Bracket Price: Call Us |
| 38 |
78520 |
D-4HD Solenoid Price: Call Us |
| 39 |
78524 |
Solenoid Cover Price: Call Us |
| 40 |
78507 |
Solenoid Linkage Price: Call Us |
| 41 |
78516 |
Linkage Mounting Bracket Price: Call Us |
| 42 |
78529 |
Linkage Mtg. Bracket Spring Price: Call Us |
| 43 |
78530GS |
HHCS, M4-0.7 X 50 This part replaces 78530. Price: $1.95 |
| 44 |
78519 |
Idle Control Spring Price: Call Us |
| 45 |
78505 |
Spring Mounting Bracket Price: Call Us |
| 46 |
78527 |
Governor Control Bracket Rework Price: Call Us |
| 47 |
22268GS |
PIN, COTTER, 3/32-1 This part replaces 22268. Price: $3.00 |
| 48 |
797483 |
SCREW This part replaces 36917. Price: $3.66 |
| 49 |
51718 |
M4-0.7 x 10mm Capscrew Price: Call Us |
| 50 |
38150GS |
WASHER This part replaces 38150. Price: $2.49 |
| 51 |
22264 |
No. 8 Lock Washer Price: $8.99 |
| 52 |
84008897 |
HANDLE ASSEMBLY This part replaces 43184. Price: $49.49 |
| 53 |
49819 |
M4-0.7 x 6mm Capscrew Price: Call Us |
| 54 |
51715GS |
NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30 |
| 55 |
25909GS |
WSHR, NYLON, .14 X .37 X .06 This part replaces 25909. Price: $2.00 |
| 56 |
11553621GS |
WIRE-A, 6AWG, RED, #13, 330MM This part replaces 11553621. Price: $20.60 |
| 57 |
11453621 |
Starter Cable to Sw. Assm. Price: Call Us |
| 58 |
11653621GS |
WIRE-A, 8AWG, BLK, #0, 279MM This part replaces 11653621. Price: $14.05 |
| 59 |
45000GS |
HHCS, 1/4-20 X 7 This part replaces 45000. Price: $8.15 |
| 78283 |
Electric |
Start 15 HP Engine Price: Call Us 78283 |
| 78508A |
Electric |
Start Cradle Price: Call Us 78508A |
| 5022097SM |
CAP |
This part replaces 22097. Price: $2.75 5022097SM |
