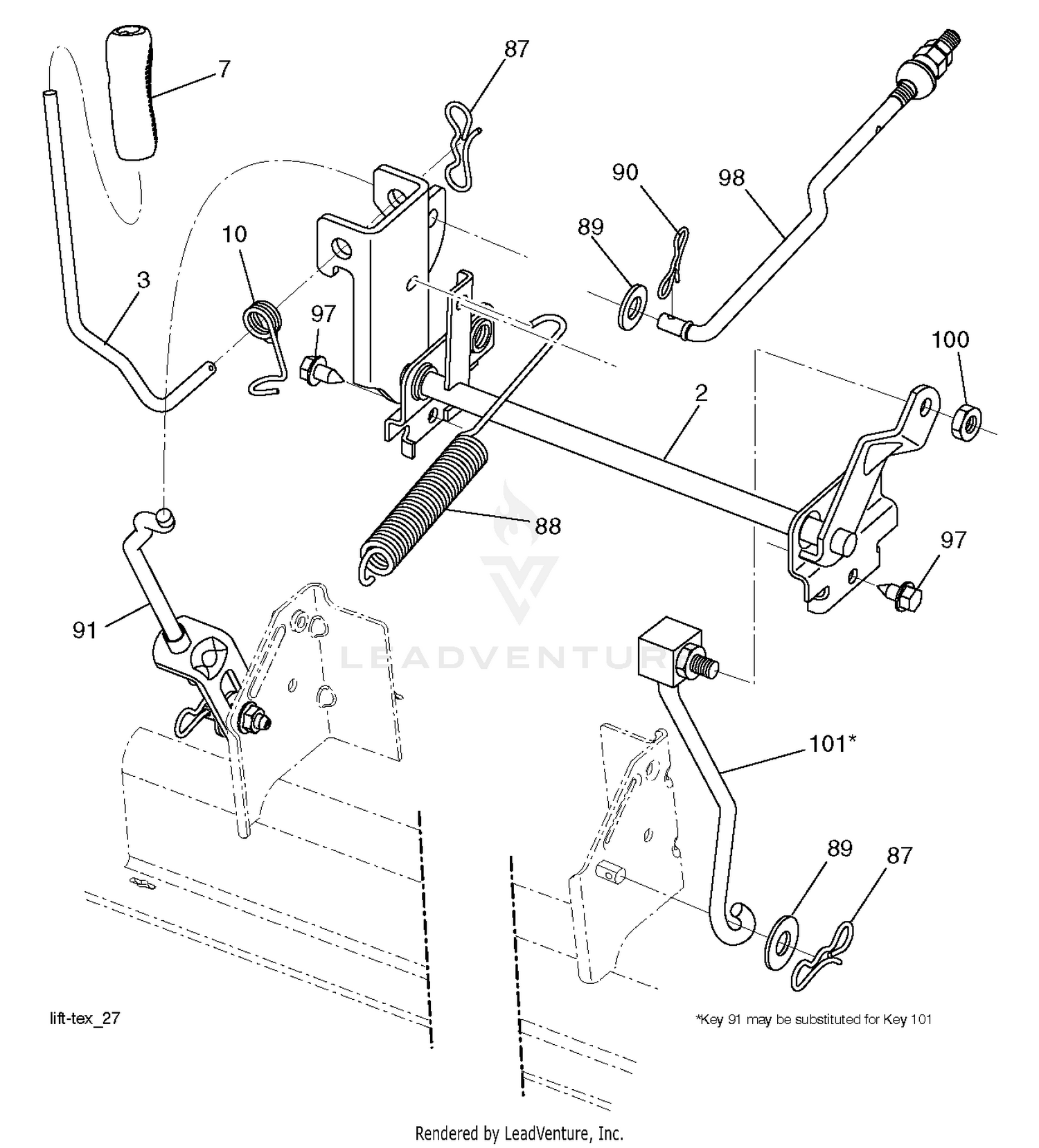

| Ref | Part Number | Description |
|---|
| 1 |
100-5797-03 |
BRACKET-HOC, RH Price: $30.11 |
| 2 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
583515001 |
DECK.LIFT.WELDMENT This part replaces 532436996. Price: $49.99 |
| 3 |
594018001 |
Levers This part replaces 532195231. Price: $17.99 |
| 3 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 4 |
104-1052-03 |
BRACKET-HOC, FRONT Price: $29.29 |
| 5 |
100-5799 |
SHIM-HOC, .060 INCH Price: $5.86 |
| 6 |
3231-9 |
SCREW-CARR Price: $1.18 |
| 7 |
104-4641 |
SHIM-HOC, .030 INCH Price: $2.34 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK Price: $7.99 |
| 8 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 9 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 10 |
121-3575 |
SPACER-HOC Price: $4.10 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 11 |
104-4624-03 |
BRACKET-HOC, LH Price: $30.11 |
| 12 |
136-2921 |
HOC PLATE ASM Price: $6.80 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
583514901 |
SPRING.LIFT.ASSIST.97.CRD This part replaces 532436995. Price: $9.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 100 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 101 |
532407003 |
LINK.ASM.LIFT.FIXE.38/42/46" Price: $11.99 |
