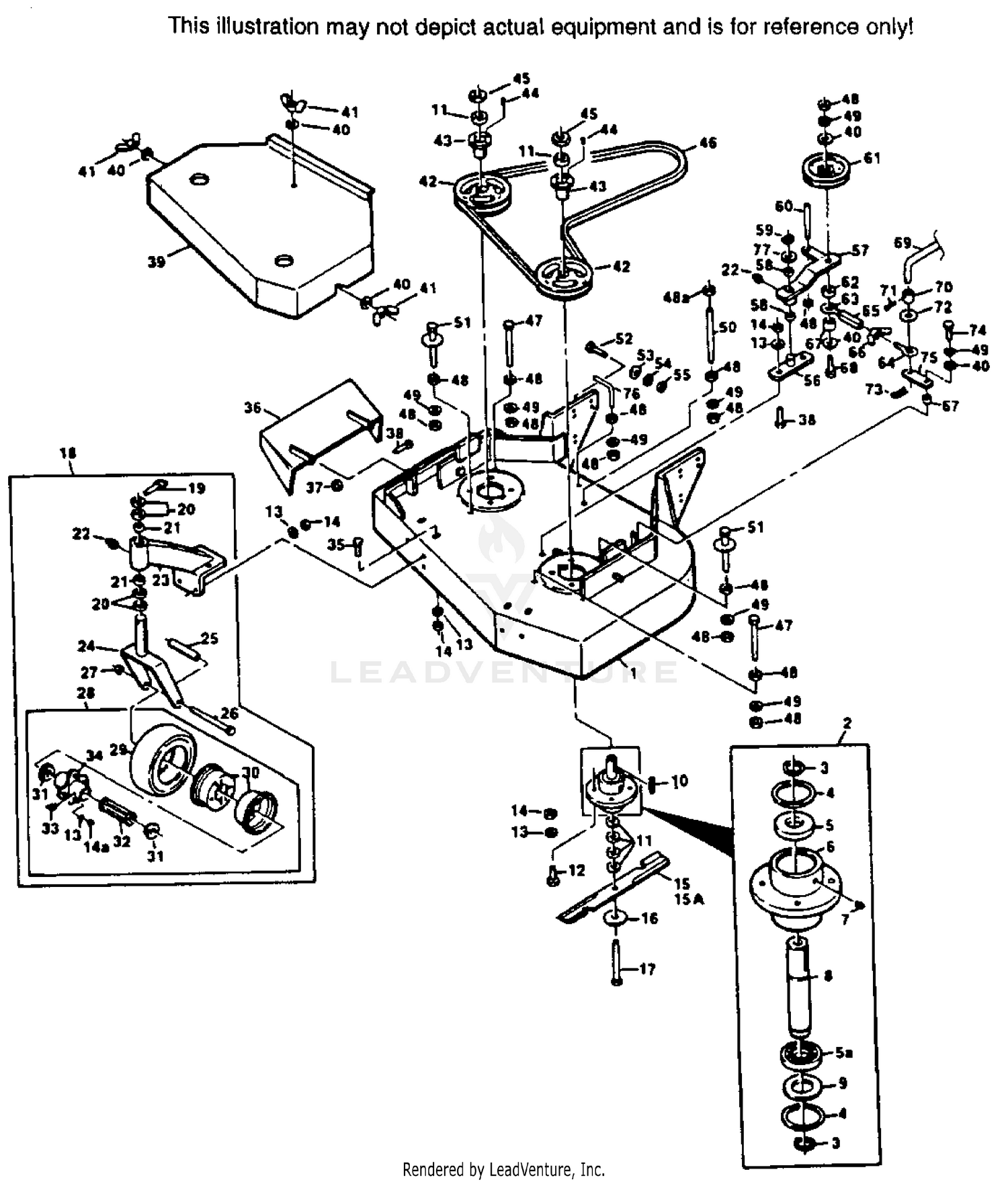

| Ref | Part Number | Description |
|---|
| 1 |
461552 |
Cutter Deck This part replaces 46087. Price: Call Us |
| 2 |
48926 |
Hub, Tapered 1.125" bore This part replaces 46020. Price: Call Us |
| 3 |
04050-04 |
RETAINING RING, 1" EXT.-INVERTED Price: Call Us |
| 4 |
04050-07 |
RETAINING RING, 2-7/16 INT.BSC Price: Call Us |
| 5 |
48101-02 |
BEARING, SPINDLE Price: Call Us |
| 6 |
48926 |
Hub, Tapered 1.125" bore This part replaces 41001. Price: Call Us |
| 7 |
48114-02 |
GREASE FITTING, STR., 5/16 SERR Price: Call Us |
| 8 |
43001-02 |
SPINDLE, CUTTER BLADE Price: Call Us |
| 9 |
04041-02 |
WASHER, 1-5/16 X 2-7/16 X 16 GA. Price: Call Us |
| 10 |
04063-08 |
KEY, 1/4 X 1/4 X 2 Price: Call Us |
| 11 |
43592 |
Spacer, Cutter Blade This part replaces 43038. Price: Call Us |
| 15 |
481707 |
Cutter Blade, 18" This part replaces 48108. Price: Call Us |
| 15A |
481711 |
Cutter Blade, 18 Hi-Lift This part replaces 48185. Price: Call Us |
| 16 |
04040-10 |
FLAT WASHER, 5/8 W Price: Call Us |
| 17 |
04001-41 |
HEX HD. BOLT, 5/8-11 X 9-1/2 Price: Call Us |
| 18 |
46079 |
CASTER ASSEMBLY(INCLUDES ITEMS 19-28) Price: Call Us |
| 19 |
04066-01 |
QUICK PIN Price: Call Us |
| 20 |
43037-01 |
SPACER, CASTER YOKE, 1/2" LONG Price: Call Us |
| 21 |
48100-01 |
BRONZE BEARING Price: Call Us |
| 22 |
48114-04 |
Fitting, Grease This part replaces 48114-01. Price: Call Us |
| 23 |
46082 |
SUPPORT ASSEMBLY Price: Call Us |
| 24 |
45006 |
CASTER YOKE Price: Call Us |
| 25 |
43022 |
SLEEVE, CASTER WHEEL BRG. Price: Call Us |
| 26 |
04001-37 |
HEX HD. BOLT, 1/2-13 X 5-1/2 Price: Call Us |
| 28 |
48307 |
Wheel Assy., Caster This part replaces 48307-01. Price: Call Us |
| 29 |
481773 |
Inner Tube Only, Caster Wheel This part replaces 48006-03. Price: Call Us |
| 29 |
481774 |
Tire Only, Caster Wheel This part replaces 48307-02. Price: Call Us |
| 30 |
481772 |
Rim Pair, Caster Wheel This part replaces 48307-04. Price: Call Us |
| 31 |
481770 |
Retainer This part replaces 48006-07. Price: Call Us |
| 32 |
481769 |
Roller Bearing .625 x 3.25" This part replaces 48006-06. Price: Call Us |
| 33 |
48114-03 |
GREASE FITTING, 45" 1/4-28 Price: Call Us |
| 34 |
481768 |
Hub Assy. W/Bolts, Caster Wheel This part replaces 48006-05. Price: Call Us |
| 36 |
461291 |
Discharge Chute This part replaces 45100. Price: Call Us |
| 39 |
46797 |
Belt Cover Assy This part replaces 46085. Price: Call Us |
| 41 |
04029-03 |
Knob This part replaces 04022-04. Price: Call Us |
| 42 |
48141 |
Hub, Tapered 1.00" bore This part replaces 48127. Price: Call Us |
| 43 |
48141 |
TAPERED HUB Price: Call Us |
| 46 |
48204 |
BELT, BLADE DRIVE Price: Call Us |
| 50 |
04004-02 |
SUPPORT, BELT COVER Price: Call Us |
| 51 |
45098 |
BELT GUIDE Price: Call Us |
| 56 |
45037 |
IDLER PIVOT Price: Call Us |
| 57 |
46145 |
IDLER ARM ASSY.(INCLUDES ITEMS 22 & 58) Price: Call Us |
| 58 |
48100-05 |
BRONZE BEARING Price: Call Us |
| 59 |
04050-02 |
RETAINING RING, 3/4 EXT,-"E" Price: Call Us |
| 60 |
04004-04 |
STUD Price: Call Us |
| 61 |
483215 |
Pulley, 5" Dia. Idler This part replaces 48269. Price: Call Us |
| 62 |
43063 |
SPACER, IDLER Price: Call Us |
| 63 |
04070-02 |
EYEBOLT, LH Price: Call Us |
| 64 |
04070-01 |
EYEBOLT, RH Price: Call Us |
| 65 |
43025 |
TURNBUCKLE Price: Call Us |
| 66 |
04022-02 |
WING NUT, 5/16-18 Price: Call Us |
| 67 |
43042 |
SLEEVE, CLUTCH ROD Price: Call Us |
| 69 |
44064 |
BLADE CLUTCH ROD, LOWER Price: Call Us |
| 70 |
43043 |
SLEEVE, CLUTCH ROD Price: Call Us |
| 73 |
04062-01 |
HAIR PIN, LARGE Price: Call Us |
| 75 |
42057 |
CAM LINK Price: Call Us |
| 76 |
44009 |
BELT GUIDE Price: Call Us |
