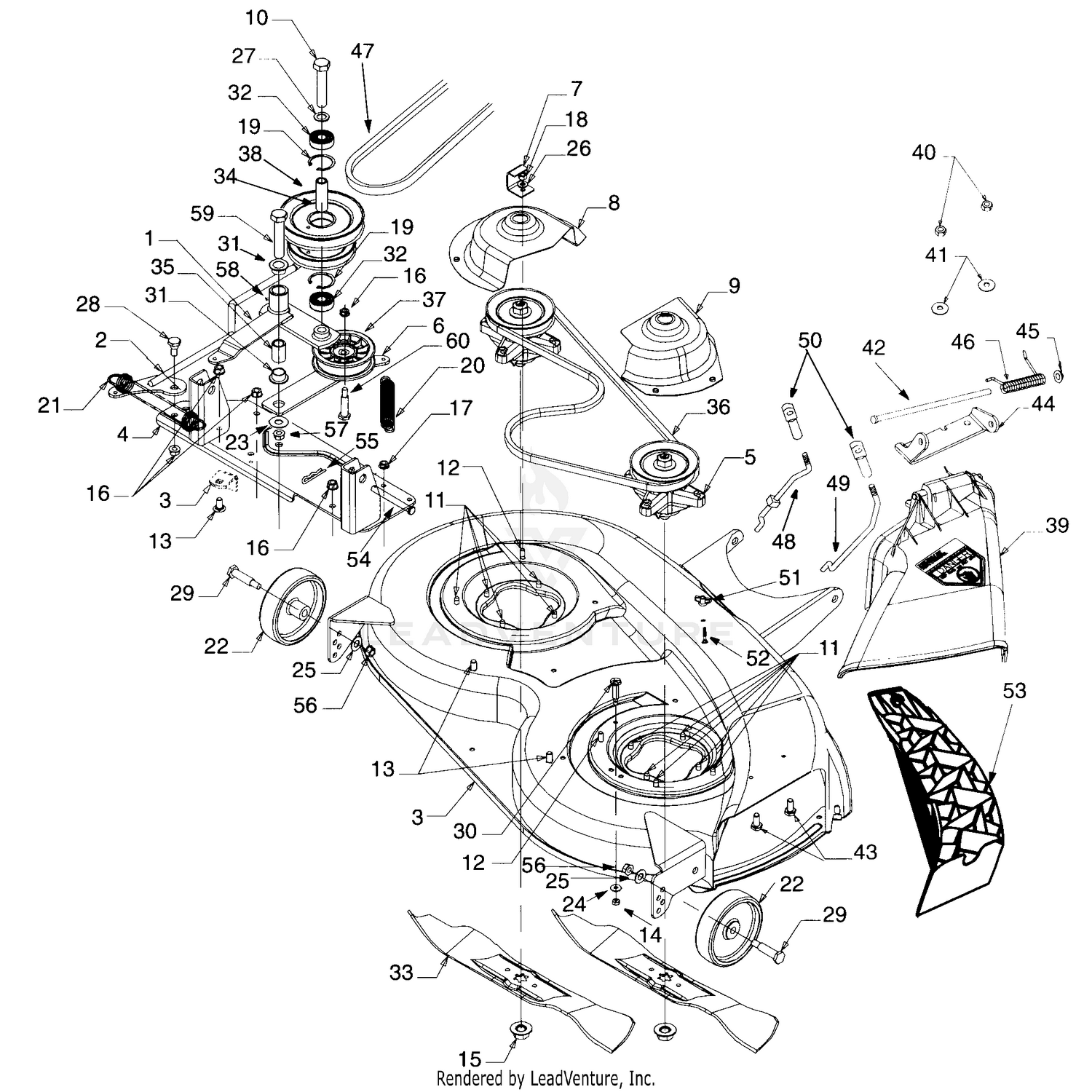

| Ref | Part Number | Description |
|---|
| 1 |
903-0857 |
IDLER ARM ASSEMBLY This part replaces 6030172. Price: $122.26 |
| 2 |
6030199 |
ASSEMBLY-HANDLE Not Available Price: |
| 4 |
603-0636 |
Assm-rear Not Available Price: |
| 5 |
918-3167 |
BLADE SPINDLE ASSEMBLY Not Available This part replaces 6183167. Price: |
| 6 |
703-2463-0637 |
Arm, Idler This part replaces 7032463. Price: $36.81 |
| 7 |
703-2559 |
STOP BRACKET Not Available Price: |
| 8 |
703-2945 |
SHIELD-PUL Not Available Price: |
| 9 |
703-3237 |
Pulley Shield, Right Side Not Available Price: |
| 10 |
710-0923 |
SCREW 5/8-18X3.0 GR5 Price: $8.58 |
| 11 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 7101260. Price: $3.34 |
| 12 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 13 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 14 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 15 |
712-0417A |
HEX NUT Price: $6.50 |
| 16 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 17 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 18 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 19 |
916-3020 |
Ring, Ret, Int This part replaces 7163020. Price: $4.42 |
| 20 |
932-0262 |
IDLER SPRING Not Available This part replaces 7320262. Price: |
| 21 |
732-3115 |
SPRING Not Available Price: |
| 22 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 23 |
736-0100 |
FLAT WASHER .531 ID x 1.25 OD x .036 Price: $5.99 |
| 24 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 25 |
736-0105 |
Bell Washer .041 x .87 x .063 Price: $3.96 |
| 26 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 27 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 28 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 29 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 30 |
738-0572 |
SHOULDER SCREW This part replaces 7380572. Price: $7.03 |
| 31 |
741-0338 |
FLANGE BEARING Price: $8.37 |
| 32 |
941-0524A |
Bearing, Ball, .625 x 40 x 12 This part replaces 7410524. Price: $20.36 |
| 34 |
750-0656 |
IDLER BRACKET SPACER .50X.75X2.25 LG Not Available Price: |
| 35 |
950-3132 |
Spacer, .88 x .635 x 1.25 This part replaces 7503132. Price: $8.46 |
| 36 |
954-3096 |
V-BELT A SECT x 59 This part replaces 754-3096. Price: $41.23 |
| 37 |
756-0627D |
Idler Pulley 3.50 dia. This part replaces 7560627. Price: $28.58 |
| 38 |
756-3113 |
Pulley, Double This part replaces 7563070. Price: $131.61 |
| 40 |
712-3006 |
HEX NUT Price: $4.05 |
| 41 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 42 |
911-0792 |
Hinge Pin This part replaces 7110792. Price: $4.05 |
| 43 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 44 |
703-1693A |
Mounting Bracket This part replaces 7031693. Price: $20.29 |
| 45 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 46 |
732-0602A |
Torsion Spring Not Available This part replaces 7320602. Price: |
| 47 |
954-3095 |
V-BELT B SECT x 64.30 This part replaces 754-3095. Price: $62.34 |
| 48 |
1766052 |
ROD (LH) FRO Not Available Price: |
| 49 |
1766051 |
FRONT LIFT ROD (RH) Not Available Price: |
| 50 |
1752554 |
FRONT LIFT ROD END Not Available Price: |
| 51 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 52 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 53 |
OEM-190-116 |
Mulch Kit This part replaces 7311643A. Price: $89.03 |
| 54 |
1719367 |
CLEVIS PIN Not Available Price: |
| 55 |
1723478 |
HITCH PIN Not Available Price: |
| 56 |
712-0181 |
Jam Nut 3/8-16 Price: $3.90 |
| 57 |
712-0239 |
Nut 1/2-20 Price: $5.01 |
| 58 |
937-3000 |
GREASE FITTING This part replaces 7373000. Price: $4.04 |
| 59 |
710-1010 |
SCREW 1/2-20 x 3.00 GR8 Not Available Price: |
