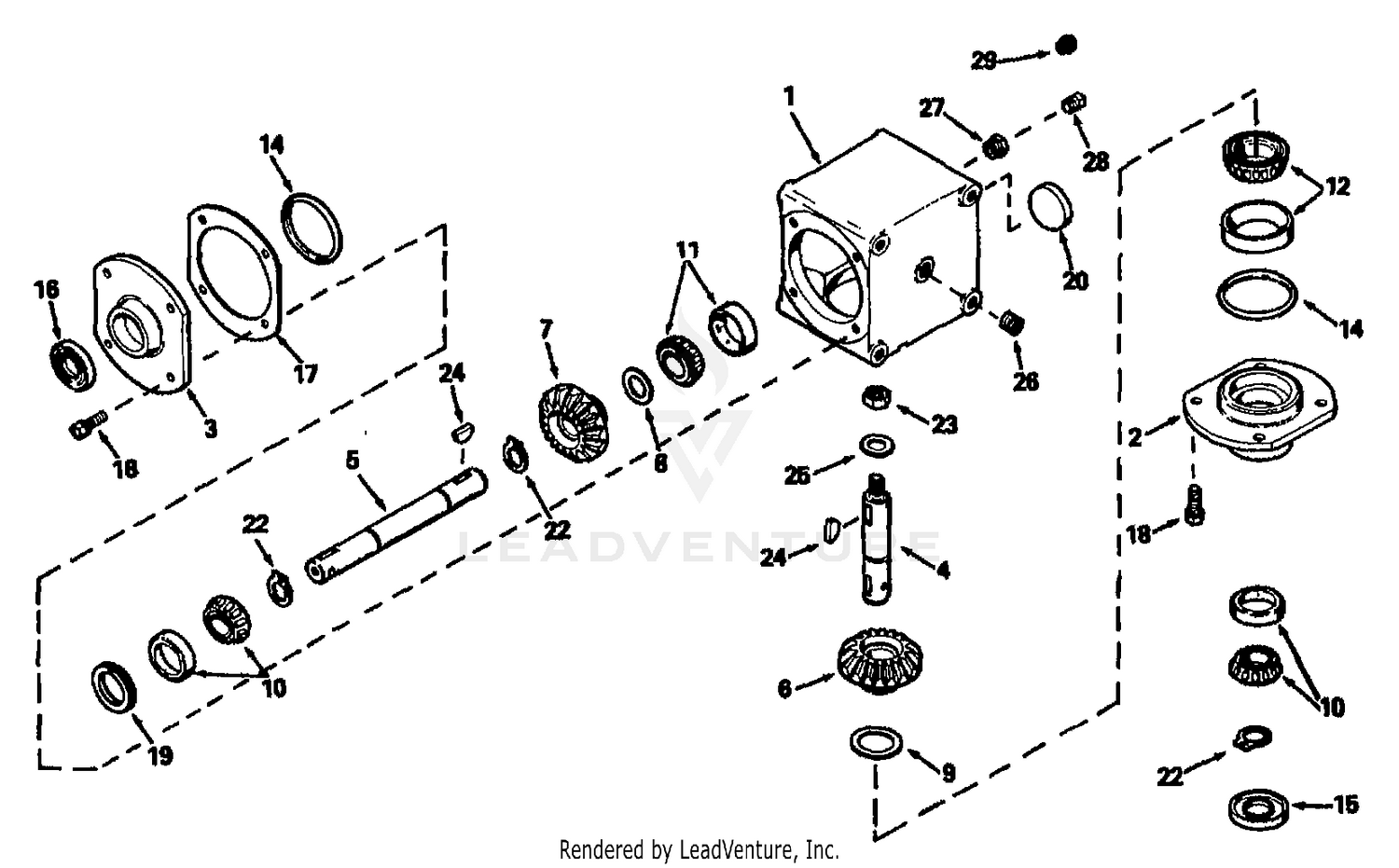

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Right Angle Drive Housing |
| 2 |
N/A |
Retainer Cap |
| 3 |
N/A |
Retainer Cap |
| 4 |
N/A |
Output Shaft |
| 5 |
N/A |
Input Shaft |
| 6 |
N/A |
Bevel Gear (20 teeth) |
| 7 |
N/A |
Bevel Gear (27 teeth) |
| 8 |
N/A |
Shim, 1-1/2" O.D. x 1-1/64 I.D. x .002 thick |
| 9 |
N/A |
Shim, 2.000" O.D. x 1.531 I.D. x .002 thick |
| 15 |
N/A |
Oil Seal |
| 16 |
N/A |
Oil Seal |
| 17 |
N/A |
Cap Retainer Shim |
| 18 |
N/A |
Hex Hd. Sems Screw, 5/16-18 x 1 |
| 19 |
N/A |
Load Ring |
| 20 |
N/A |
Plug |
| 22 |
N/A |
Retaining Ring |
| 23 |
N/A |
Jam Nut, 3/4-16 |
| 24 |
N/A |
Woodruff Key |
| 25 |
N/A |
Flat Washer |
| 26 |
N/A |
Pipe Plug, 1/4-18 |
| 27 |
N/A |
Reducer Pipe, 1/4-18 to 1/8-27 |
| 28 |
N/A |
Pipe Plug |
| 29 |
N/A |
Relief Valve |
