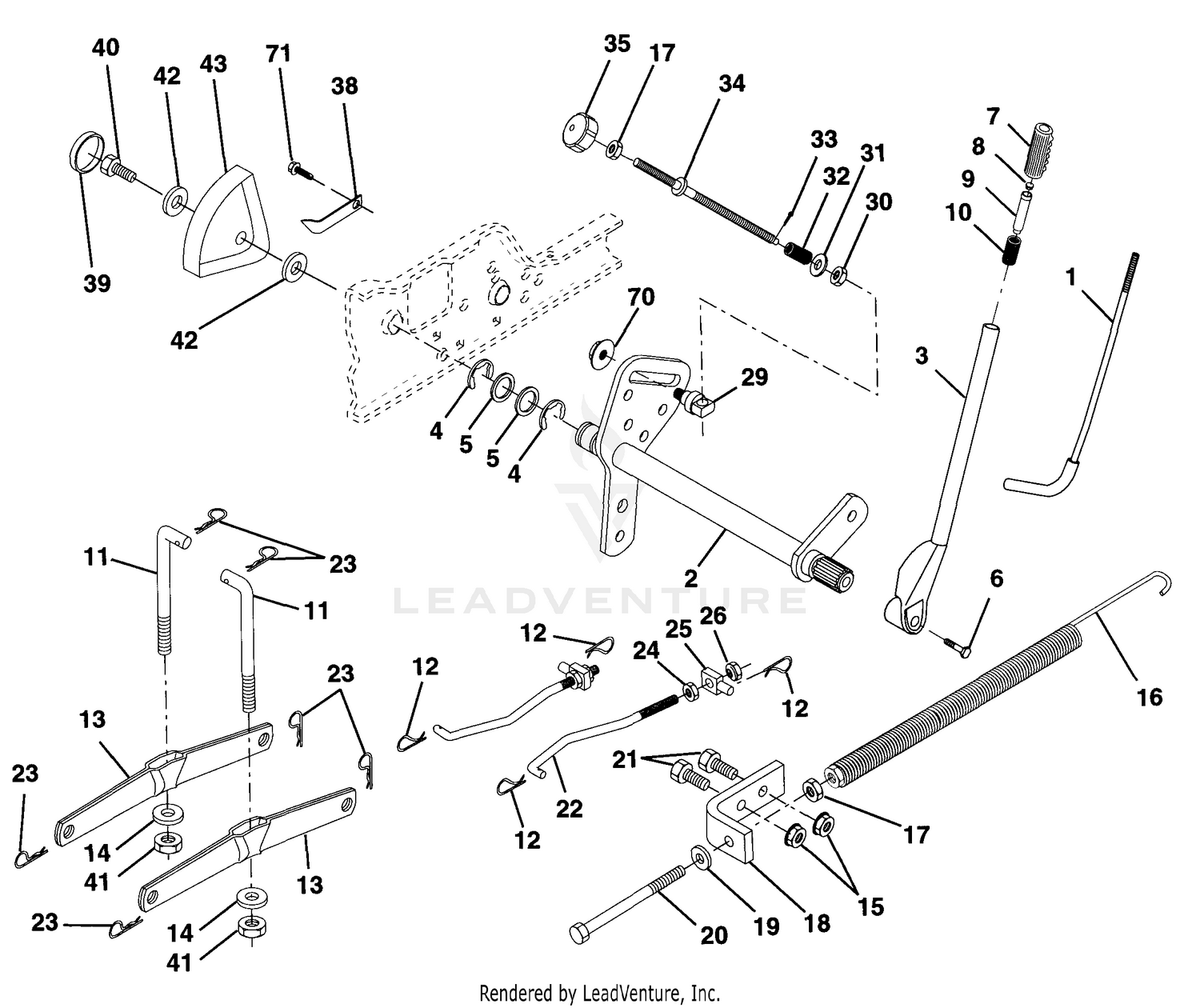

| Ref | Part Number | Description |
|---|
| 1 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 2 |
282-4 |
SHACKLE Price: $32.98 |
| 2 |
532154389 |
SHAFT ASM., LIFT VGT Price: $43.99 |
| 3 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 3 |
532123096 |
LIFT LEVER This part replaces 532121002. Price: $71.83 |
| 4 |
812000022 |
E-RING Price: $3.99 |
| 4 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 5 |
32151-48 |
E-RING Price: $1.41 |
| 5 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Ga. Price: $6.99 |
| 6 |
75-4690-03 |
R/H RR SPRING BRKT ASM This part replaces 75-4690. Price: $66.55 |
| 6 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 10 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 11 |
532145543 |
LINK ASSY This part replaces 532146704. Price: $17.99 |
| 11 |
75-3810-01 |
BRACKET-ROLLER ASM This part replaces 75-3810. Price: $64.51 |
| 12 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 13 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 13 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 14 |
532169865 |
BEARING.PIVOT.LIFT This part replaces 532140302. Price: $5.99 |
| 14 |
75-5390 |
ROLLER Price: $56.69 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 15 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 16 |
532123994 |
SPRING This part replaces 532124687. Price: $57.46 |
| 16 |
75-6180 |
HOSE Price: $72.14 |
| 17 |
237-78 |
O-RING Price: $3.85 |
| 17 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 18 |
237-21 |
O-RING Price: $0.70 |
| 18 |
532143363 |
BRACKET Price: $3.99 |
| 19 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 19 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 20 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 20 |
532005328 |
BOLT Price: $2.99 |
| 21 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 21 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 22 |
532127218 |
FRONT LINK Price: $14.99 |
| 22 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 23 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 23 |
75-5440 |
ARM WA - LIFT, RH REAR Price: $725.89 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 24 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 25 |
532175689 |
TRUNNION This part replaces 532130171. Price: $3.99 |
| 25 |
67-1750 |
BUSHING Price: $0.92 |
| 26 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 26 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 27 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 28 |
75-4590-03 |
ROD-PIVOT ASM This part replaces 75-4590. Price: $64.42 |
| 29 |
532150233 |
TRUNNION Price: $9.99 |
| 29 |
75-4520 |
SPRING-TORSION, RH Price: $25.31 |
| 30 |
256-287 |
BUSHING Price: $1.76 |
| 30 |
532110807 |
NUT T Price: $3.99 |
| 31 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010. Price: $199.32 |
| 31 |
819131016 |
WASHER Price: $2.99 |
| 32 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 32 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 33 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 33 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 34 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 35 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 35 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 36 |
325-4 |
SCREW-HH Price: $0.95 |
| 36 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 37 |
532120529 |
WASHER T Price: $2.99 |
| 37 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 38 |
532123933 |
HEIGHT INDICATOR PNTR This part replaces 532138346. Price: $3.99 |
| 38 |
75-3750 |
PIN WA - REAR *B Price: $165.55 |
| 39 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 39 |
75-5360 |
PIN-CYLINDER Price: $72.33 |
| 40 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 75-0780. Price: $582.35 |
| 40 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 41 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 41 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 42 |
75-5330 |
CLAMP- HOSE Price: $31.69 |
| 42 |
819112410 |
WASHER Price: $3.99 |
| 43 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 43 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 44 |
3253-7 |
WASHER-LOCK Price: $0.27 |
