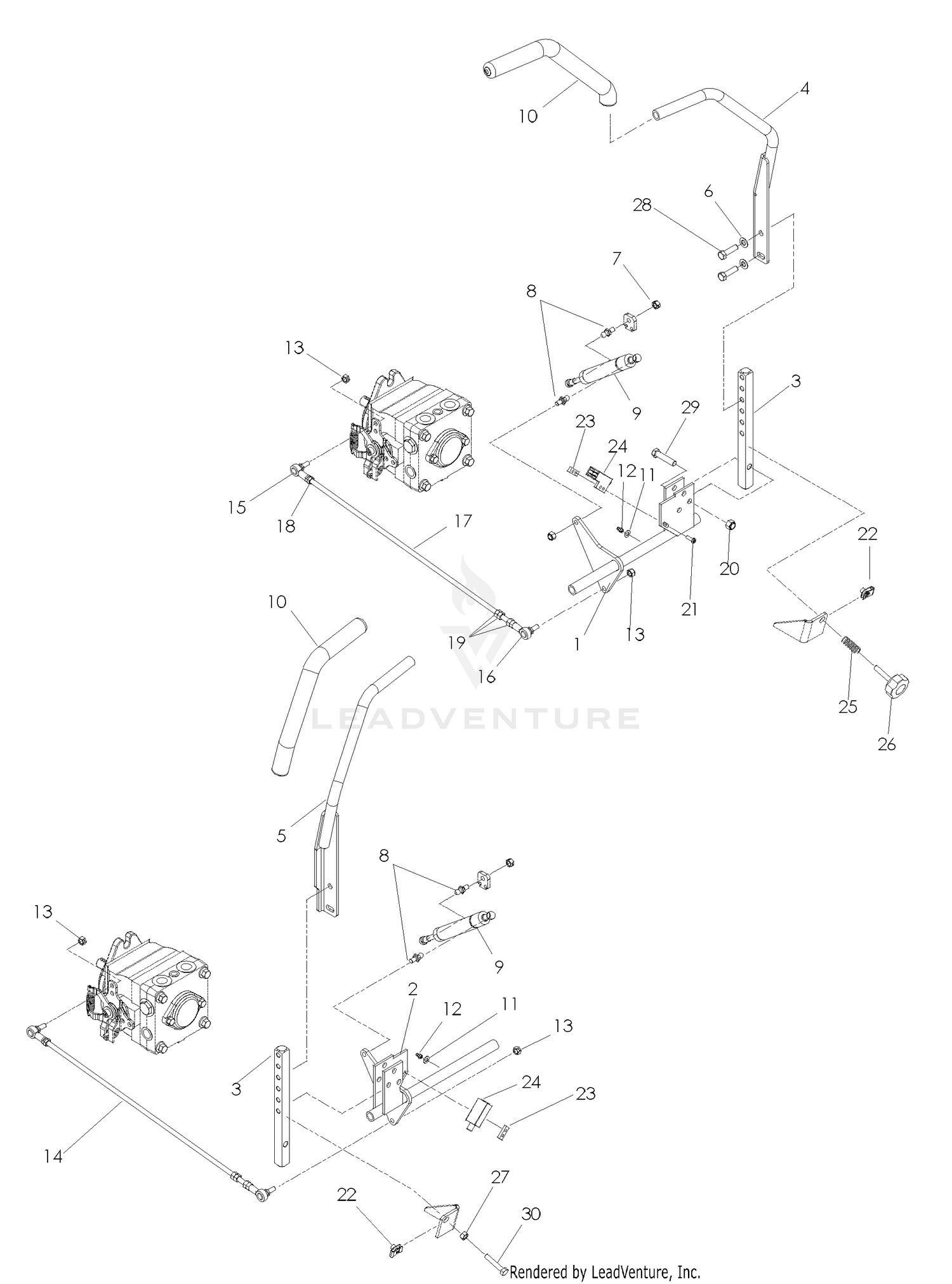

Steering

Steering

Parts (29)

RefPart NumberDescription
1 539110897 CONTROL WLDMT, LT Price: $38.99
2 539110898 CONTROL WLDMT, RT Price: $38.99
3 539110638 CONTROL ARM Price: $29.99
4 539110827 LT DRIVE LEVER WLDMT Price: $49.99
5 539110826 RT DRIVE LEVER WLDMT Price: $49.99
6 539102593 WASHER, 3/8 DISC SPRING SPEC Price: $2.99
7 596580701 Nuts This part replaces 539990184. Price: $2.99
8 594056301 Studs This part replaces 539110607. Price: $2.99
9 539131932 DAMPENER W/EXT SEAL Price: $74.99
10 539102592 GRIP Price: $7.99
11 539103547 WASHER Price: $0.99
12 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
13 539110943 NUT 5/16F NYLOC Price: $2.99
14 539110939 LINK ASM Price: $36.13
15 539110604 SPHERICAL ROD END, LH Price: $17.99
16 539110603 SPHERICAL ROD END, RH Price: $27.99
17 539110896 LINK Price: $97.99
18 596584101 Nuts This part replaces 539991073. Price: $2.99
19 596040901 Hardware This part replaces 539990223. Price: $2.99
20 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
21 596039001 Screws This part replaces 539976952. Price: $2.99
22 539104763 U-CLIP 5/16-18 NUT RETAINER Price: $4.99
23 539102678 TAPPED PLATE Price: $12.99
24 539106269 SWITCH Price: $14.99
25 539111039 COMPRESSION SPRING Price: $9.99
26 539103003 ADJUSTMENT KNOB Price: $4.99
27 596582601 Nuts This part replaces 539990196. Price: $2.99
28 596564401 Bolts This part replaces 539990563. Price: $3.99
29 596583901 Bolts This part replaces 539990730. Price: $2.99
