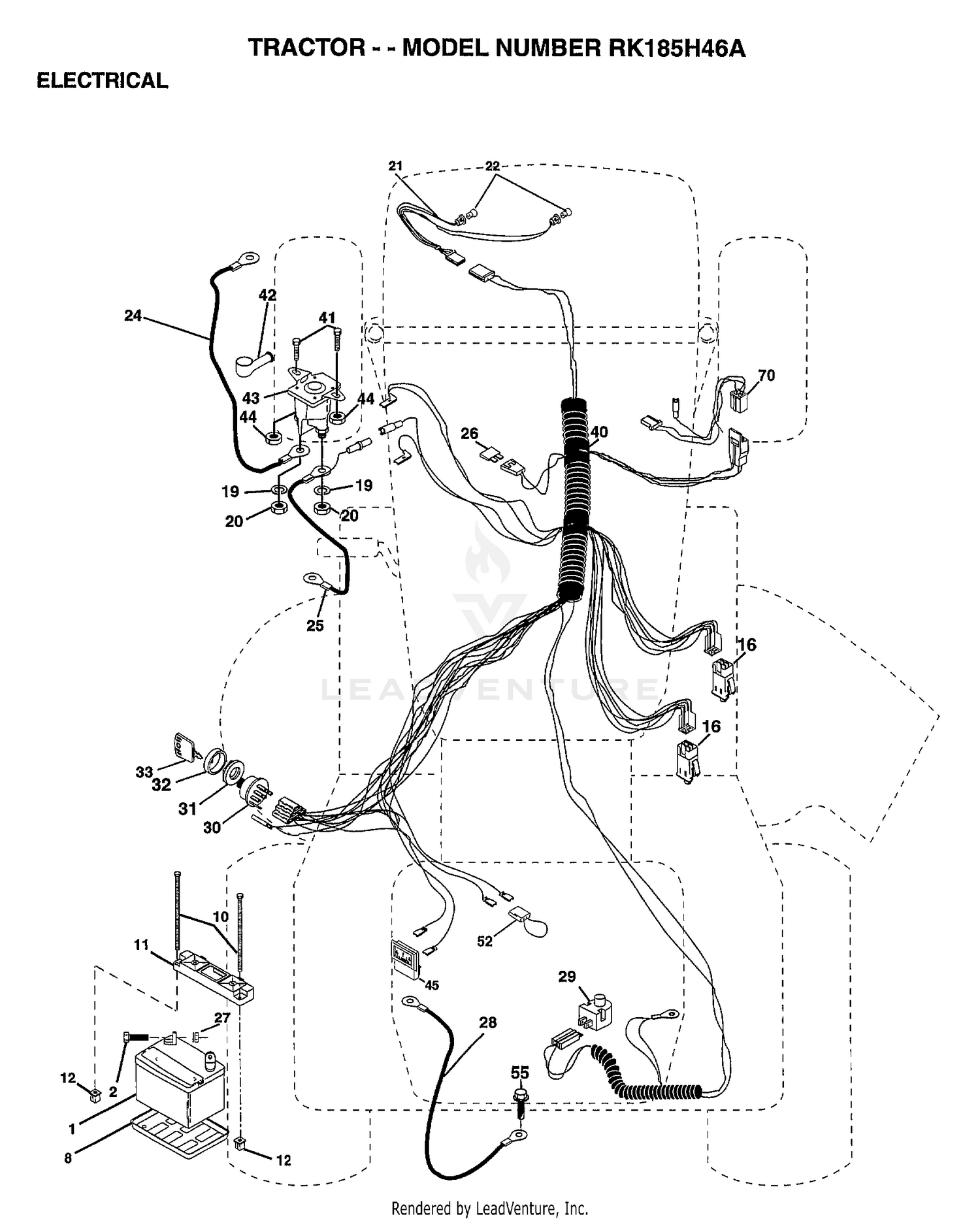

| Ref | Part Number | Description |
|---|
| REFER |
REFER |
TO IMAGE Price: Call Us |
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 1 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 2 |
98-1459 |
DECAL Price: $3.93 |
| 3 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 4 |
21-9260 |
COVER-DUST Price: $8.19 |
| 5 |
233-17 |
KNOB Price: $10.58 |
| 6 |
87-6620 |
SCREW Price: $1.29 |
| 7 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 8 |
93-7998-03 |
PLATE-INSTRUMENT Price: $40.21 |
| 9 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 10 |
145211 |
SUB= 150177 Price: Call Us |
| 10 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 11 |
150109 |
HOLDDOWN BATTERY Price: Call Us |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
145769 |
SUB= 150177 Price: Call Us |
| 12 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 13 |
104-1492 |
ROD ASM Price: $65.49 |
| 14 |
98-3912 |
TUBE ASM Price: $113.52 |
| 15 |
98-3910 |
TUBE ASM Price: $115.74 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 17 |
63-7900-03 |
RACK Price: $144.55 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 20 |
73350400 |
NUT Price: Call Us |
| 20 |
98-3908 |
TUBE ASM Price: $92.85 |
| 21 |
166181 |
HARNESS.ASM.LIGHT W/4152J Price: Call Us |
| 21 |
94-9951 |
COLUMN-STEERING Price: $366.29 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
98-3909 |
TUBE ASM Price: $85.32 |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 25 |
146148 |
CABLE.6GA.22W/16W Price: Call Us |
| 25 |
33103-020 |
SCREW-HHF Price: $2.16 |
| 26 |
130-7945 |
VALVE-STEERING CONTROL This part replaces 99-8959. Price: $1,130.87 |
| 26 |
166180 |
FUSE.15 AMP Price: Call Us |
| 27 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 27 |
73510400 |
NUT Price: Call Us |
| 28 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 28 |
145491 |
CABLE.GRND.6GA.21 Price: Call Us |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 29 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 30 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 32 |
93-1263 |
DECAL-TOWER Price: $46.56 |
| 33 |
104-9324 |
SPEEDOMETER Price: $312.55 |
| 33 |
122147X |
KEY Price: Call Us |
| 34 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 35 |
107-2562 |
NUT-HEX This part replaces 94-9952. Price: $19.95 |
| 36 |
98-3911 |
TUBE ASM Price: $108.87 |
| 37 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 38 |
322-7 |
SCREW-HH Price: $0.89 |
| 39 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 40 |
166145 |
HARNESS.IGNITION Price: Call Us |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 41 |
69-8970 |
SPACER Price: $9.57 |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 42 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 43 |
340-70 |
NUT-LOCK Price: $2.10 |
| 44 |
69-8940 |
WASHER Price: $1.76 |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 45 |
121433X |
SUB= 122822X Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 55 |
17490508 |
SCREW LT Price: Call Us |
