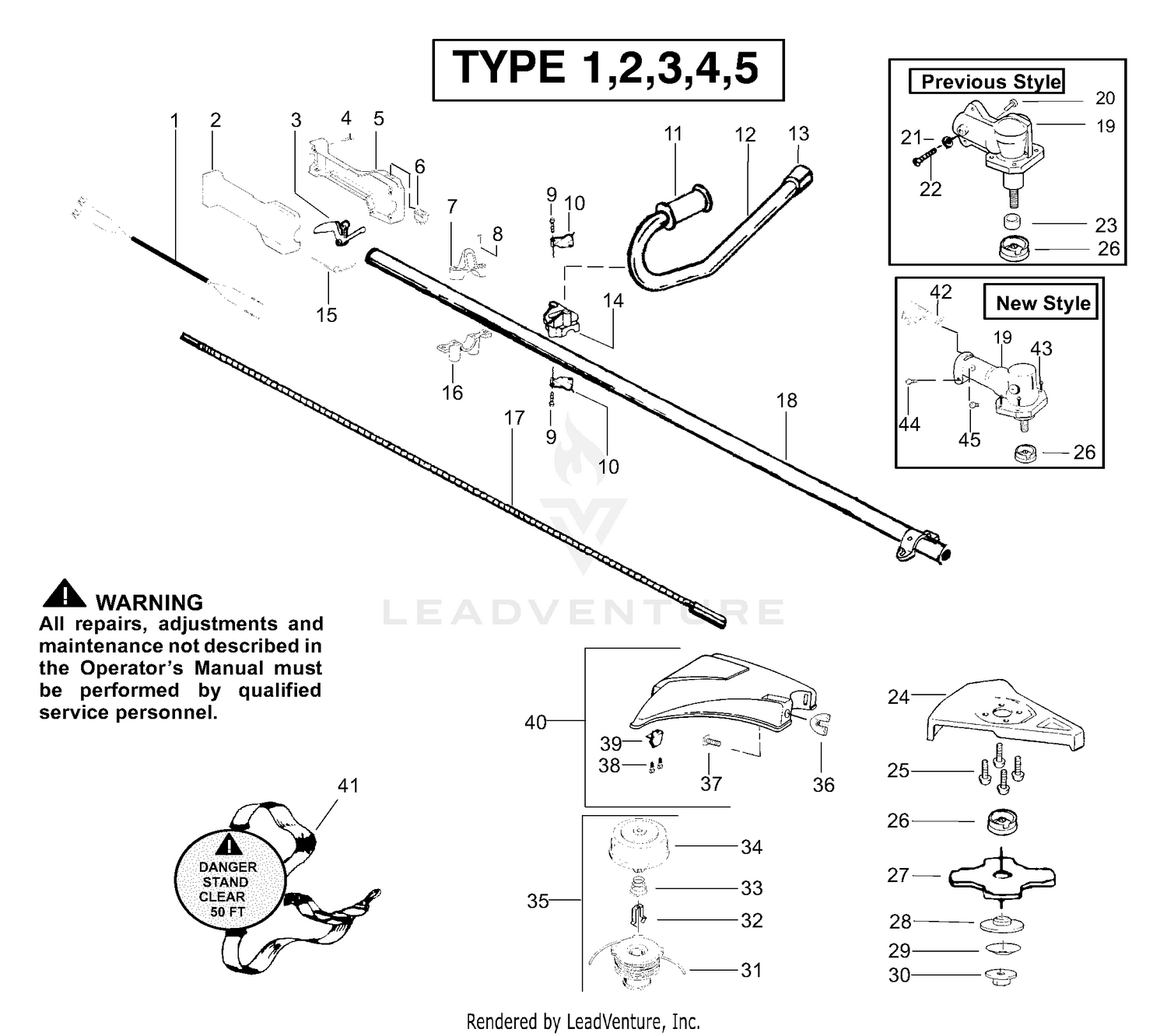

| Ref | Part Number | Description |
|---|
| 1 |
233-46 |
KNOB Price: $24.12 |
| 1 |
530047307 |
Assy-Wire (type 2,3,4,5) Price: $6.99 |
| 2 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 2 |
530036515 |
Hsg.-Throttle Right Type 1 Price: $1.99 |
| 2 |
530053968 |
Hsg.-Throttle Right Type 2,3,4,5 Price: $4.99 |
| 3 |
32151-50 |
DISCONTINUED Price: Call Us |
| 3 |
530036556 |
Lever-Throttle Type 1 Price: $1.99 |
| 3 |
530056334 |
Lever-Throttle Type 2,3,4,5 Price: $4.99 |
| 4 |
530015886 |
Screw Type 2,3,4,5 Price: $1.99 |
| 4 |
530015957 |
Screw Type 1 Price: $1.99 |
| 5 |
530036514 |
Hsg.-Throttle Left Type 1 Price: $1.99 |
| 5 |
530053969 |
Hsg.-Throttle Left Type 2,3,4,5 Price: $5.99 |
| 6 |
530069572 |
Kit-On/Off Switch Price: $4.99 |
| 7 |
530071605 |
KIT HARNESS CLAMP This part replaces 530055392. Price: $2.99 |
| 8 |
530015770 |
Screw Price: Call Us |
| 9 |
530015791 |
Screw Price: $1.99 |
| 10 |
530094572 |
Bracket-Handlebar Price: $1.99 |
| 11 |
530092086 |
Grip-Handlebar Fin Price: $4.99 |
| 12 |
530010723 |
Handlebar w/decal Price: $6.68 |
| 13 |
530092192 |
End Cap-Handlebar Price: $0.99 |
| 14 |
530012207 |
Clamp-Handlebar Price: $8.99 |
| 15 |
530027597 |
Spring-lever return (Type 2,3,4,5) Price: $1.99 |
| 16 |
530055394 |
Assy-Clamp Lower Price: $1.99 |
| 20 |
530015650 |
Screw-Pinch Clamp Price: $1.99 |
| 21 |
530015328 |
Washer Price: $1.99 |
| 22 |
530016140 |
Screw Price: $1.99 |
| 23 |
530019235 |
Sleeve-Seal Price: $1.99 |
| 25 |
530016141 |
Screw Price: $1.99 |
| 27 |
952701611 |
Accy-4 Point Blade Price: $26.19 |
| 29 |
530016240 |
Washer-Belleville Price: $1.99 |
| 30 |
530015793 |
Nut-Flange LH Price: $1.99 |
| 31 |
952711551 |
Accy-Spool w/Line Price: $8.95 |
| 32 |
530401957 |
Retainer-Spool Price: $1.99 |
| 33 |
530053241 |
Spring-Return Price: $1.99 |
| 34 |
530095772 |
Assy-Hub Price: $5.42 |
| 35 |
952711550 |
Accy-Cutting Head Price: $18.95 |
| 36 |
530091373 |
Nut This part replaces 530016118. Price: $1.99 |
| 37 |
530015820 |
Bolt Price: $1.99 |
| 38 |
530015805 |
Screw Price: $1.99 |
| 39 |
530052285 |
Line Limiter Price: $1.99 |
| 41 |
530094417 |
Assy-Shoulder Strap Price: $20.65 |
| 42 |
530095812 |
Bracket-Shield Price: $1.99 |
| 43 |
530016312 |
Screw Price: $1.99 |
| 44 |
530016014 |
Screw Price: $1.99 |
| 45 |
530016371 |
Screw-Align Price: $1.99 |
