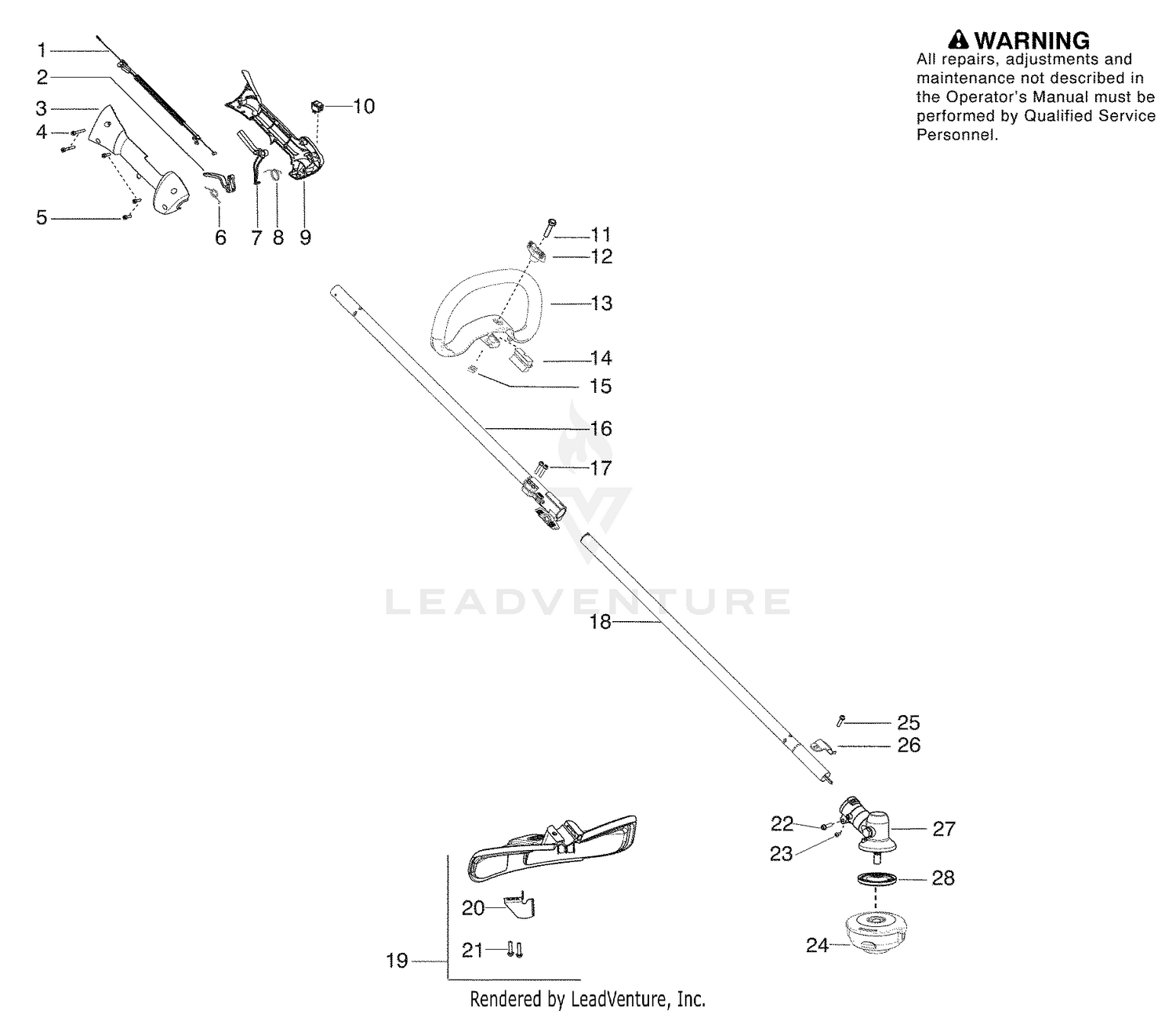

| Ref | Part Number | Description |
|---|
| 1 |
545125301 |
ASSY-CABLE WIRE HARNESS Price: $19.99 |
| 2 |
545066001 |
TRIGGER THROTTLE Price: $5.99 |
| 3 |
545062001 |
HOUSING-THROTTLE RH Price: $8.99 |
| 4 |
530016448 |
SCREW Price: $2.99 |
| 5 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 6 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 7 |
530059804 |
THROTTLE LOCKOUT Price: $4.99 |
| 8 |
545045601 |
SPRING LOCKOUT Price: $4.99 |
| 9 |
545067001 |
HSG THROTTLE LH Price: $9.99 |
| 10 |
545049301 |
KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 12 |
503879001 |
KNOB Price: $3.99 |
| 13 |
545180809 |
ASSY LOOP HANDLE This part replaces 545144303. Price: $34.99 |
| 14 |
503940301 |
SPACER PLASTIC Price: $9.99 |
| 15 |
502197101 |
NUT Price: $0.25 |
| 17 |
503200725 |
SCREW Price: $2.99 |
| 20 |
530052286 |
Limiter-Line Price: $0.68 |
| 21 |
530015814 |
SCREW Price: $0.17 |
| 22 |
530016014 |
SCREW - CARB. ADAPTOR Price: $2.99 |
| 23 |
545003902 |
SCREW Price: $2.99 |
| 24 |
537338310 |
TRIMMER HEAD T25 This part replaces 537338306. Price: $27.99 |
| 25 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 26 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 27 |
530096295 |
ASSY GEARBOX Price: $34.99 |
| 28 |
537234901 |
DRIVE DISC Price: $19.99 |
