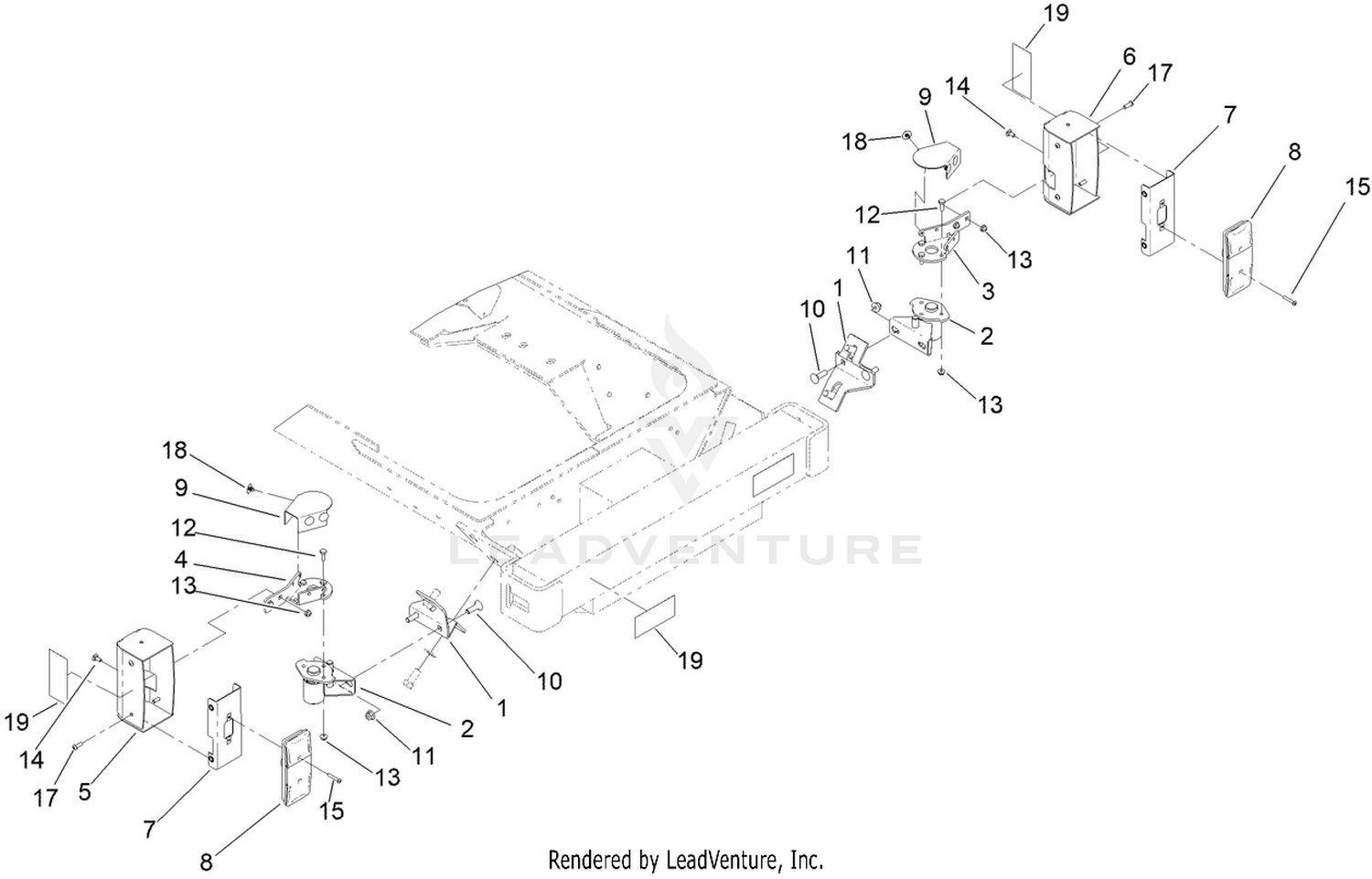

Tail Light Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-6952-03 | ADAPTER, SWIVEL-MOUNT Price: $25.14 |
| 2 | 140-6882 | PIVOT BRACKET ASM Price: $273.29 |
| 3 | 140-6861-03 | MOUNT-LIGHT, RH Price: $24.40 |
| 4 | 140-6862-03 | MOUNT-LIGHT, LH Price: $23.00 |
| 5 | 140-6828-03 | HOUSING-LIGHT, LH Price: $36.20 |
| 6 | 140-6829-03 | HOUSING-LIGHT, RH Price: $36.20 |
| 7 | 140-6835 | INNER MOUNT ASM Price: $48.12 |
| 8 | 139-2071 | LIGHT-REAR TAIL/STOP/TURN Price: $49.03 |
| 9 | 140-6863-03 | COVER-MOUNT Price: $13.81 |
| 10 | 119-4162 | SCREW-CARR Price: $1.73 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 12 | 321-4 | SCREW-HH Price: $0.99 |
| 13 | 104-7201 | NUT-HF Price: $0.69 |
| 14 | 3229-11 | SCREW-CARR Price: $0.99 |
| 15 | 3250-23 | SCREW-PPH Price: $2.49 |
| 17 | 3274-69 | SCREW-HSBH Price: $0.43 |
| 18 | 139-3205 | RIVET-PLASTIC Price: $0.22 |
