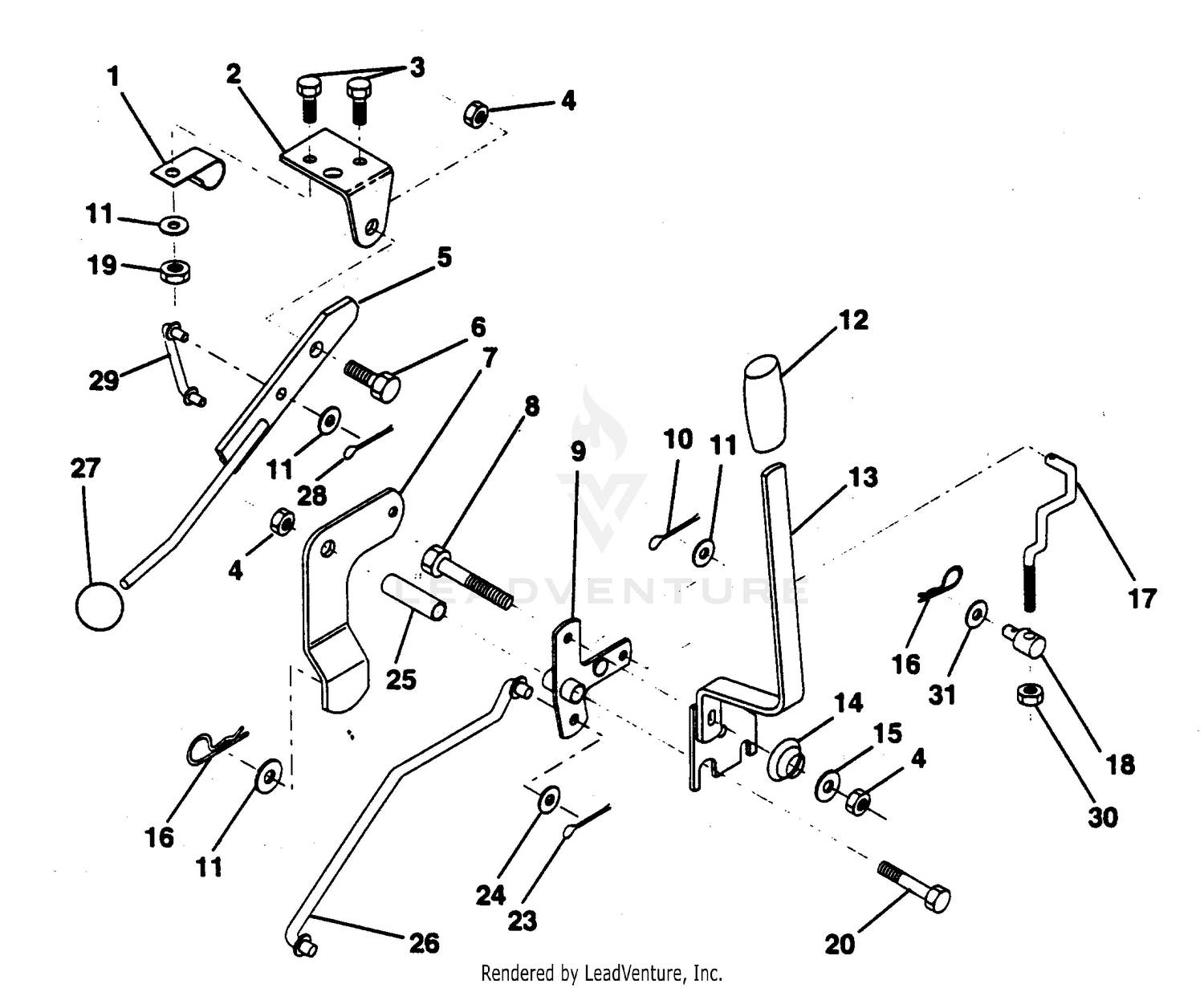

| Ref | Part Number | Description |
|---|
| 1 |
117-0989 |
ROLLER-WIEHLE, PLASTIC Price: $370.54 |
| 1 |
532126470 |
Clip, Insulated (AYP part number) Price: $3.99 |
| 2 |
117-0987 |
SHAFT-ROLLER, FRONT Price: $107.35 |
| 2 |
532122018 |
Bracket, Mower Clutch (AYP part number) Price: $2.38 |
| 3 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 4 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 5 |
532145187 |
Assembly, Clutch Lever (AYP part number) This part replaces 532123417. Price: $5.69 |
| 6 |
532106451 |
Bolt, Shoulder (AYP part number) Price: $2.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532135371 |
Assembly, Mower Clutch Arm (AYP part number) Price: $7.93 |
| 8 |
874760636 |
Bolt, Hex 3/8-16 UNC x 2-1/4 (AYP part number) Price: $2.99 |
| 9 |
532121930 |
Assembly, Bellcrank Lift (AYP part number) Price: $11.99 |
| 10 |
876020412 |
Pin, Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 11 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 12 |
532131861 |
Grip, Handle Price: $3.99 |
| 13 |
532139352 |
Assembly, Lift Handle (AYP part number) Price: $15.88 |
| 14 |
532123496 |
Spring, Compression (AYP part number) Price: $2.99 |
| 15 |
734117201 |
WASHER This part replaces 819131212. Price: $1.99 |
| 16 |
532004921 |
Spring, Retainer (AYP part number) This part replaces 532124961. Price: $3.99 |
| 17 |
532127359 |
Link, Front Lift (AYP part number) Price: $17.99 |
| 18 |
532142028 |
Trunnion, Threaded 3/8-16 (AYP part number) This part replaces 532133205. Price: $2.99 |
| 19 |
873680400 |
Nut, Crownlock 1/4-20 (AYP part number) Price: $2.99 |
| 20 |
874760644 |
Bolt, Fin. Hex 3/8-16 UNC x 2-3/4 (AYP part number) Price: $3.99 |
| 23 |
876020416 |
Pin, Cotter 1/8 x 1 (AYP part number) Price: $3.99 |
| 24 |
532052160 |
Washer (AYP part number) This part replaces 819171612. Price: $3.99 |
| 25 |
532121933 |
Tube, Spacer (AYP part number) Price: $4.28 |
| 26 |
532141470 |
Rod, Mower Lift (AYP part number) Price: $14.65 |
| 27 |
532106932 |
Knob (AYP part number) Price: $2.99 |
| 28 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) This part replaces 876020312. Price: $1.99 |
| 29 |
532131655 |
Link, Mower Clutch (AYP part number) Price: $4.99 |
| 30 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 50 |
114-5430 |
ROLLER REBUILD KIT Price: $99.53 |
