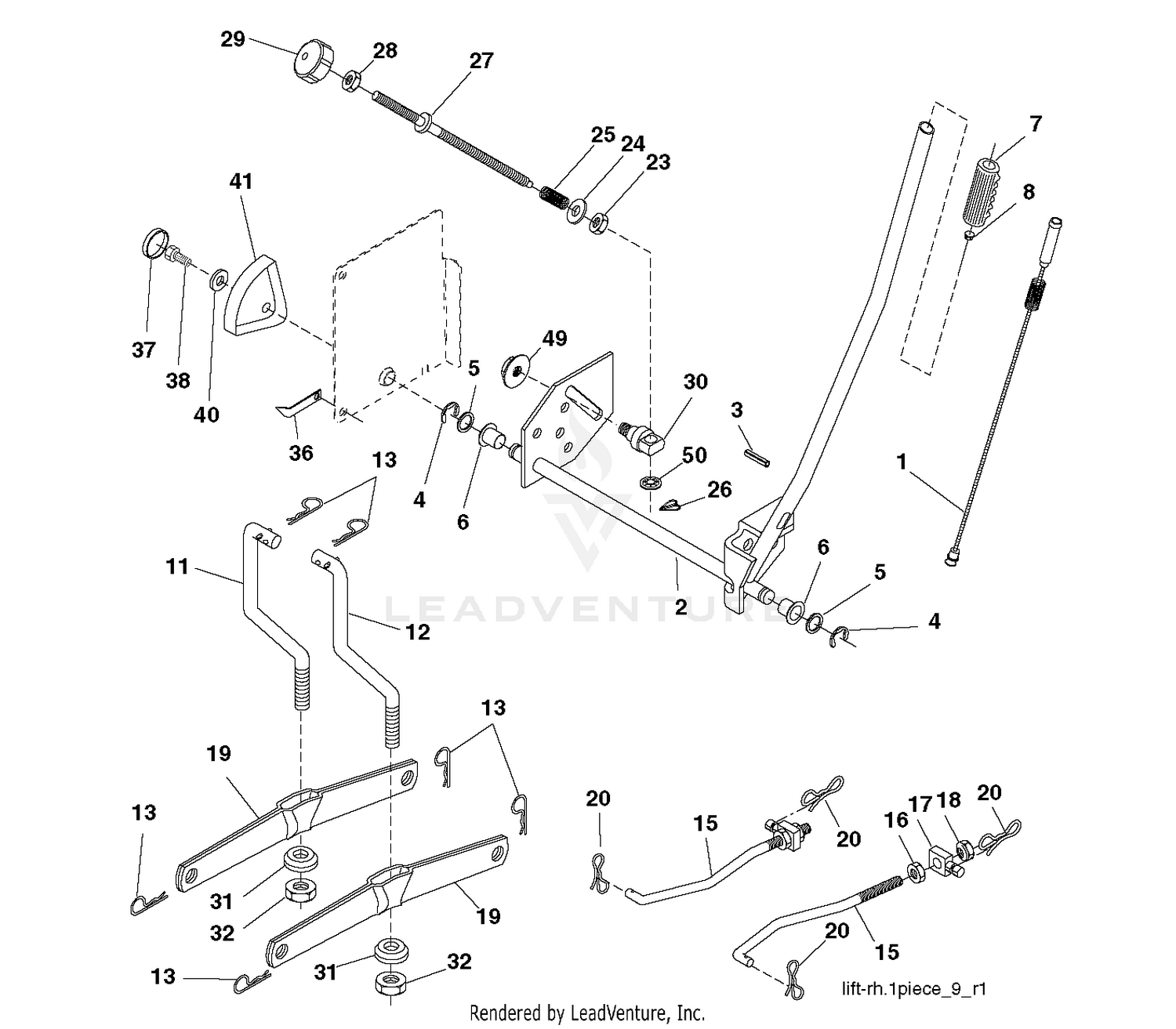

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
532404981 |
PLUNGER.ASM.LIFT.LVR.BLK.17.32 Price: $12.99 |
| 2 |
26-1840 |
PULLEY-IDLER Price: $42.68 |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 3 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 4 |
26-1760 |
PULLEY AND HUB ASM Price: $214.86 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
3231-29 |
SCREW-CARR Price: $0.68 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
26-1860 |
SPACER-IDLER PULLEY Price: $4.75 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
32128-21 |
NUT-HF Price: $0.39 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 10 |
26-1870-03 |
MOUNT-IDLER This part replaces 26-1870. Price: $74.13 |
| 11 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 12 |
26-1850 |
STUD-IDLER Price: $32.97 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 13 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 14 |
21-0890 |
V-BELT Price: $32.90 |
| 15 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
3-8514 |
WASHER-THRUST Price: $1.58 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 17 |
84-2060 |
PULLEY AND HUB ASM This part replaces 26-9100. Price: $276.94 |
| 18 |
253-138 |
SEAL-OIL Price: $10.33 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
49-8320 |
BEARING ASM Price: $104.42 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 20 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 21 |
51-1530-01 |
HINGE BRACKET ASM This part replaces 51-1530. Price: $34.21 |
| 22 |
32128-23 |
NUT-HF Price: $1.51 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 23 |
68-7280 |
DECAL - BLD BOLT TORQUE Price: $11.26 |
| 24 |
66-6380 |
DECAL-DANGER Price: $8.97 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 25 |
532164024 |
SPRING Price: $3.99 |
| 26 |
119-8025 |
DEFLECTOR ASM This part replaces 51-1470. Price: $402.00 |
| 27 |
51-1550 |
SPRING Price: $11.35 |
| 27 |
532164543 |
ROD ADJ LIFT Price: $6.99 |
| 28 |
302-52 |
FITTING-GREASE Price: $1.49 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
26-1820 |
CAPSCREW Price: $37.35 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
26-1990 |
WASHER-BELLEVILLE Price: $16.49 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 31 |
29-5530-03 |
BLADE-STANDARD, 25 INCH, LH This part replaces 29-5530. Price: $40.07 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
26-1690 |
DISCONTINUED Price: Call Us |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 33 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 34 |
84-2020 |
HOUSING-SPINDLE Price: $297.31 |
| 35 |
325-17 |
SCREW-HH Price: $2.90 |
| 36 |
26-1880 |
SPACER-IDLER MOUNT Price: $13.91 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
323-12 |
SCREW-HH Price: $1.14 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 39 |
32128-25 |
NUT-HF Price: $3.19 |
| 40 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 41 |
68-6840 |
SHAFT-ROLLER Price: $64.07 |
| 42 |
68-6710 |
ROLLER Price: $59.98 |
| 43 |
62-4480 |
ROD-ROLLER Price: $18.99 |
| 44 |
57-0280 |
DECAL Price: $12.24 |
| 45 |
322-4 |
SCREW-HH Price: $0.35 |
| 46 |
84-2090 |
SPACER-SPINDLE, RH This part replaces 26-1790. Price: $32.37 |
| 47 |
84-5370 |
SPINDLE This part replaces 26-1680. Price: $259.86 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
