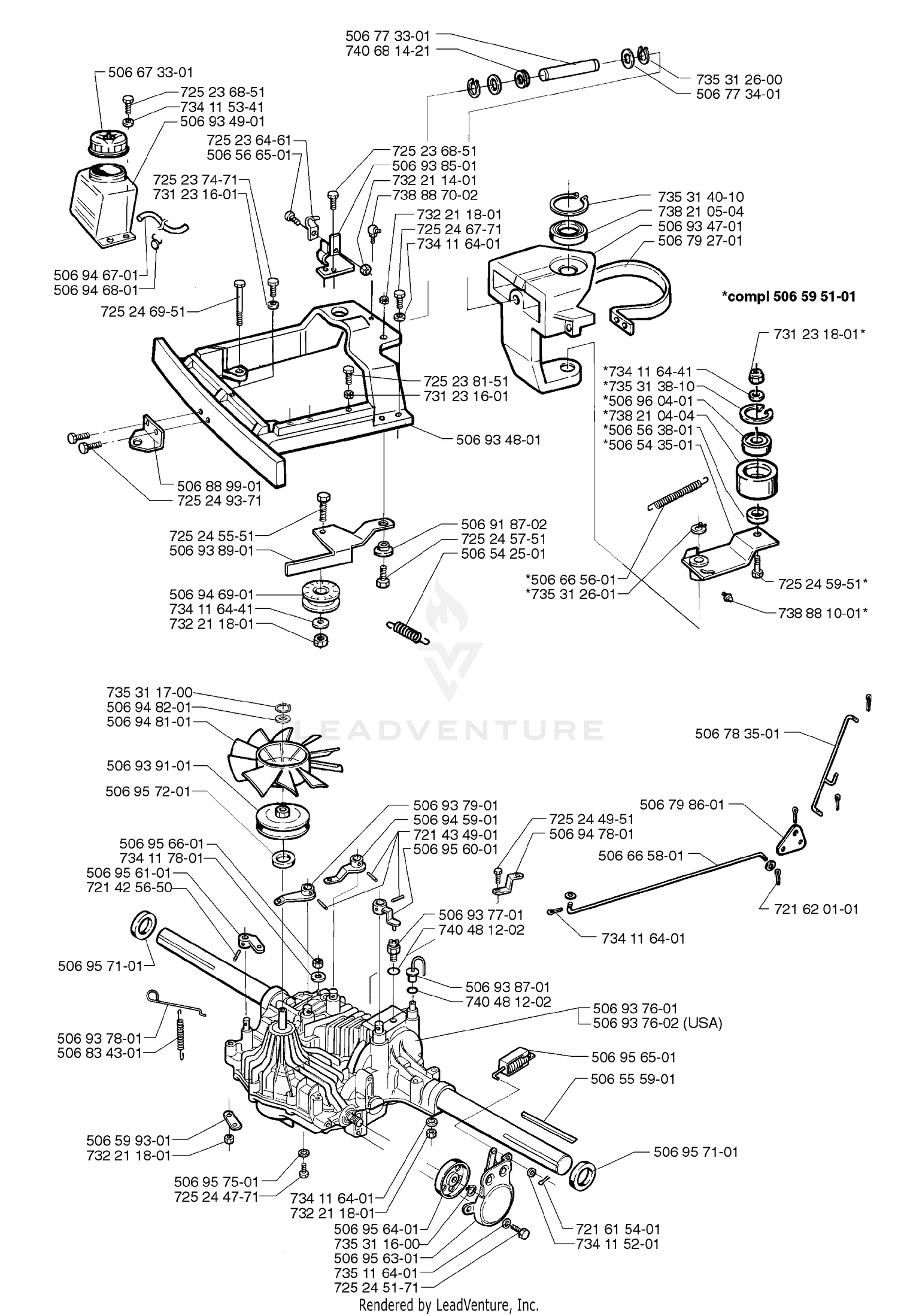

Tank And Steering Assembly
Parts (85)
| Ref | Part Number | Description |
|---|---|---|
| 506542501 | 506542501 | SPRING Price: $6.99 |
| 506543501 | 506543501 | BUSHING Price: $6.99 |
| 506555901 | 506555901 | KEY Price: $3.99 |
| 506563801 | 506563801 | ROLLER Price: $29.99 |
| 506566501 | 506566501 | CLAMP Price: $2.99 |
| 506595101 | 535484401 | TENSIONER This part replaces 506595101. Price: $54.99 |
| 506599301 | 506599301 | CONNECTOR Price: $5.99 |
| 506665601 | 506665601 | SPRING Price: $24.99 |
| 506665801 | 506665801 | ROD Price: $19.99 |
| 506673301 | 506673301 | FUEL CAP Price: $27.99 |
| 506773301 | 506773301 | SHAFT Price: $24.91 |
| 506773401 | 506773401 | WASHER Price: $3.99 |
| 506783501 | 506783501 | Price: $16.32 |
| 506792701 | 506792701 | GUIDE PLATE Price: $82.87 |
| 506798601 | 506798601 | Price: $30.68 |
| 506834301 | 506834301 | SPRING Price: $3.99 |
| 506889901 | 506889901 | DRAW RING Price: $17.99 |
| 506918702 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 506934701 | 506934701 | SPINDLE Price: $299.99 |
| 506934801 | 506934801 | BRACKET Price: $962.57 |
| 506934901 | 506934901 | TANK Price: $71.64 |
| 506937601 | 506937601 | HYDROSTAT Price: $1,215.70 |
| 506937602 | 506937602 | Price: $1,112.35 |
| 506937701 | 506937701 | SWITCH Price: $39.67 |
| 506937801 | 506937801 | Price: $20.29 |
| 506937901 | 506937901 | Price: $82.21 |
| 506938501 | 506938501 | Price: $54.49 |
| 506938701 | 506938701 | PIPE Price: $65.92 |
| 506938901 | 506938901 | LEVER Price: $46.28 |
| 506939101 | 535414946 | PULLEY This part replaces 506939101. Price: $89.99 |
| 506945901 | 506945901 | Price: $80.34 |
| 506946701 | 506946701 | HOSE Price: $21.12 |
| 506946801 | 506946801 | Clip Price: $2.46 |
| 506946901 | 506946901 | PULLEY Price: $34.99 |
| 506947801 | 506947801 | BRACKET Price: $25.38 |
| 506948101 | 506948101 | FAN Price: $14.99 |
| 506948201 | 506948201 | WASHER Price: $11.99 |
| 506956001 | 506956001 | ARM Price: $20.30 |
| 506956101 | 506956101 | ARM Price: $3.15 |
| 506956301 | 506956301 | BRAKE BAND Price: $120.73 |
| 506956401 | 506956401 | BRAKE DRUM Price: $15.20 |
| 506956501 | 506956501 | SPRING Price: $19.19 |
| 506956601 | 506956601 | NUT Price: $0.38 |
| 506957101 | 590621501 | Seals This part replaces 506957101. Price: $32.99 |
| 506957201 | 506957201 | SEAL (24421153507) Price: $4.99 |
| 506957501 | 506957501 | SEAL Price: $3.24 |
| 506960401 | 506960401 | ECCENTRIC Price: $27.99 |
| 721425650 | 721425650 | PIN Price: $2.99 |
| 721434901 | 721434901 | Pin Price: $3.99 |
| 721615401 | 721615401 | Price: $1.68 |
| 721620101 | 721620101 | SPLIT PIN Price: $1.99 |
| 725236461 | 725236461 | SCREW Price: $2.99 |
| 725236851 | 725236851 | Screw Price: $1.32 |
| 725237471 | 725237471 | SCREW M6S 6X30 Price: $4.99 |
| 725238151 | 725238151 | SCREW M6X55 Price: $3.99 |
| 725244771 | 725244771 | Price: $2.20 |
| 725244951 | 725244951 | BOLT - M8X16 Price: $2.99 |
| 725245171 | 725245171 | SCREW Price: $2.08 |
| 725245551 | 725245551 | SCREW Price: $3.99 |
| 725245751 | 725245751 | SCREW Price: $4.99 |
| 725245951 | 725245951 | SCREW Price: $4.99 |
| 725246771 | 725246771 | Price: $3.26 |
| 725246951 | 725246951 | Screw Price: $3.99 |
| 725249371 | 725249371 | Screw M10x25 Price: $1.82 |
| 731231601 | 731231601 | NUT Price: $2.99 |
| 731231801 | 731231801 | NUT Price: $3.99 |
| 732211401 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 732211801 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 734115341 | 734115341 | Washer Price: $1.20 |
| 734116401 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 734116441 | 734116441 | SPACER Price: $3.99 |
| 734117801 | 596040101 | Washers This part replaces 734117801. Price: $2.99 |
| 735116401 | 735116401 | SPRING WASHER Price: $3.99 |
| 735311600 | 735311600 | Price: $1.02 |
| 735311700 | 735311700 | RETAINING RING SGA 15 Price: $2.99 |
| 735312600 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 735312601 | 735312600 | RETAINING RING SGA 25 This part replaces 735312601. Price: $2.99 |
| 735313810 | 735313810 | RETAINING RING Price: $2.99 |
| 735314010 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 738210404 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 738210504 | 738210504 | Ball Bearing 6005-2rs Price: $28.99 |
| 738881001 | 738881001 | GREASE NIPPLE Price: $6.99 |
| 738887002 | 738887002 | Nipple Price: $5.46 |
| 740481202 | 740481202 | Price: $2.80 |
| 740681421 | 740681421 | V-RING Price: $3.99 |
