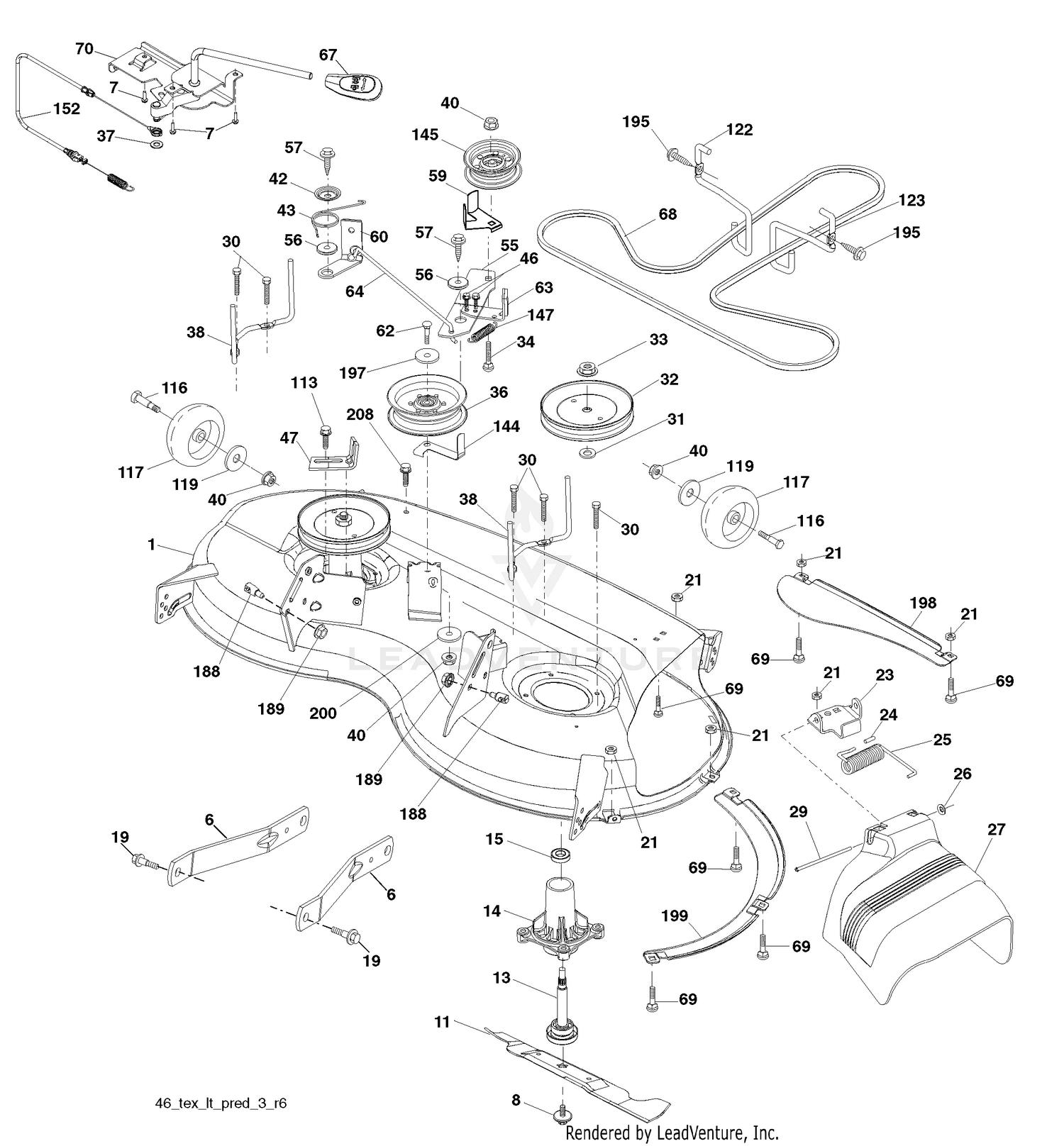

| Ref | Part Number | Description |
|---|
| 1 |
405049 |
Mower Housing Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
405506 |
Cover Mandrel RH Price: Call Us |
| 3 |
405507 |
Cover Mandrel LH Price: Call Us |
| 4 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 5 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 6 |
195186 |
Arm Suspension Price: Call Us |
| 6 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 7 |
191611 |
Screw 10 x 3/4 Single Hex Price: Call Us |
| 7 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 8 |
193003 |
Bolt/Washer asm 7/16-20 unf Price: Call Us |
| 8 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 9 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 10 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 11 |
405380 |
Blade Mower Price: Call Us |
| 12 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 13 |
192872 |
Shaft Assembly, Mandrel Price: Call Us |
| 13 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
105-0138-03 |
STABILIZER Price: $159.95 |
| 19 |
196539 |
Bolt, Shoulder Price: Call Us |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 21 |
33106-035 |
SCREW-HHF Price: $8.35 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
100-3868-03 |
BRACKET-TIPPER Price: $64.55 |
| 23 |
192557 |
Bracket, Deflector Price: Call Us |
| 23 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
75-5390 |
ROLLER Price: $56.69 |
| 25 |
197026 |
Spring, Torsion, Deflector Price: Call Us |
| 25 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
405357 |
Shield, Deflector Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol Rolling Wsh Hd Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
195945 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 36 |
196106 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 38 |
199189 |
Keeper Belt LH Mandrel Price: Call Us |
| 40 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 42 |
198410 |
Spring Torsion Brake Price: Call Us |
| 43 |
197256 |
Spring Torsion Retainer Price: Call Us |
| 46 |
137729 |
Screw Price: Call Us |
| 47 |
197250 |
Bracket Clutch Cable Price: Call Us |
| 55 |
197249 |
Arm, Idler Price: Call Us |
| 56 |
199092 |
Spacer, Retainer Price: Call Us |
| 57 |
17000616 |
Screw Hexwsh Thd 3/8-16 x 1 Price: Call Us |
| 59 |
141043 |
Guard, Tuv Idler (94) Price: Call Us |
| 60 |
400132 |
Arm Brake Mower LH Price: Call Us |
| 62 |
74520636 |
Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5 Price: Call Us |
| 63 |
199478 |
Arm Brake Mower Price: Call Us |
| 64 |
405139 |
Linkage Brake Price: Call Us |
| 67 |
198398X421 |
Handle, Clutch Cable Price: Call Us |
| 68 |
405143 |
V-Belt Price: Call Us |
| 69 |
72140505 |
Bolt Price: Call Us |
| 70 |
199779 |
Clutch Asm. Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 unc Price: Call Us |
| 119 |
19121414 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 122 |
197258 |
Keeper Belt Eng. LH Price: Call Us |
| 123 |
197259 |
Keeper Belt Eng. RH Price: Call Us |
| 144 |
199204 |
Keeper Belt Price: Call Us |
| 145 |
177968 |
Pulley Idler Price: Call Us |
| 147 |
401872 |
Spring Return Price: Call Us |
| 149 |
403187 |
Retainer Spring Price: Call Us |
| 152 |
408714 |
Cable Clutch Manual w/Spr. Price: Call Us |
| 188 |
195161 |
Stud Fastener Price: Call Us |
| 189 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 195 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 197 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 198 |
403149 |
Baffle Center Front Price: Call Us |
| 199 |
403150 |
Baffle Front RH Price: Call Us |
| 200 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
