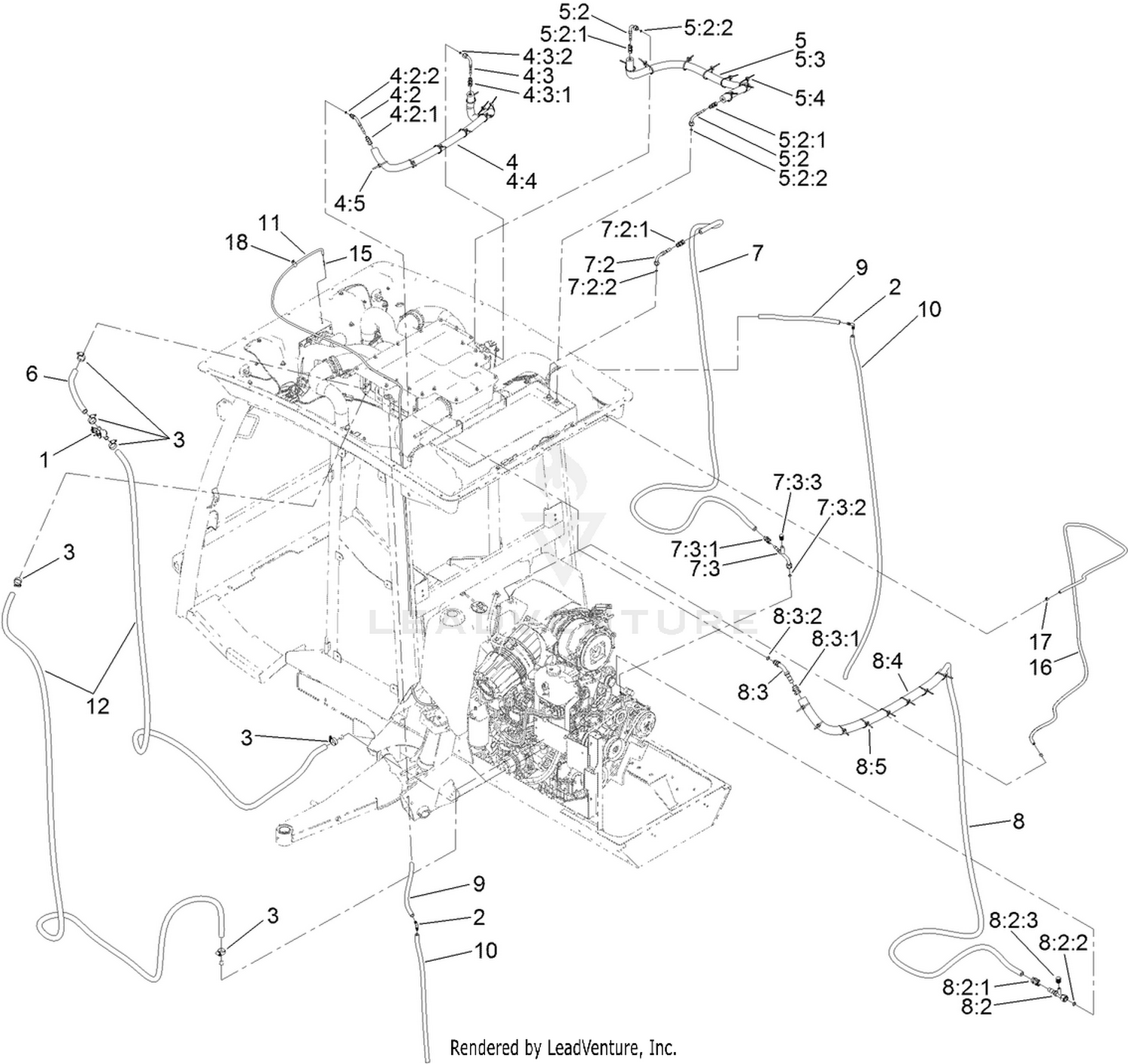

Engine Hose Routing Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-4947 | VALVE-HEATER Price: $111.55 |
| 2 | 130-0578 | FITTING-BARB, 90 DEG Price: $2.36 |
| 3 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 4 | 125-9702 | HOSE ASM Price: $236.45 |
| 5 | 125-9703 | HOSE ASM Price: $170.79 |
| 6 | 125-9706 | HOSE-HEATER Price: $8.92 |
| 7 | 125-9861 | HOSE ASM Price: $433.23 |
| 8 | 125-9862 | HOSE ASM Price: $565.67 |
| 9 | 125-9865 | HOSE-DRAIN Price: $9.63 |
| 10 | 125-9866 | HOSE-DRAIN Price: $37.15 |
| 11 | 127-9901 | HOSE-WASHER FLUID Price: $50.08 |
| 12 | 125-9864 | HOSE-HEATER Price: $93.50 |
| 15 | 127-9905 | FITTING-HOSE, BARB Price: $6.73 |
| 16 | 130-5813 | HOSE-FUEL Price: $51.95 |
| 17 | 2412-98 | CLAMP-HOSE Price: $1.39 |
