| Ref | Part Number | Description |
|---|
| 1 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 2 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 3 |
94-1754 |
SWITCH & ROLLER BRACKET ASM Price: $246.41 |
| 4 |
93-6825 |
PLATE - PUMP *B Price: $74.55 |
| 5 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 6 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 7 |
3217-29 |
NUT-HEX Price: $0.25 |
| 8 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 9 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 10 |
3220-2 |
NUT-JAM Price: $0.50 |
| 11 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 12 |
322-17 |
SCREW-HH Price: $2.62 |
| 13 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 14 |
321-6 |
SCREW-HH Price: $0.25 |
| 15 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 16 |
104-3938-03 |
TRACTION PEDAL ASM This part replaces 83-8270. Price: $83.32 |
| 17 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 18 |
93-6936 |
DISCONTINUED Price: Call Us |
| 19 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 20 |
93-6859 |
SPACER Price: $9.48 |
| 21 |
2411-52 |
BEARING-ROD END, RH Price: $35.54 |
| 22 |
322-9 |
SCREW-HH Price: $3.09 |
| 23 |
2411-53 |
BEARING-ROD END, LH Price: $35.54 |
| 24 |
3220-20 |
NUT-JAM Price: $0.92 |
| 25 |
83-8760 |
DISCONTINUED Price: Call Us |
| 27 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 28 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 29 |
74-6110 |
STOP-TRACTION Price: $21.73 |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
251-259 |
BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 32 |
3210-7 |
SCREW-HH Price: $0.61 |
| 33 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 34 |
93-6824 |
DISCONTINUED Price: Call Us |
| 35 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 36 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 37 |
323-7 |
SCREW-HH Price: $0.65 |
| 38 |
87-8640 |
WASHER-FLAT Price: $0.68 |
| 39 |
93-6826 |
DISCONTINUED Price: Call Us |
| 40 |
323-5 |
SCREW-HH Price: $0.41 |
| 41 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 43 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 44 |
32128-44 |
NUT Price: $2.69 |
| 46 |
322-6 |
SCREW-HH Price: $0.45 |
| 47 |
3217-6 |
NUT-HEX Price: $1.19 |

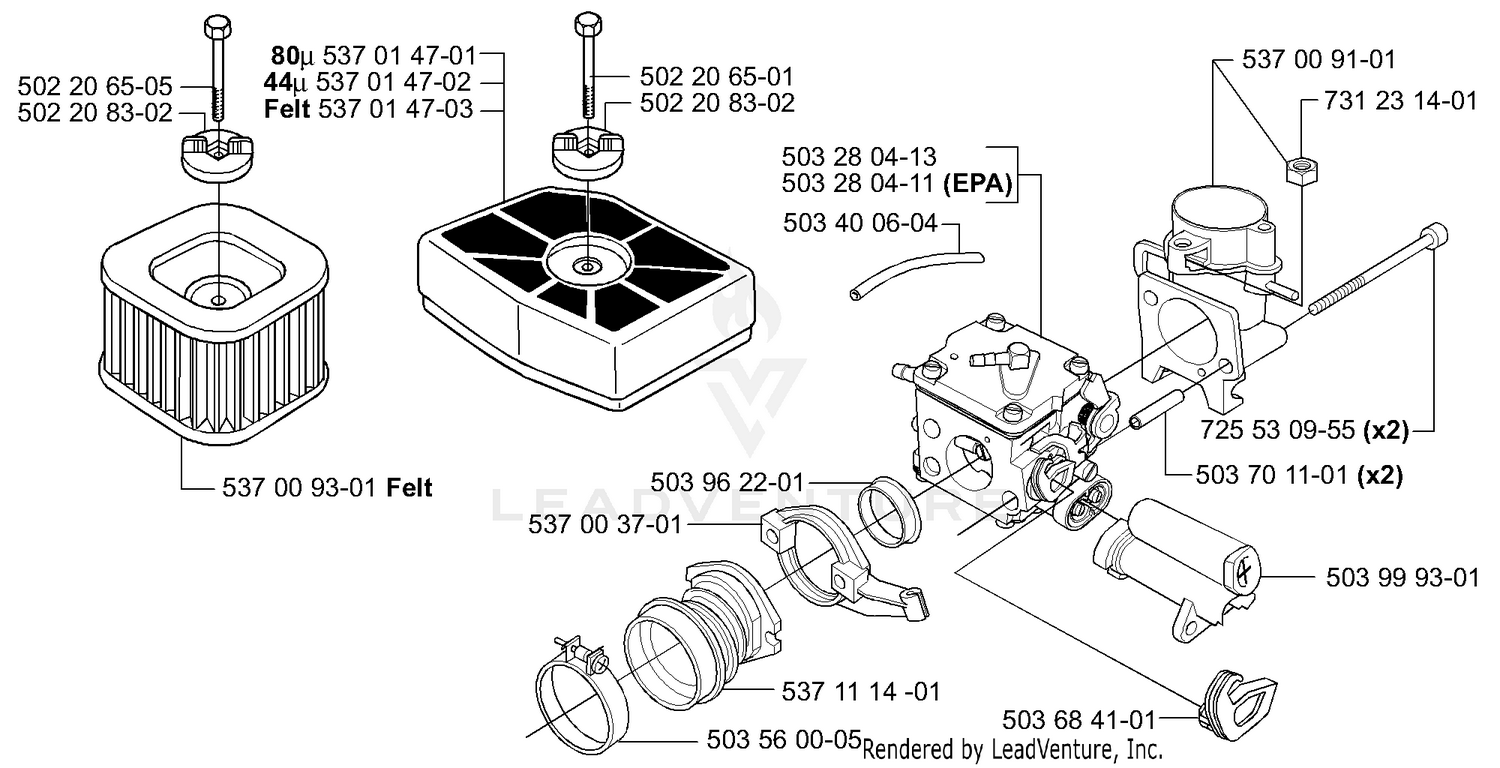

| 502206501 |
502206501 |
SCREW 25MM THREAD LENGTH Price: $2.99 |
| 502206505 |
502206505 |
SCREW Price: $3.99 |
| 502208302 |
502208302 |
KNOB Price: $5.99 |
| 503280411 |
531440101 |
CARBURETOR WJ-116A This part replaces 503280411. Price: $169.99 |
| 503280413 |
501355401 |
CARBURETOR This part replaces 503280413. Price: $94.99 |
| 503400604 |
503400604 |
HOSE Price: $6.99 |
| 503560005 |
588775502 |
HOSE CLAMP This part replaces 503560005. Price: $2.99 |
| 503701101 |
503701101 |
PIPE Price: $3.99 |
| 503962201 |
503962201 |
SLEEVE Price: $4.99 |
| 503999301 |
503999301 |
SLEEVE Price: $7.99 |
| 537003701 |
537003701 |
FLANGE Price: $7.99 |
| 537009101 |
537009101 |
FILTER HOLDER Price: $8.99 |
| 537009301 |
537009301 |
AIR FILTER - FELT Price: $34.99 |
| 537014701 |
537014701 |
AIR FILTER Price: $22.99 |
| 537014702 |
537014702 |
AIR FILTER Price: $22.99 |
| 537014703 |
537014703 |
AIR FILTER Price: $19.99 |
| 537111401 |
537111402 |
PIPE This part replaces 537111401. Price: $44.99 |
| 725530955 |
725530955 |
SCREW Price: $3.99 |
| 731231401 |
731231401 |
NUT Price: $1.99 |
