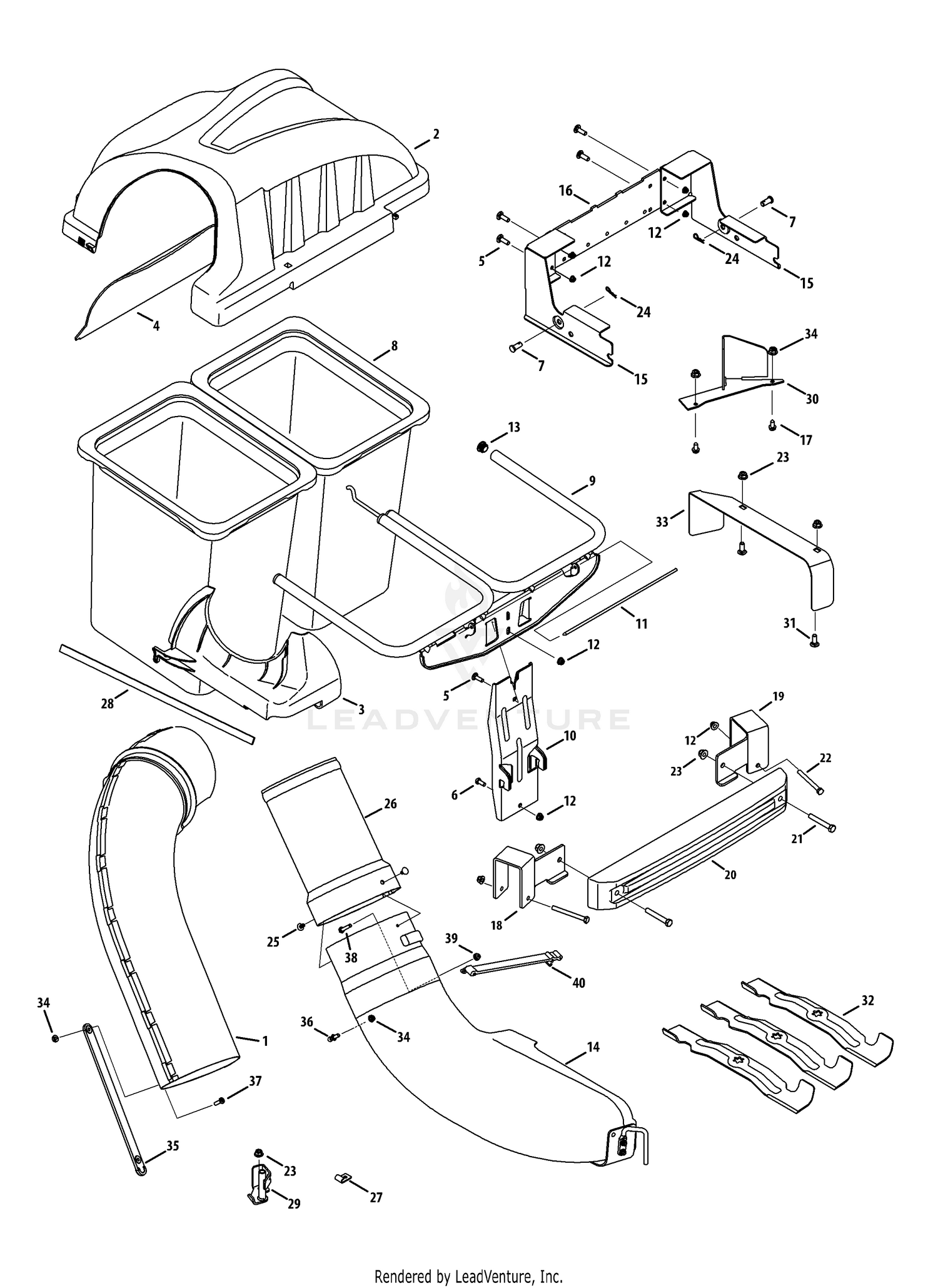

| Ref | Part Number | Description |
|---|
| 1 |
931-04295B |
UPPER CHUTE ASSEMBLY This part replaces 931-04295A. Price: $128.08 |
| 2 |
931-04292 |
Twin Bagger Cover Assembly Price: $129.14 |
| 3 |
731-06497 |
Upper Chute Support Price: $31.91 |
| 4 |
731-06504 |
Bagger Cover Screen Price: $15.49 |
| 5 |
710-0276 |
Carriage Screw, 5/16-18 x 1.00" Price: $3.68 |
| 6 |
710-0376 |
Hex Head Screw, 5/16-18 x .75" Price: $3.66 |
| 7 |
711-0310 |
Clevis Pin This part replaces 911-0310. Price: $9.46 |
| 8 |
964-05104 |
GRASSBAG ASSEMBLY W/ HARD BOTTOM (STD) This part replaces 964-04090A. Price: $83.90 |
| 9 |
683-04461B-0637 |
DOUBLE BAGGER SUPPORT (POWDER BLACK) This part replaces 683-04461A-0637. Price: $182.57 |
| 10 |
683-04519B-0637 |
Vertical Support Bracket This part replaces 683-04519A-0637. Price: $125.78 |
| 11 |
711-04988 |
Cover Hinge Pin Price: $11.08 |
| 12 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 13 |
735-0246A |
End Plug Price: $5.01 |
| 14 |
631-04300C |
Discharge Chute Elbow Price: $248.80 |
| 15 |
689-00204A |
RZT Hitch Bracket Kit (RH & LH) Price: $168.03 |
| 16 |
783-06168-0637 |
Universal Cross Bracket Price: $123.52 |
| 17 |
710-04666 |
Hex Head Screw, 1/4 - 20 x .75 Price: $6.04 |
| 18 |
703-09193-0637 |
Weight Mount Bracket, RH Price: $37.25 |
| 19 |
703-09197-0637 |
Weight Mount Bracket, LH Price: $37.25 |
| 20 |
719-04271A |
Bagger Weight Price: $221.36 |
| 21 |
710-0859 |
Hex Head Screw, 3/8 - 16 x 2.50 Price: $5.99 |
| 22 |
710-3056 |
Hex Head Screw, 5/16-18 x 3.25 Price: $8.82 |
| 23 |
712-04065 |
Flange Lock Nut, 3/8 - 16 Price: $3.68 |
| 24 |
714-04023 |
Pin, Click, .092 x 1.64 Lg This part replaces 914-04023. Price: $3.90 |
| 26 |
731-06611 |
Bagger Chute Adapter, 8 x 13.5 Price: $41.17 |
| 27 |
96606 |
Retainer Hook Bracket Price: $6.71 |
| 28 |
721-04388 |
Adhesive Strip Price: $6.17 |
| 29 |
683-0617A-0637 |
Chute Stop Bracket Price: $60.14 |
| 30 |
703-05783-0637 |
Deck Baffle, 50" Price: $76.79 |
| 31 |
710-3168 |
Carriage Bolt, 3/8-16 x 1.00 Price: $3.61 |
| 32 |
742-04056C-0637 |
Bagging Blade, 17.90 Lg. Star Not Available Price: |
| 33 |
783-06694A-0637 |
Chute Discharge Plate This part replaces 783-06694-0637. Price: $38.56 |
| 34 |
912-3027 |
Flange Lock Nut, 1/4-20 Price: $3.85 |
| 35 |
723-04009A |
Chute Strap Price: $10.57 |
| 36 |
911-04069 |
Grass-catcher Pin Price: $7.81 |
| 37 |
710-0924 |
Machine Screw, 1/4-20 Price: $4.02 |
| 38 |
710-3015 |
Hex Head Screw, 1/4-20 x .75 Price: $3.65 |
| 39 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
