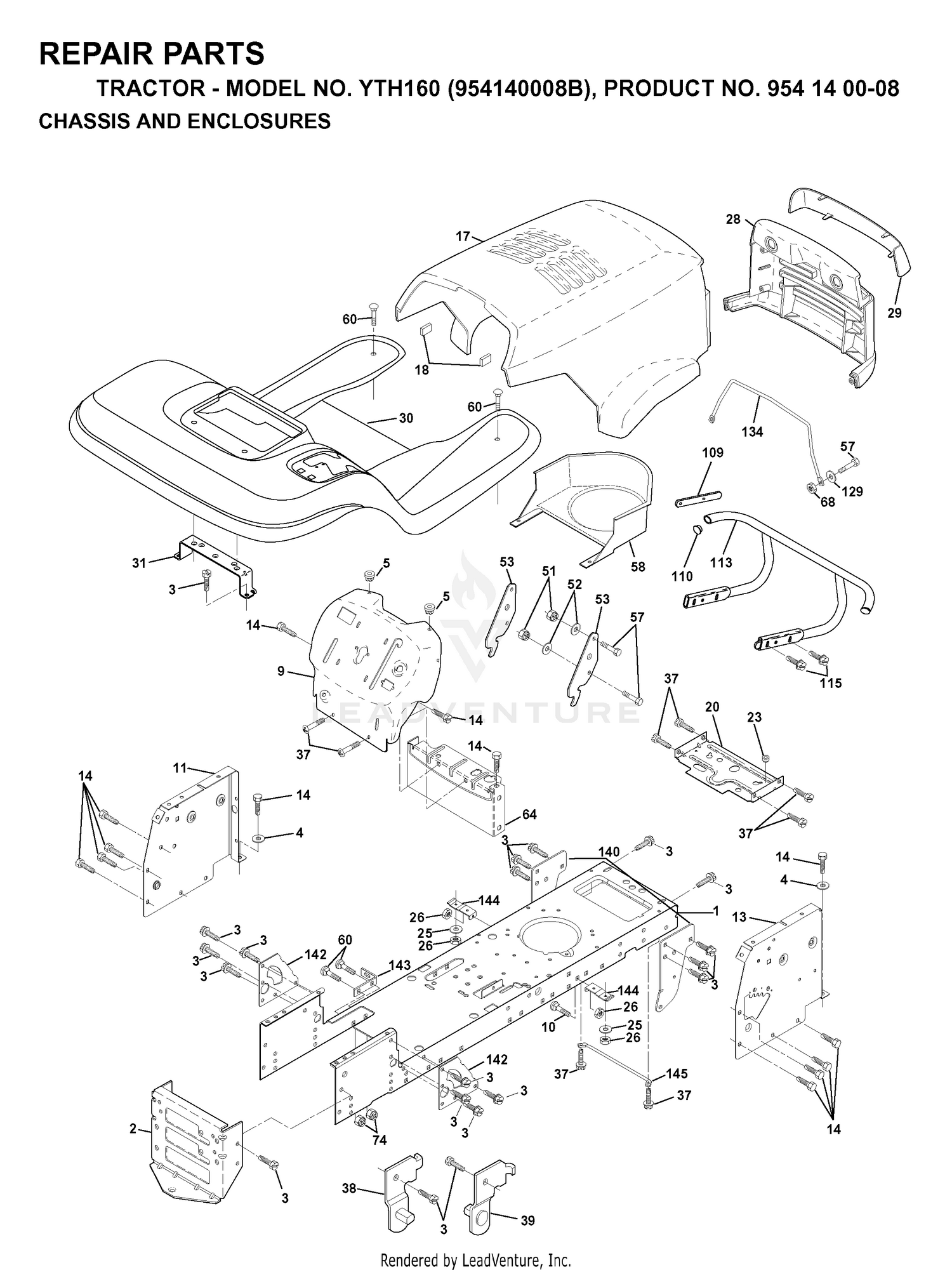

| Ref | Part Number | Description |
|---|
| 1 |
532160392 |
CHASSIS Price: $129.99 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $44.99 |
| 2 |
93-7977 |
SEAL Price: $74.14 |
| 3 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 3 |
93-7978 |
ROD-PULL Price: $171.95 |
| 4 |
819131216 |
Washer 13/32 X 3/4 X 16 Ga. Price: $2.99 |
| 4 |
93-7983 |
PIN-CLEVIS Price: $3.19 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 5 |
93-7980 |
LINK Price: $13.85 |
| 6 |
93-7979 |
PIN-HITCH Price: $1.70 |
| 7 |
93-7986 |
DISC-STATIONARY Price: $26.25 |
| 8 |
104-4278 |
DISC-ROTATING Price: $55.70 |
| 9 |
532154794 |
DASH/SILKSCREENED This part replaces 532156490. Price: $21.07 |
| 9 |
93-7976 |
RING-RETAINING Price: $12.48 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
93-7984 |
GASKET Price: $20.21 |
| 11 |
104-4280 |
ACTUATOR-ROTATING Price: $332.95 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
93-7987 |
SPRING-EXTENSION Price: $9.47 |
| 13 |
532153913 |
PANEL Price: $7.99 |
| 13 |
93-7985 |
BALL Price: $9.39 |
| 14 |
353-990 |
PLUG ASM Price: $10.01 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 17 |
532156051 |
HOOD - LT/YT Price: $549.99 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532149776. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA Price: $24.99 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532156489. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532139886 |
BRACKET LH PIVOT Price: $6.99 |
| 39 |
532139887 |
BRACKET RH PIVOT Price: $6.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 68 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 109 |
532170310 |
BUMPER BRACKET This part replaces 532141461. Price: $4.99 |
| 115 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 134 |
532160219 |
ROD SUPPORT HOOD LT/PL HUS. Price: $7.99 |
| 140 |
532158418 |
BRACKET SUSPENSION FRONT Price: $7.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532156095. Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST This part replaces 532154207. Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
