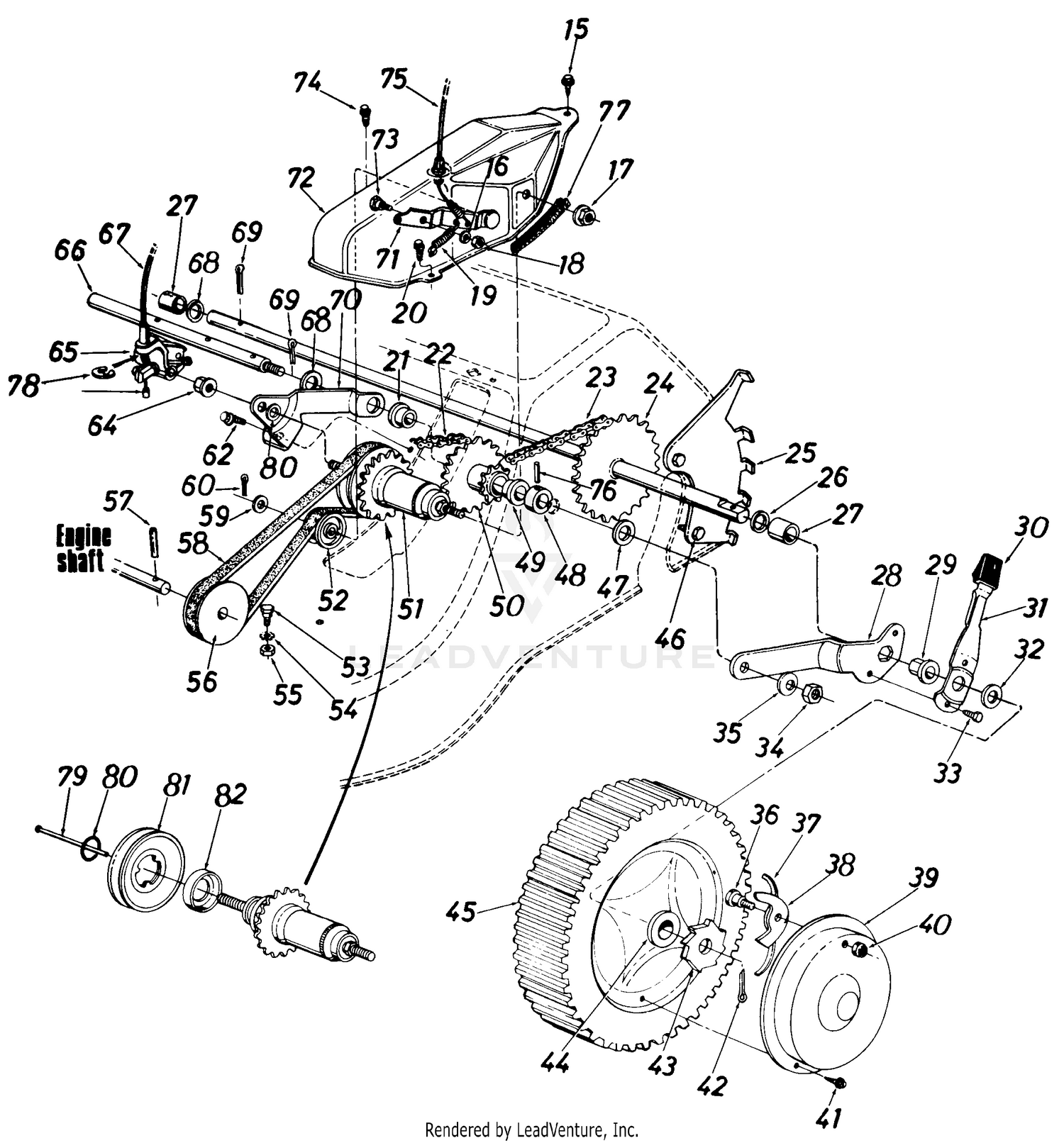

| Ref | Part Number | Description |
|---|
| 15 |
710-0456 |
HEX SCREW #10-16 x 0.500 Not Available Price: |
| 16 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 18 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 19 |
732-0357A |
Extension Spring .33 OD x 1.12 Lg. This part replaces 732-0357. Price: $3.94 |
| 20 |
710-0599 |
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 21 |
741-0248 |
Flg. Brg. .506" I.D.-Plastic Price: $7.99 |
| 24 |
13414 |
SHAFT ASSEMBLY Not Available Price: |
| 25 |
16097 |
INDEX PLATE ASS'Y. L.H. Not Available Price: |
| 26 |
736-0326 |
Fl-Wash. .510" I.D. x 1.0" O.D. Price: $3.89 |
| 27 |
750-0190 |
SPACER Not Available Price: |
| 28 |
16099 |
BRACKET-PI Not Available Price: |
| 29 |
741-0324A |
Flge Bearing .506 ID x .590 Lg This part replaces 741-0324. Price: $7.07 |
| 30 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 31 |
732-0467 |
LEVER-SPRING Not Available Price: |
| 32 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. Price: $3.90 |
| 33 |
710-0352 |
Hex B-Tap Scr. 1/4 x .38" Price: $4.05 |
| 34 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 35 |
736-0105 |
Bell-Wash. .400" I.D. x .88" O.D. Price: $3.96 |
| 36 |
738-0137 |
BOLT, SHOULDER, 1/4-20 x 2.65 LG Not Available Price: |
| 37 |
10622B |
Spring - Nylon Not Available This part replaces 10622. Price: |
| 38 |
948-0188B |
PAWL - (LH) Not Available This part replaces 748-0188. Price: |
| 39 |
10647 |
HUB CAP Not Available Price: |
| 40 |
712-0324 |
Hex Ins. L-Nut 1/4-20 Thd. Price: $3.38 |
| 41 |
710-0748 |
SCREW #12-14 x .500 Not Available Price: |
| 42 |
714-0115 |
Cotter Pin 118" Dia. x 1.00" Lg. Price: $3.48 |
| 43 |
748-0187 |
RACHET-WHEEL Not Available Price: |
| 44 |
941-0180 |
BALL BEARING Not Available This part replaces 741-0180. Price: |
| 45 |
734-1026 |
ASS'Y. COMP. (GEAR TREAD) Not Available Price: |
| 46 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 47 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 48 |
750-0387 |
SPACER Not Available Price: |
| 49 |
741-0248 |
Flg. Brg. .506" I.D. Plastic Price: $7.99 |
| 50 |
713-0359 |
SPROCKET ASSEMBLY-9T & Not Available Price: |
| 51 |
717-0825 |
HUB-W/18T SPROCKET Not Available Price: |
| 52 |
756-0360 |
FLAT IDLER PULLEY Not Available Price: |
| 53 |
738-0140 |
Shld. Bolt .437" Dia. x .180 Price: $4.93 |
| 54 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 55 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 56 |
756-0462 |
ENGINE PULLEY-1/2 V Not Available Price: |
| 57 |
715-0144 |
SPIROL PIN Not Available Price: |
| 58 |
754-0292 |
V-BELT Not Available Price: |
| 59 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. Price: $3.90 |
| 60 |
714-0115 |
Cotter Pin 1/18" Dia. x 1.00" Lg.* Price: $3.48 |
| 62 |
710-0726 |
Hex Wash. Hd. Tap Scr. 5/16-18 x .75" Lg. Price: $3.82 |
| 65 |
717-0824 |
Shimano 3-Sp. Shift Bell Crank Price: Call Us |
| 66 |
738-0471 |
SHAFT-PULLEY Not Available Price: |
| 67 |
717-0823 |
SHIFT CABLE Not Available Price: |
| 68 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. Price: $3.90 |
| 69 |
714-0111 |
Cotter Pin 3132" Dia. x 1.00" Lg . Price: $4.20 |
| 71 |
13415 |
BRACKET AS Not Available Price: |
| 73 |
938-0255 |
SHOULDER SCREW This part replaces 738-0255. Price: $4.53 |
| 74 |
710-0642 |
Hex TT-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 75 |
746-0466 |
CABLE-53" LONG Not Available Price: |
| 76 |
715-0120 |
Spring Pin Spir. 3116" Dia. x 1.0" Lg. Price: $9.14 |
| 77 |
731-0511 |
Trim Strip Price: $3.29 |
